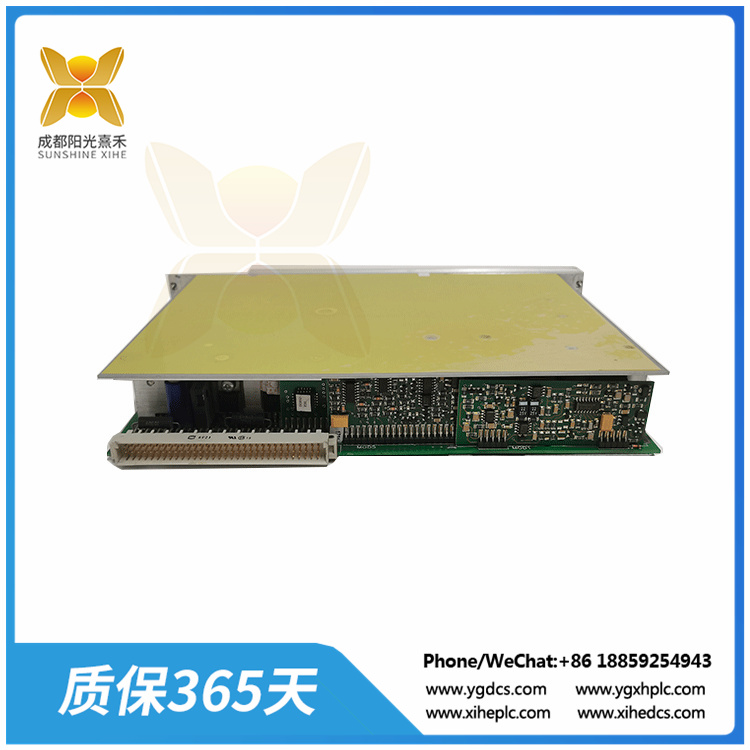

500SCM01 1MRB200059/C 1MRB15004R0001 |星形耦合器模块

　　型号:500SCM01 1MRB200059/C 1MRB15004R0001

　　分类:星型耦合器模块

　　额定电流:1A

　　额定电压:230V AC

　　控制方式:开环控制

　　过载保护、欠压保护、过压保护、短路保护等

　　通讯接口RS232、RS485

　　尺寸:100 × 50 × 40毫米

　　重量:0.5公斤

　　500SCM01 1MRB200059/C 1MRB15004R0001星形耦合器模块是光纤通信设备的重要部件，具有特定的功能和结构特点。下面是星形耦合器模块的详细说明:

　　定义:

　　500SCM01 1MRB200059/C 1MRB15004R0001星形耦合器是一种n×m型耦合器，其作用是将n根光纤输入的光功率合并后均匀分配到m根光纤上。这里n和m不一定相等，所以星型耦合器常被用作多端分配器。

　　结构与制造:

　　星形耦合器可采用双锥熔接成形技术制造，尤其适用于多模光纤系统。星形耦合器可以由几根独立的多模光纤相互合并并熔化拉伸制成。

　　对于单模光纤系统，星形耦合器可以通过级联l×2耦合器制成。

　　类型:

　　传输型星形耦合器:当电源输入到耦合器一侧的任何端口时，电源将被传输到另一侧的所有端口。理想情况下，耦合器的相同侧端口彼此隔离。

　　反射星形耦合器:将光从任何端口耦合到耦合器的所有端口。

　　特点:

　　无源器件:500SCM01 1MRB200059/C 1MRB15004R0001星形耦合器通常是无源的，这意味着它们不需要外部电源来工作。与有源器件相比，无源器件具有高可靠性和低成本的特点。

　　灵活性:通过星形耦合器，光源的输出光功率可均匀分布到所有接收站点，为分布式网络提供灵活性。

　　500SCM01 1MRB200059/C 1MRB15004R0001 | Star coupler module

　　Model: 500SCM01 1MRB200059/C 1MRB15004R0001

　　Category: Star coupler module

　　Rated current: 1A

　　Rated voltage: 230V AC

　　Control mode: open loop control

　　Protection function Overload protection, undervoltage protection, overvoltage protection, short circuit protection, etc

　　Communication ports RS232, RS485

　　Dimensions: 100 x 50 x 40 mm

　　Weight: 0.5kg

　　500SCM01 1MRB200059/C 1MRB15004R0001 Star coupler module is an important optical fiber communication equipment component, with specific functions and structural characteristics. Here is a detailed explanation of the star coupler module:

　　Definition:

　　The 500SCM01 1MRB200059/C 1MRB15004R0001 star coupler is an n×m coupler whose function is to combine the optical power input from n optical fibers and then evenly distribute it to m optical fibers. Here n and m are not necessarily equal, so star couplers are often used as multiterminal power dividers.

　　Structure and Manufacture:

　　Star couplers can be manufactured by fused double cone forming technology, especially for multimode fiber optic systems. The star coupler can be made by merging several independent multimode fibers with each other and melting stretching.

　　For single-mode optical fiber systems, star couplers can be made by cascading l×2 couplers.

　　Type:

　　Transmission type star coupler: When power is input to any port on one side of the coupler, power is transmitted to all ports on the other side. Ideally, the same side ports of the coupler are isolated from each other.

　　Reflective star coupler: Coupling light from any port to all ports of the coupler.

　　Features:

　　Passive devices: 500SCM01 1MRB200059/C 1MRB15004R0001 Star couplers are usually passive, meaning they do not require an external power source to operate. Compared with active devices, passive devices have the characteristics of high reliability and low cost.

　　Flexibility: Through the star coupler, the output optical power of the light source can be evenly distributed to all receiving sites, providing flexibility for distributed networks.
