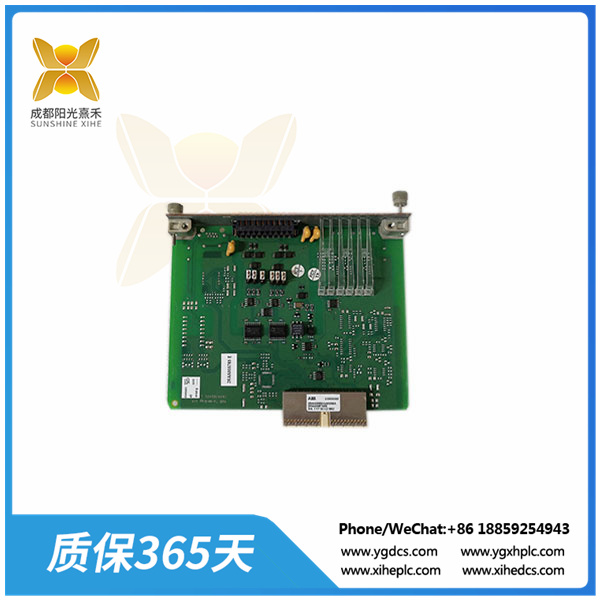

COM0034 | 控制器模块 | 216MB66 HESG324510M1
模型:COM0034
类别:控制器模块
额定电流:1A
额定电压:230V AC
控制方式:开环控制保护功能过载保护、欠压保护、过压保护、短路保护等
通讯接口RS232、RS485
尺寸:100 × 50 × 40毫米
重量:0.5公斤
控制器由程序计数器、指令寄存器、指令解码器、定时发生器、操作控制器等组成,负责从主存储器中取出指令,指出下一条指令在主存储器中的位置,对指令进行解码或测试,并产生相应的操作控制信号,以启动指定动作。 此外,控制器还负责指挥和控制CPU、主存、输入输出设备之间数据流的方向。
它是如何工作的:
COM0034控制器的功能是接收输入信号(如传感器输入信号或用户输入信号)并产生输出信号,实现对系统的控制。
工作过程包括输入信号接收、信号处理、控制算法执行、输出信号生成、系统监控与反馈。
适用范围:
家用电器:如空调、洗衣机、冰箱等,通过控制器实现对设备的自动控制和监控。
工业制造:在自动化生产线和机器人系统中,控制器用于实时监控和控制生产过程中的各种参数。
交通:如交通信号灯、电梯、地铁系统等,控制器用于控制智能设备的运行。
能源管理:在智能家居和工业能源系统中,控制器用于监控和调节能源消耗,以提高能源效率
Model: COM0034
Category: Controller module
Rated current: 1A
Rated voltage: 230V AC
Control mode: open loop controlProtection function Overload protection, undervoltage protection, overvoltage protection, short circuit protection, etc
Communication ports RS232, RS485
Dimensions: 100 x 50 x 40 mm
Weight: 0.5kg
.
The controller is composed of program counter, instruction register, instruction decoder, timing generator and operation controller, etc., which is responsible for taking out instructions from main memory, pointing out the position of the next instruction in main memory, decoding or testing instructions, and generating corresponding operation control signals to start the specified actions. In addition, the controller is responsible for directing and controlling the direction of data flow between the CPU, main memory, input and output devices.
How it works:
The COM0034 controller controls the system by receiving input signals (such as those from sensors or user input) and generating output signals.
The working process includes input signal receiving, signal processing, control algorithm execution, output signal generation, system monitoring and feedback.
Scope of application:
Household appliances: such as air conditioning, washing machines, refrigerators, etc., through the controller to achieve automatic control and monitoring of equipment.
Industrial manufacturing: In automated production lines and robotic systems, controllers are used to monitor and control various parameters in the production process in real time.
Transportation: such as traffic lights, elevators, subway systems, etc., the controller is used to control the operation of intelligent equipment.
Energy Management: In smart home and industrial energy systems, controllers are used to monitor and regulate energy consumption to improve energy efficiency
