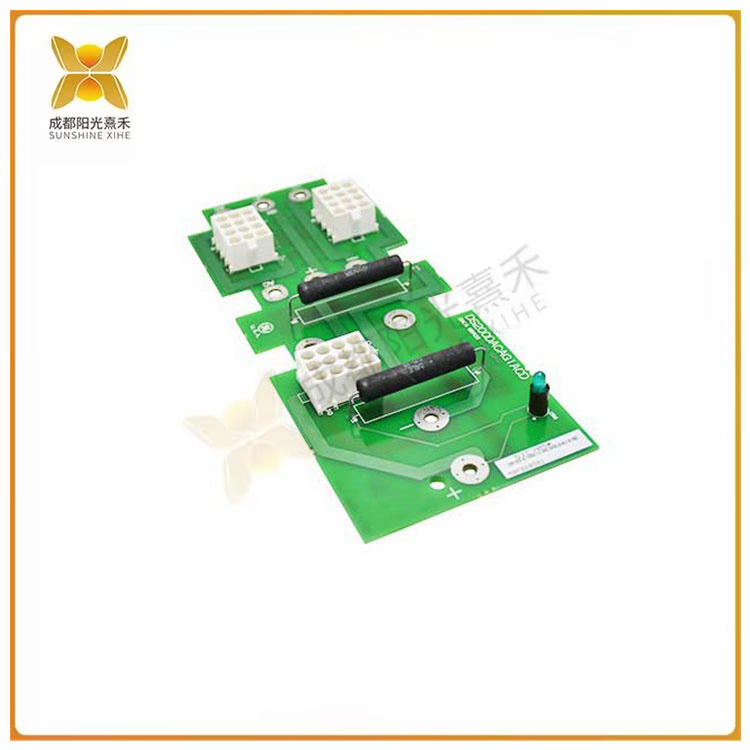

>>>>>型号:DS200IQXSG1AAA 逆变器缓冲板 具有8个端子连接器
【功能描述】
GE逆变器缓冲板DS200IQXSG1AAA具有8个端子连接器。端子标记为E1到E8。GE逆变器缓冲器板DS200IQXSG1AAA还包含1个8针连接器和1个安装在板上的薄膜电容器。该板是安装在板机柜中的多块板之一。尺寸为6.25 x 5英寸，拐角处的四个孔与板架上的匹配安装孔对齐。如果没有新螺钉，请使用固定旧板的相同螺钉。
由于驱动器中的电路板和运动部件会产生热量，因此在安装驱动器时，冷却是一个重要的考虑因素。变频器必须具有可以自由流过变频器的清洁空气源，以将组件保持在允许的温度范围内。变频器的设计使凉爽和清洁的空气从底部进入变频器，并通过变频器内部上升。它绕过组件并越过组件，并将热量从驱动器中带走。
另一个考虑因素是，驱动器不要靠近其他产生热量的设备，并且驱动器周围的墙壁不会被墙壁另一侧的设备加热。
如果驱动器变得过热并超过温度范围，则会检测到温度过高的情况，并且驱动器将自动停止。这种安全功能将防止损坏组件。它还可以防止火灾危险的发展。
>>>>>型号:DS200IQXSG1AAA 逆变器缓冲板 具有8个端子连接器
【英文介绍】
The GE Inverter buffer board DS200IQXSG1AAA has 8 terminal connectors. The terminals are labeled E1 to E8. The GE inverter buffer board DS200IQXSG1AAA also contains an 8-pin connector and a film capacitor mounted on the board. The board is one of several boards installed in the board cabinet. Measuring 6.25 x 5 inches, the four holes at the corner are aligned with the matching mounting holes on the plate rack. If no new screws are available, use the same screws that secured the old plate.
Because the circuit board and moving parts in the driver generate heat, cooling is an important consideration when installing the driver. The inverter must have a clean air source that can flow freely through the inverter to keep the components within the permitted temperature range. The inverter is designed so that cool and clean air enters the inverter from the bottom and rises through the inside of the inverter. It goes around the component and over the component and takes the heat away from the drive.
Another consideration is that the drive is not near other devices that generate heat, and that the walls around the drive are not heated by devices on the other side of the wall.
If the drive becomes overheated and exceeds the temperature range, an overheated condition will be detected and the drive will automatically stop. This safety feature will prevent damage to the components. It can also prevent the development of fire hazards.
