>>>>>型号:DS200KLDBG1ABC 显示板 基于微处理器的控制系统
【功能描述】
DS200KLDBG1ABC通用电气显示板
DS200KLDBG1ABC是Mark V Speedtronic系统中使用的GE组件。Mark V是Speedtronic中最后一款用于控制燃气轮机或蒸汽轮机的系统之一。它是一个灵活的基于微处理器的控制系统，采用TMR架构，设计有内置诊断和在线维护功能。GE不再出售该DS200KLDBG1ABC，但可以通过AX控制作为翻新装置和清算剩余（新使用）库存找到。请注意，DS200系列主板是较旧的设备，没有更新固件或组件;如果您的系统需要这些更新，请查看DS215系列中的类似主板。

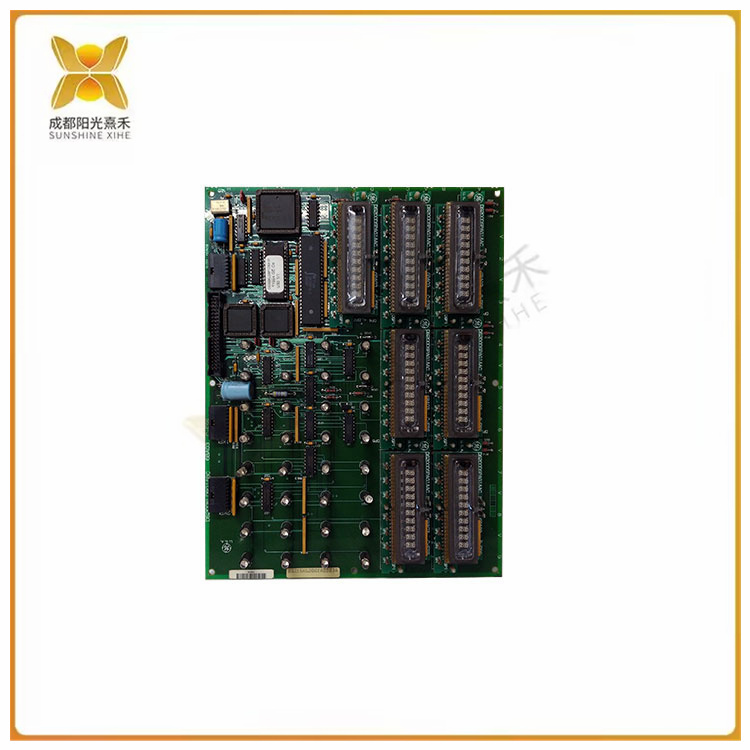

DS200KLDBG1ABC用作显示板。它是一个大的矩形板，只有几个间隔良好的组件。这包括32个垂直照明组件，这些组件位于电路板右下象限的四行中，每行8个。集成电路和电阻网络阵列放置在这些灯之间。更多的集成电路聚集在左下角，包括现场可编程门阵列和至少一个振荡芯片。该板具有多个板连接器，包括两个垂直引脚组件。该板具有两个跳线开关、电容器、二极管和电阻器。电路板顶部有七个LED显示屏。这些显示器设计用于数字显示，使用16段数字。该板标有C-ESS和6BA01等代码。电路板的角和边缘经过钻孔，以便安装。
>>>>>型号:DS200KLDBG1ABC 显示板 基于微处理器的控制系统
【英文介绍】
DS200KLDBG1ABC General Electric display board
The DS200KLDBG1ABC is a GE component used in the Mark V Speedtronic system. The Mark V was one of the last Speedtronic systems to control a gas or steam turbine. It is a flexible microprocessor-based control system that uses the TMR architecture and is designed with built-in diagnostic and online maintenance functions. GE no longer sells the DS200KLDBG1ABC, but can be found through AX control as a refurbished unit and liquidation of surplus (newly used) inventory. Please note that DS200 series motherboards are older devices with no updated firmware or components; If your system needs these updates, check out similar motherboards in the DS215 family.
DS200KLDBG1ABC is used as the display board. It is a large rectangular plate with only a few well-spaced components. This includes 32 vertical lighting components, which are located in four rows of eight per row in the lower right quadrant of the board. An integrated circuit and resistor network array are placed between these lights. More integrated circuits are clustered in the lower left corner, including a field-programmable gate array and at least one oscillating chip. The board has multiple board connectors, including two vertical pin assemblies. The board has two jumper switches, capacitors, diodes and resistors. There are seven LED displays on the top of the board. These displays are designed for digital display, using 16 segments of numbers. The board is marked with codes such as C-ESS and 6BA01. The corners and edges of the circuit board are drilled for installation.
