【功能描述】

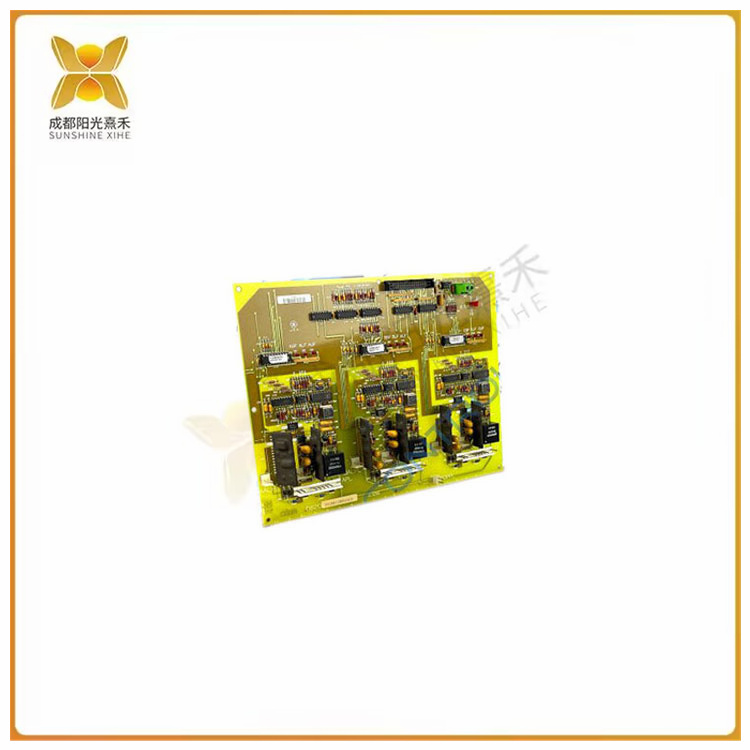

GE绝缘栅双极晶体管（IGBT）板DS200IIBDG1A包含9个LED指示灯，用于提供电路板的处理状态。LED从电路板机柜内部可见，点亮时呈红色。
GE绝缘栅双极晶体管（IGBT）板DS200IIBDG1A具有多个连接器，在安装替换板时，必须确保将电缆连接到完全相同的连接器中。为确保将它们重新连接到相同的连接器，请检查有缺陷的主板并记下指示已连接电缆的连接器的连接器标识符的记下。然后制作标签并将它们贴在电缆上，以显示将能力连接到新板上的位置。
此外，该板还包含一个或多个跳线，用于配置板以特定方式处理驱动器的信息。其他跳线在出厂时设置，在出厂时仅用于测试目的。电路板附带的信息可识别跳线，并描述跳线设置以及它们如何更改电路板行为。
当电路板通电且驱动器处于运行状态时，LED指示电路板的运行情况。由于LED仅在电路板通电时可见，因此打开机柜时必须格外小心。查看LED时不要触摸驱动器中的任何组件，并确保驱动器中没有掉落任何金属、污垢或其他碎屑。
>>>>>型号:DS200IIBDG1A 绝缘栅双极晶体管 提供电路板的处理状态
【英文介绍】
The GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1A contains nine LED indicators to provide the processing status of the board. The LED is visible from inside the circuit board cabinet and appears red when lit.
The GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1A has multiple connectors, and when installing the replacement board, you must ensure that the cable is connected to the exact same connector. To ensure that they are reconnected to the same connector, check the defective motherboard and make a note of the connector identifier indicating the connector to which the cable has been connected. Labels are then made and attached to the cable to show where the capability is connected to the new board.
In addition, the board contains one or more jumpers that configure the board to handle the drive's information in a particular way. Other jumpers are set at the factory and are only used for testing purposes at the factory. The information that comes with the board identifies the jumper and describes the jumper Settings and how they change the board behavior.
When the board is powered and the driver is in operation, the LED indicates the operation of the board. Since the LED is only visible when the board is powered on, extra care must be taken when opening the cabinet. Do not touch any components in the drive while viewing the LED, and ensure that no metal, dirt, or other debris has fallen from the drive.
