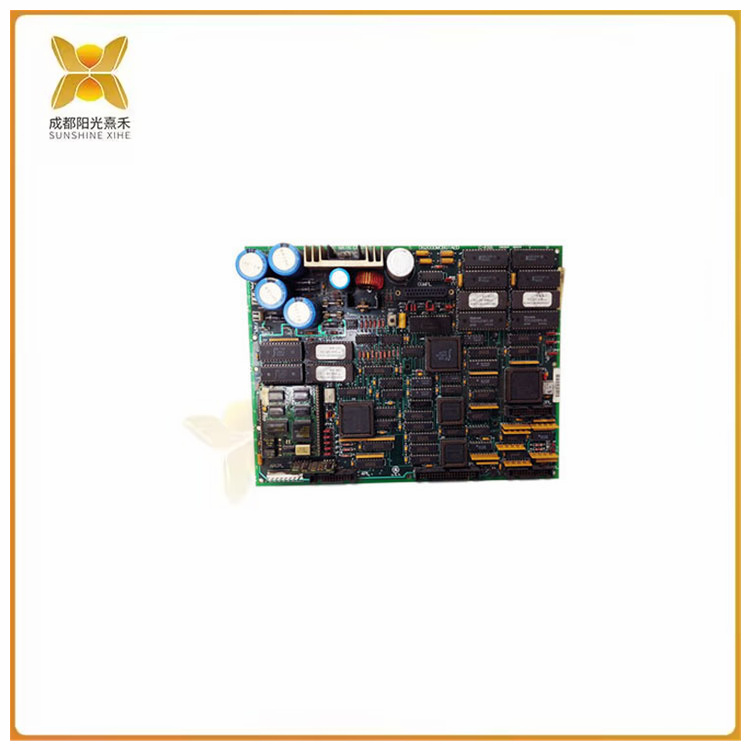

>>>>>型号:DS200DMCBG1AED 处理器板 采用AMD处理器
【功能描述】
DS200DMCBG1AED处理器主板是一款通用的电脑主板，采用AMD处理器，具有较高的性能和稳定性。
该主板采用Socket FM2+接口，支持AMD A8、A10、A12系列处理器，拥有2个DDR3内存插槽、4个SATA 3.0接口、1个PCI-E 3.0 x16插槽、1个PCI-E 2.0 x16插槽等配置。
此外，该主板还支持双通道内存技术，可提供高速的数据传输速度，适合于需要高性能计算和多任务处理的用户。
GE DOS DUP处理器板DS200DMCBG1AED包含三个26针连接器、一个40针连接器和19个跳线。该板还具有2个LED。GE DOS DUP处理器板DS200DMCBG1AED还装有两个保险丝，可提供过压保护。如果电路板的电源发生瞬时浪涌，保险丝中的元件熔断，电路板完全停止工作，或在保险丝保护的电路中停止工作。如果保险丝的额定值错误，电路板上的组件会损坏。因此，如果更换保险丝，请仅使用相同额定值的更换件。有关保险丝的信息在出厂时随附的原始电路板的信息中提供。或者，您可能会发现保险丝上印有额定值。
检查保险丝的状况是对电路板进行故障排除的快速初始步骤，因为它只需要目视检查。如果您怀疑电路板的性能未达到预期，您可以打开电路板机柜门并找到电路板上的保险丝。如果一个或两个保险丝熔断，请断开驱动器的所有电源，卸下电路板，然后更换保险丝。重新启动驱动器并确定主板是否恢复正常运行。如果问题仍然存在，下一步是查看电路板上的2个LED。LED在板上标识为CR2和CR12，亮起时为红色。
>>>>>型号:DS200DMCBG1AED 处理器板 采用AMD处理器
【英文介绍】
DS200CTBAG1ADD GE Mark V terminal board
DS200CTBAG1ADD is a terminal board designed for GE Mark V Speedtronic systems. The Speedtronic family was created by General Electric to control large and small gas and steam turbine systems. MKV can be designed with simplex or TMR/ triple modular redundancy architecture to meet the needs of interconnected turbine systems. The boards are no longer manufactured and distributed by GE, but can be purchased as fully tested and refurbished models through AX Control.
The DS200CTBAG1ADD is a long, narrow circuit board with only a few types of components. It drilled holes in each corner and long side to allow for the installation of hardware and other connections. Two of the holes are surrounded by conductive material. The board is marked with an identification code, including the board ID number and the company logo.
DS200CTBAG1ADD is an analog terminal module. It is usually located in the R5> Inside the kernel. The board has multiple connectors, including two COREBUS connectors (JAI and JAJ). The DS200CTBAG1ADD has two double-stacked terminal blocks located at the edge of a longboard with multiple connectors on each terminal block. There are 5 vertical pin cable connectors, 2 vertical pin connector connectors, and a 9-pin male serial connector.
Other components on the DS200CTBAG1ADD include a resistor network array, relays, transistors, more than two dozen metal oxide varistors (MOV), a dozen jumper switches, and many capacitors and resistors. For more information, see GE's original technical support offering.
>>>>>型号:DS200DMCBG1AED 处理器板 采用AMD处理器
