>>>>>型号:IS210WSVOH1AE 声学监测模块 内置于DIN导轨
【功能描述】

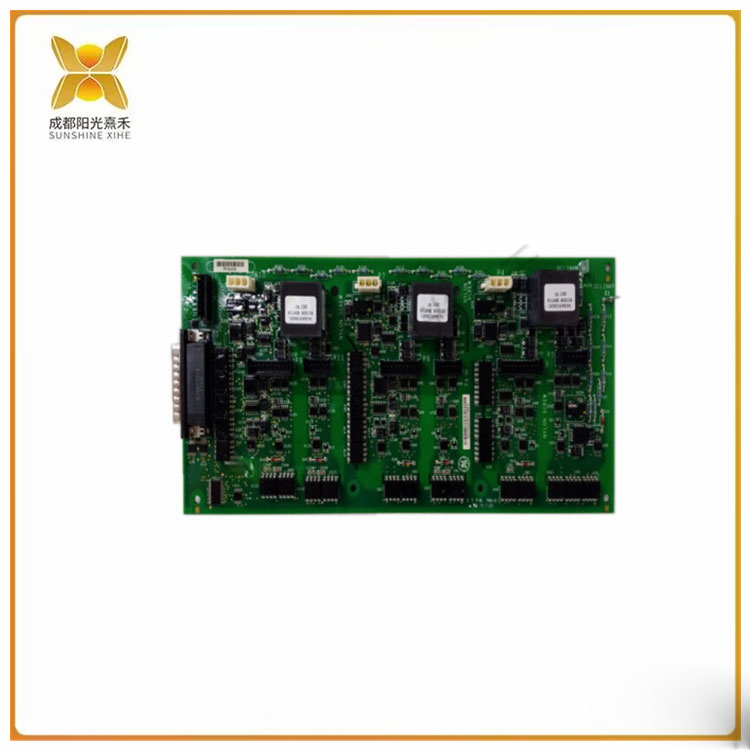

IS210WSVOH1AE是一种印刷电路板或PCB，最初由通用电气公司为该公司的Mark VI和Mark VIe涡轮机控制系统生产。这两个系统均采用GE的三重模块化冗余（TMR）架构设计，该架构为涡轮机关键控制和保护参数提供备份，以提高系统的整体可靠性。
该IS210WSVOH1AE用作声学监测模块。使用时，该电路板通过位于一个长板边缘的端子排向Mark VI（Mark VIe）声学监测系统添加额外的18个输入。这些灯带提供用于两线输入的附件。该板还具有用于类似输出的附件。输出监控电压信号。
该IS210WSVOH1AE内置于DIN导轨内。这围绕着电路板的所有四个边缘;但是，法兰在三个边上向上移动，在一条边上向下移动。一些法兰上钻有槽口或安装孔。电路板本身标有许多代码，还包括母连接器。该板还标有通用电气标志。
有关IS210WSVOH1AE电路板的更多信息可以通过通用电气的原始文档获取。这包括GE手册、数据表和产品指南。在开始任何类型的安装、维护或其他过程之前，使用此信息可以更深入地了解本产品和整个系统。
>>>>>型号:IS210WSVOH1AE 声学监测模块 内置于DIN导轨
【英文介绍】
The IS210WSVOH1AE is a printed circuit board or PCB originally produced by General Electric for the company's Mark VI and Mark VIe turbine control systems. Both systems are designed with GE's Triple Modular Redundancy (TMR) architecture, which provides backup for key turbine control and protection parameters to improve the overall reliability of the system.
The IS210WSVOH1AE is used as an acoustic monitoring module. When used, the board adds an additional 18 inputs to the Mark VI (Mark VIe) acoustic monitoring system via a terminal bank located at the edge of a longboard. These lamp strips provide accessories for two-wire input. The board also has attachments for similar outputs. Output monitoring voltage signal.
The IS210WSVOH1AE is built into a DIN rail. This surrounds all four edges of the board; However, the flange moves up on three sides and down on one side. Some flanges have notches or mounting holes drilled into them. The board itself is marked with many codes and also includes female connectors. The board is also marked with the GE logo.
More information about the IS210WSVOH1AE board is available through GE's original documentation. This includes GE manuals, data sheets, and product guides. Use this information to gain a deeper understanding of the product and the overall system before starting any type of installation, maintenance, or other process.
