>>>>>型号:IS215ACLEH1BB 用作基于微处理器的控制器
【功能描述】

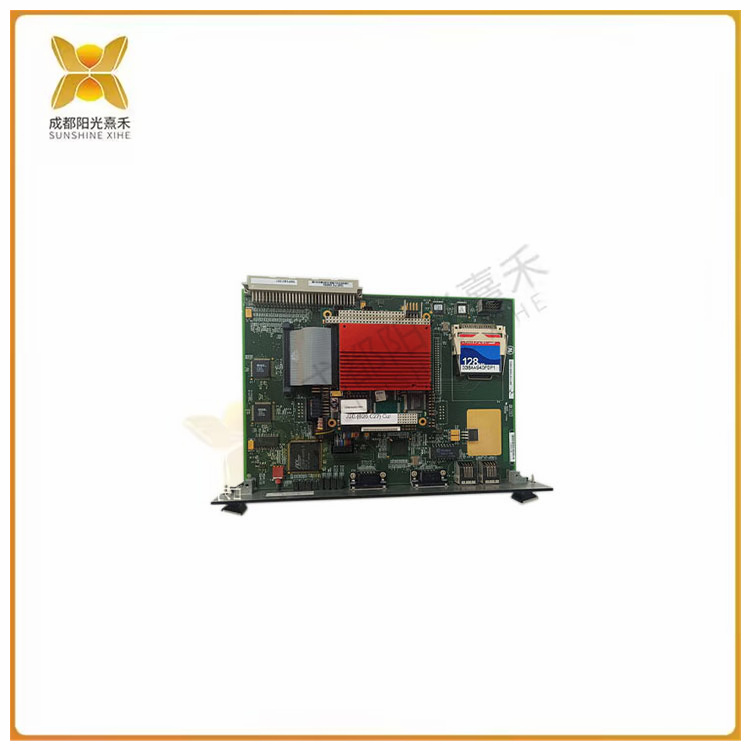

IS215ACLEH1BB的主要功能是用作基于微处理器的控制器。该型号是通用电气工业系统公司生产的EX2100系列中一系列应用控制层模块的一部分。该板是ACLE模块中的第一个,该板配备了PCI(外围组件互连)控制器和两个以太网端口。
安装IS215ACLEH1BB型号时,它将安装在创新系列驱动器或EX2100控制机架中。该板有几个LED,它们是Active、OK、ENET、Status和Flash指示灯,每个指示灯都有不同的功能,例如ample,当CPU(中央处理器)访问内存组件时,Active LED将完全常亮。IS215ACLEH1BB模型的软件功能之一是基本输入/输出系统(BIOS),它将初始化和识别其他硬件形式。BIOS功能支持操作系统的串行加载。
虽然IS215ACLEH1BB模型目前大部分已经过时,但仍然可以找到。与IS215ACLEH1BB型号一起使用的最佳手册是GEI-100434应用控制层模块(ACL)手册。
>>>>>型号:IS215ACLEH1BB 用作基于微处理器的控制器
【英文介绍】
The IS210WSVOH1AE is a printed circuit board or PCB originally produced by General Electric for the company's Mark VI and Mark VIe turbine control systems. Both systems are designed with GE's Triple Modular Redundancy (TMR) architecture, which provides backup for key turbine control and protection parameters to improve the overall reliability of the system.
The IS210WSVOH1AE is used as an acoustic monitoring module. When used, the board adds an additional 18 inputs to the Mark VI (Mark VIe) acoustic monitoring system via a terminal bank located at the edge of a longboard. These lamp strips provide accessories for two-wire input. The board also has attachments for similar outputs. Output monitoring voltage signal.
The IS210WSVOH1AE is built into a DIN rail. This surrounds all four edges of the board; However, the flange moves up on three sides and down on one side. Some flanges have notches or mounting holes drilled into them. The board itself is marked with many codes and also includes female connectors. The board is also marked with the GE logo.
More information about the IS210WSVOH1AE board is available through GE's original documentation. This includes GE manuals, data sheets, and product guides. Use this information to gain a deeper understanding of the product and the overall system before starting any type of installation, maintenance, or other process.
