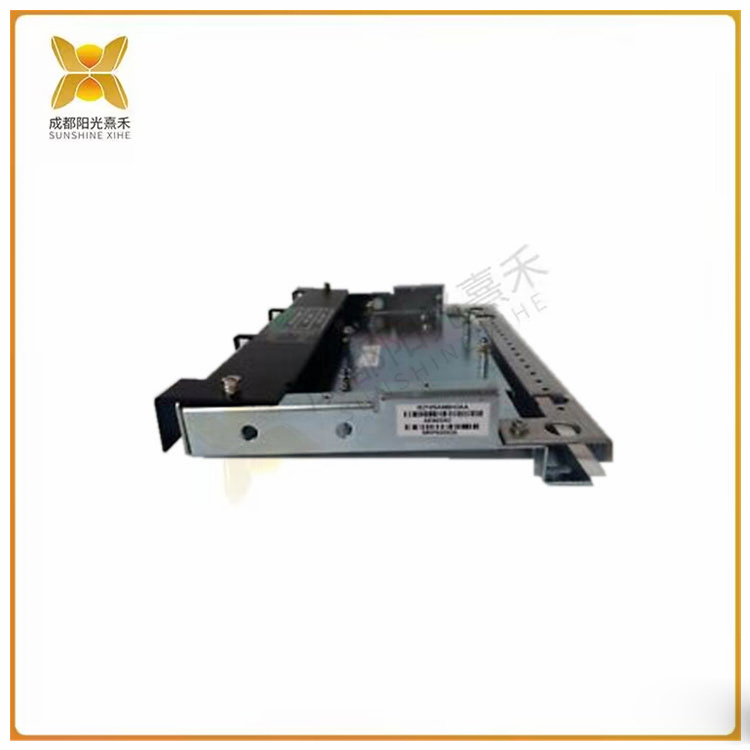

>>>>>型号:IS210SAMBH2AA 印刷电路板或PCB 声学监测模块
【功能描述】
IS210SAMBH2AA是一种印刷电路板或PCB，最初由通用电气公司为该公司的Mark VI和Mark VIe涡轮机控制系统生产。这两个系统均采用GE的三重模块化冗余（TMR）架构设计，该架构为涡轮机关键控制和保护参数提供备份，以提高系统的整体可靠性。
该IS210SAMBH2AA用作声学监测模块。使用时，该电路板通过位于一个长板边缘的端子排向Mark VI（Mark VIe）声学监测系统添加额外的18个输入。这些灯带提供用于两线输入的附件。该板还具有用于类似输出的附件。输出监控电压信号。
该IS210SAMBH2AA内置于DIN导轨内。这围绕着电路板的所有四个边缘;但是，法兰在三个边上向上移动，在一条边上向下移动。一些法兰上钻有槽口或安装孔。电路板本身标有许多代码，还包括母连接器。该板还标有通用电气标志。
有关IS210SAMBH2AA电路板的更多信息可以通过通用电气的原始文档获取。这包括GE手册、数据表和产品指南。在开始任何类型的安装、维护或其他过程之前，使用此信息可以更深入地了解本产品和整个系统。
>>>>>型号:IS210SAMBH2AA 印刷电路板或PCB 声学监测模块
【英文介绍】
The IS210BPPBH2BMD is a Mark VI board assembly manufactured by General Electric. Designed for steam or gas turbine management, the MKVI is the fifth Speedtronic system released by GE. From the 1960s until the turn of the century, the Speedtronic series was GE's main management product line. The system includes a central control module that is connected to the terminal board as well as an operator interface that allows access to turbine data, programmable maintenance tools and alarm status.
The IS210BPPBH2BMD is a small auxiliary board that can be connected to a larger WETA board. The IS210BPPBH2BMD is attached to its motherboard using screws threaded through four drill holes. They are located near each corner of the board. Screw into the bracket and then into the motherboard below. There are small incisions on all three edges of the plate.
The IS210BPPBH2BMD is filled with two female plugs. One of them is three plugs. The other plug is a long, narrow plug. The board also has two female jack connectors. The board consists of a transformer, a transistor, an inductor coil, and two crystals/oscillators. It also features two LED components that are placed side by side along one edge of the board.
The IS210BPPBH2BMD is marked with the GE logo. It also comes with codes such as Type 6, FA/00, and E99006. For more information on board components, installation procedures, and safety recommendations, please refer to the manufacturer's publications.
