>>>>>型号:IS210BPPBH2BMD 中央控制模块 允许访问涡轮机数据
【功能描述】
该IS210BPPBH2BMD是由通用电气制造的Mark VI板组件。 MKVI 专为蒸汽或燃气轮机管理而设计，是 GE 发布的第五款 Speedtronic 系统。从1960年代到世纪之交，Speedtronic系列是通用电气的主要管理产品线。该系统包括一个中央控制模块，该模块连接到终端板以及一个操作员界面，该界面允许访问涡轮机数据、可编程维护工具和报警状态。

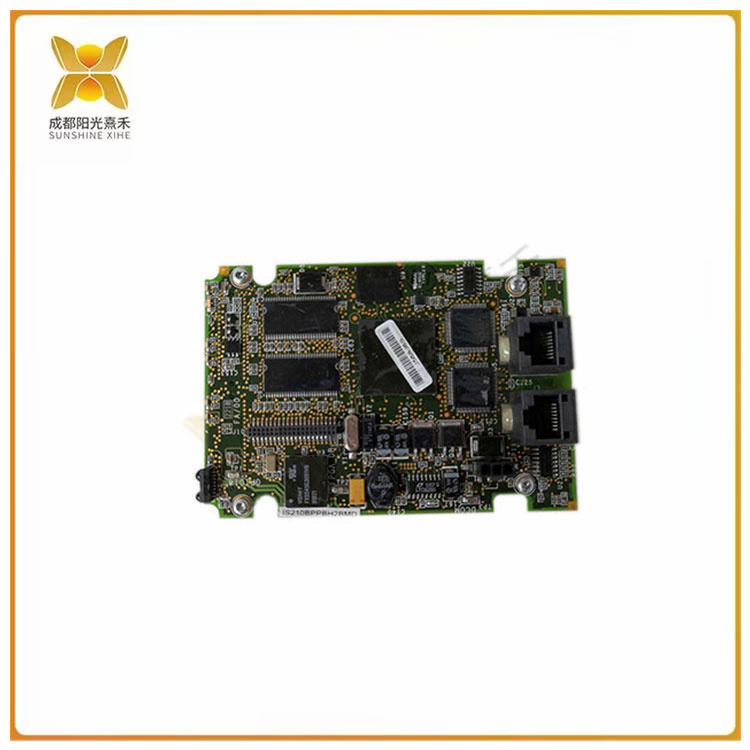

IS210BPPBH2BMD是一个小型辅助板，可连接到较大的 WETA 板。IS210BPPBH2BMD使用螺钉连接到其主板，螺钉穿过四个钻孔。它们位于板的每个角附近。螺钉插入支架，然后插入下面的主板。该板的三个边缘都有小切口。
IS210BPPBH2BMD由两个母插头填充。其中之一是三位插头。另一个插头是一个又长又窄的插头。该板还具有两个母插孔连接器。该板由变压器、晶体管、电感线圈和两个晶体/振荡器组成。它还具有两个 LED 组件，它们沿着电路板的一个边缘并排放置。
IS210BPPBH2BMD上标有GE标志。它还带有 Type 6、FA/00 和 E99006 等代码。有关电路板组件、安装程序和安全建议的更多信息，请参阅制造商的出版物。
>>>>>型号:IS210BPPBH2BMD 中央控制模块 允许访问涡轮机数据
【英文介绍】
The IS210BPPBH2BMD is a Mark VI board assembly manufactured by General Electric. Designed for steam or gas turbine management, the MKVI is the fifth Speedtronic system released by GE. From the 1960s until the turn of the century, the Speedtronic series was GE's main management product line. The system includes a central control module that is connected to the terminal board as well as an operator interface that allows access to turbine data, programmable maintenance tools and alarm status.
The IS210BPPBH2BMD is a small auxiliary board that can be connected to a larger WETA board. The IS210BPPBH2BMD is attached to its motherboard using screws threaded through four drill holes. They are located near each corner of the board. Screw into the bracket and then into the motherboard below. There are small incisions on all three edges of the plate.
The IS210BPPBH2BMD is filled with two female plugs. One of them is three plugs. The other plug is a long, narrow plug. The board also has two female jack connectors. The board consists of a transformer, a transistor, an inductor coil, and two crystals/oscillators. It also features two LED components that are placed side by side along one edge of the board.
The IS210BPPBH2BMD is marked with the GE logo. It also comes with codes such as Type 6, FA/00, and E99006. For more information on board components, installation procedures, and safety recommendations, please refer to the manufacturer's publications.
