>>>>>型号:IS210AEPSG1AFC 电路板组件 解决轴电压升高
【功能描述】
IS210AEPSG1AFC是GE为Mark VI系统制造的电路板组件。 作为通用电气长期流行的 Speedtronic 系列的一部分，MKVI 是重型蒸汽轮机或燃气轮机的管理系统。该系列由 GE 从 1969 年（随着 Mark I 的发布）到 1990 年代（随着 Mark VI 和 Mark VIe 的发布）生产。Mark VI使用特定应用和通用输入/输出定期监测涡轮机，以解决轴电压升高、温度问题、火焰检测和振动等问题。

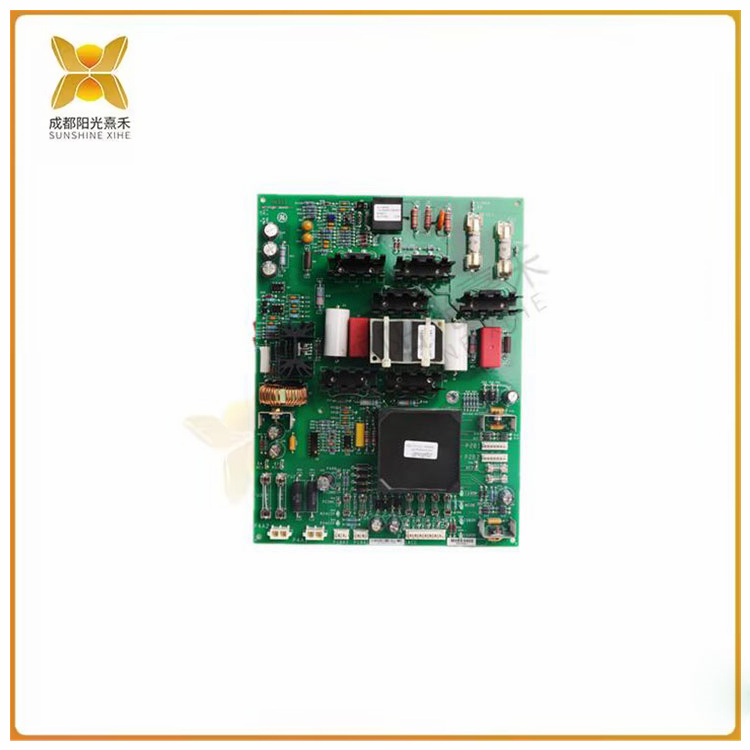

IS210AEPSG1AFC是一个具有大量组件的小型矩形板。该板用作电源板。该板在每个角上都钻孔，并在板体内的多个位置钻孔。 IS210AEPSG1AFC具有变压器、电感线圈和电源等组件。该板还有十二个保险丝。它们以四对和四对两行的形式放置在板上。大多数保险丝都放置在快速连接保险丝座中。
该IS210AEPSG1AFC具有压敏电阻元件。压敏电阻是可变电阻器。该板有几个金属膜电阻器。电路板上的电容器包括由聚酯乙烯基、陶瓷以及高压电解电容器制成的电容器。该板包括刺接式连接器、散热器、插头连接器、接头连接器和 LED 指示灯。晶体管通常位于散热器附近。该板还使用 TP 测试点和集成电路。有关安装过程的详细信息，请参阅制造商出版物。
>>>>>型号:IS210AEPSG1AFC 电路板组件 解决轴电压升高
【英文介绍】
The IS210AEPSG1AFC is a circuit board component manufactured by GE for the Mark VI system. Part of GE's long-popular Speedtronic series, the MKVI is a management system for heavy-duty steam or gas turbines. The series was produced by GE from 1969 (with the release of the Mark I) through the 1990s (with the release of the Mark VI and the Mark VIe). Mark VI regularly monitors turbines using application-specific and general-purpose inputs/outputs to address issues such as increased shaft voltage, temperature issues, flame detection, and vibration.
The IS210AEPSG1AFC is a small rectangular board with a large number of components. The board is used as a power supply board. The plate is drilled at each corner and drilled at multiple locations inside the plate. The IS210AEPSG1AFC has components such as transformer, inductor and power supply. The board also has twelve fuses. They are placed on the board in the form of four pairs and four pairs of two rows. Most fuses are placed in a quick-connect fuse holder.
The IS210AEPSG1AFC has a varistor element. Varistors are variable resistors. The plate has several metal film resistors. Capacitors on the circuit board include capacitors made of polyester vinyl, ceramics, and high voltage electrolytic capacitors. The board includes a splice connector, heat sink, plug connector, splice connector, and LED indicator. Transistors are usually located near heat sinks. The board also uses TP test points and integrated circuits. For more information about the installation process, see manufacturer publications.
