>>>>>型号:IS210AEDBH4AGD 印刷电路板 集成的HMI/操作员界面
【功能描述】
IS210AEDBH4AGD是GE制造的组件，作为Mark VI系统的电路板组件。 Mark VI系统是为管理燃气轮机和蒸汽轮机而创建的，具有集成的HMI/操作员界面，允许用户使用专门设计的软件（如GE的CIMPLICITY图形平台）访问系统数据。
IS210AEDBH4AGD是网桥接口卡。该组件的正面有许多连接器，包括标有 574 9771-1 1301 的直角电缆连接器。有两个接头连接器，每个连接器有六个或四个位置，但每个连接器有两个垂直引脚。该板有 9 个公头垂直引脚连接器，引脚从 6 个引脚到 10 个引脚不等。该板还有四个插头，每个插头有三个位置。

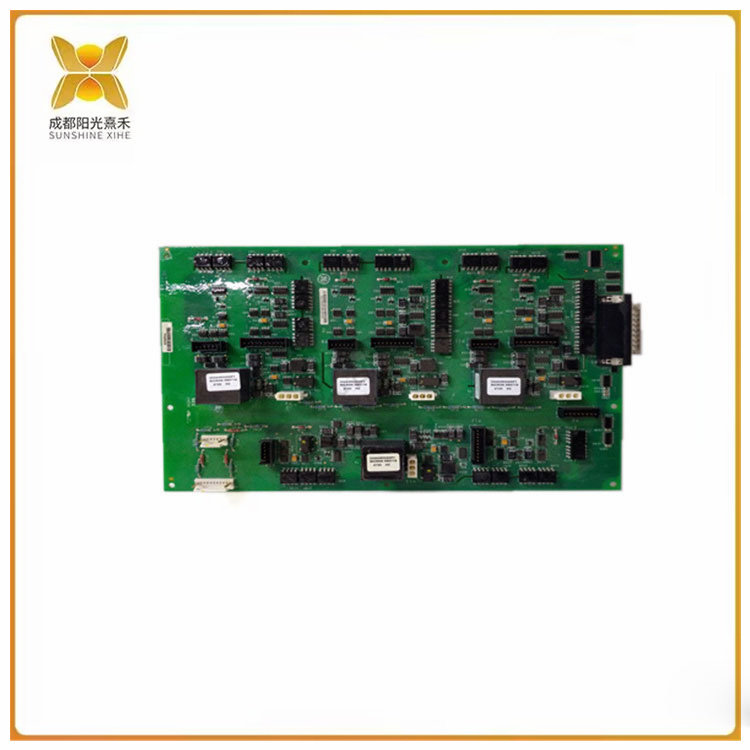

IS210AEDBH4AGD在前表面和背面都有组件。背面主要是电容器和电阻器，但也有二极管和晶体管。正面还有电容器和电阻器，包括二十个金属膜电阻器。它还具有二极管和晶体管。前表面有四个来自 Bizron 的变压器。这些产品标记为 B9178，是封装式开关模式/脉冲变压器，旨在满足 BIL 额定值的高可靠性要求。变压器的耐压电平为5KVAC，开关频率为10KHz至500KHz，集成电路超过175种，包括只读芯片、振荡芯片等。
>>>>>型号:IS210AEDBH4AGD 印刷电路板 集成的HMI/操作员界面
【英文介绍】
The IS210AEDBH4AGD is a GE manufactured component that serves as a circuit board component for the Mark VI system. Created to manage gas and steam turbines, the Mark VI system features an integrated HMI/ operator interface that allows users to access system data using specially designed software such as GE's CIMPLICITY graphics platform.
The IS210AEDBH4AGD is a bridge interface card. The front of the assembly has a number of connectors, including a right Angle cable connector marked 574 9771-1 1301. There are two splice connectors, each with six or four positions, but each connector has two vertical pins. The board has 9 male head vertical pin connectors with pins ranging from 6 pins to 10 pins. The board also has four plugs, each with three positions.
The IS210AEDBH4AGD has components on both the front and back surfaces. The back is mostly capacitors and resistors, but there are also diodes and transistors. There are also capacitors and resistors on the front, including twenty metal film resistors. It also has diodes and transistors. There are four transformers from Bizron on the front surface. Labeled B9178, these products are packaged switching mode/pulse transformers designed to meet the high reliability requirements of the BIL rating. The voltage level of the transformer is 5KVAC, the switching frequency is 10KHz to 500KHz, and there are more than 175 kinds of integrated circuits, including read-only chips and oscillating chips.
