>>>>>型号:IS200TSVCH1AJE 模拟输入卡 具有各种各样的电子元件
【功能描述】
IS200TBAIH1A是一种称为模拟输入卡的设备。这是一种PCB(印刷电路板)。该IS200TBAIH1A由通用电气开发,作为Mark VI系列的组件设备。Mark VI 是 Speedtronic Mark 系列的一个版本。这些系统用于管理和自动化工业燃气轮机和蒸汽轮机的运行。Mark VI 和 Mark 系列中的其他系列用于全球各行各业。

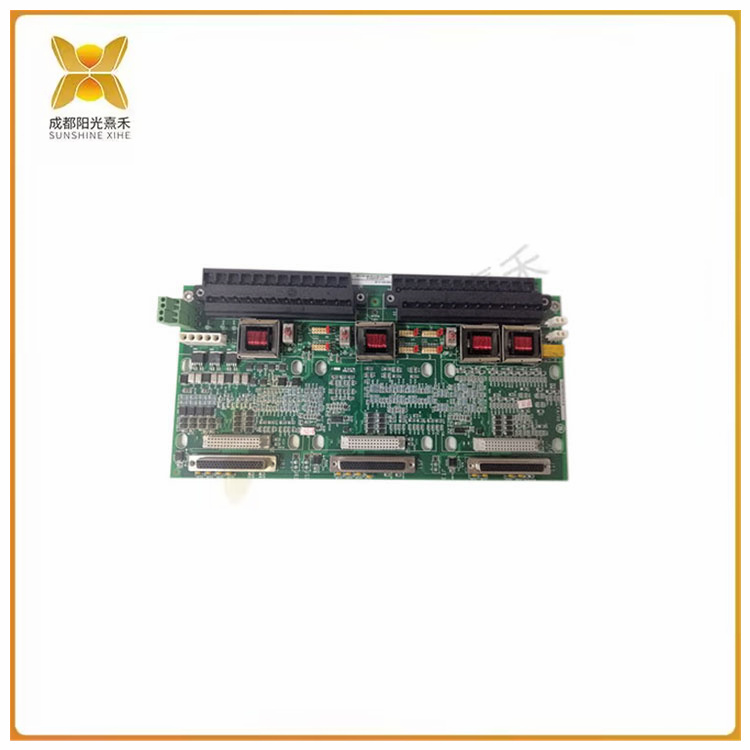

IS200TBAIH1A是一种长印刷电路板,具有各种各样的电子元件。IS200TBAIH1A上最大的组件是两个固定在左边缘的长黑色接线端子。这些接线端子被标识为 TB1 和 TB2。两个接线端子最多可包含十二 (12) 个看起来像立方体的银色金属端子。沿着IS200TBAIH1A的另一侧是三 (3) 个长插孔连接器端口。每个连接器端口都有三十七 (37) 个小型母连接器,可用于将额外的组件或电路板连接到IS200TBAIH1A。连接器标记为 JT1、JS1 和 JR1。IS200TBAIH1A的中心由各种不同的组件占据。IS200TBAIH1A上至少有十 (10) 个晶体管,大部分排列在中心。十 (10) 个可变电阻器或电位计也沿IS200TBAIH1A中心对齐。在IS200TBAIH1A上可以看到二十 (20) 个成对排列的跳线引脚。每对跳线引脚都由一个红色跳线连接。将成对的引脚连接在一起可以调整IS200TBAIH1A的功能。
>>>>>型号:IS200TSVCH1AJE 模拟输入卡 具有各种各样的电子元件
【英文介绍】
The IS200TBAIH1A is a device called an analog input card. This is a PCB (printed circuit board). The IS200TBAIH1A was developed by General Electric as a component device in the Mark VI series. The Mark VI is a version of the Speedtronic Mark series. These systems are used to manage and automate the operation of industrial gas and steam turbines. The Mark VI and other series in the Mark series are used in a variety of industries worldwide.
The IS200TBAIH1A is a long printed circuit board with a wide variety of electronic components. The largest components on the IS200TBAIH1A are the two long black terminals fixed to the left edge. These terminals are identified as TB1 and TB2. Two terminals may contain up to twelve (12) silver metal terminals that look like cubes. Along the other side of the IS200TBAIH1A are three (3) long jack connector ports. Each connector port has thirty-seven (37) small female connectors that can be used to connect additional components or circuit boards to the IS200TBAIH1A. Connectors are labeled JT1, JS1, and JR1. The center of IS200TBAIH1A is occupied by a variety of different components. There are at least ten (10) transistors on the IS200TBAIH1A, most of which are arranged in the center. Ten (10) variable resistors or potentiometers are also aligned along the center of the IS200TBAIH1A. Twenty (20) jumper pins arranged in pairs can be seen on the IS200TBAIH1A. Each pair of jumper pins is connected by a red jumper. Connecting pairs of pins together can adjust the functionality of the IS200TBAIH1A.
