>>>>>型号:IS200TTURH1CFD 接触端子板 微型电阻器
【功能描述】
IS200TTURH1CFD是一种称为接触端子板的设备。这是为Mark VI系列创建的PCB。Mark VI系列是通用电气或GE的Mark系列中的几个系列之一。这些系统旨在控制工业环境中燃气轮机和蒸汽轮机的所有运行。

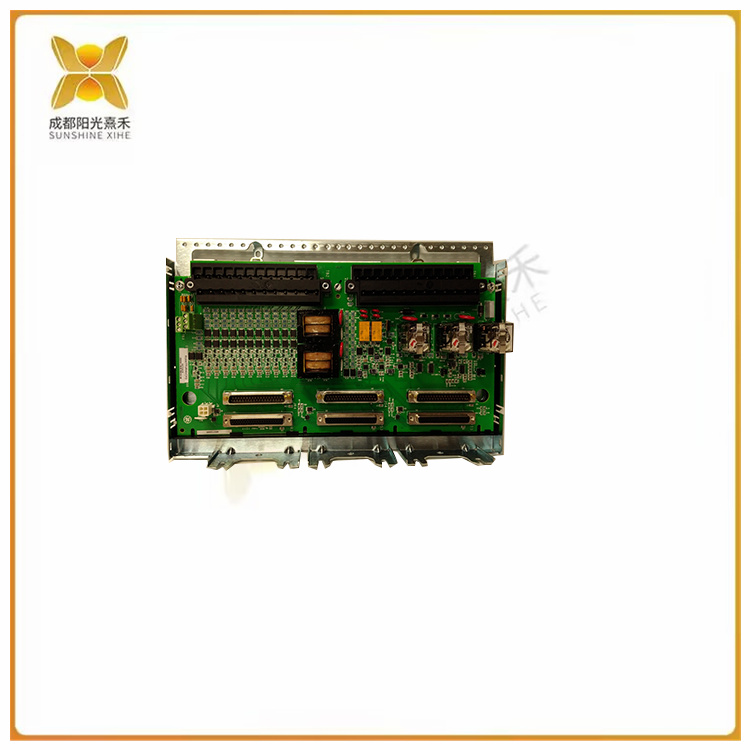

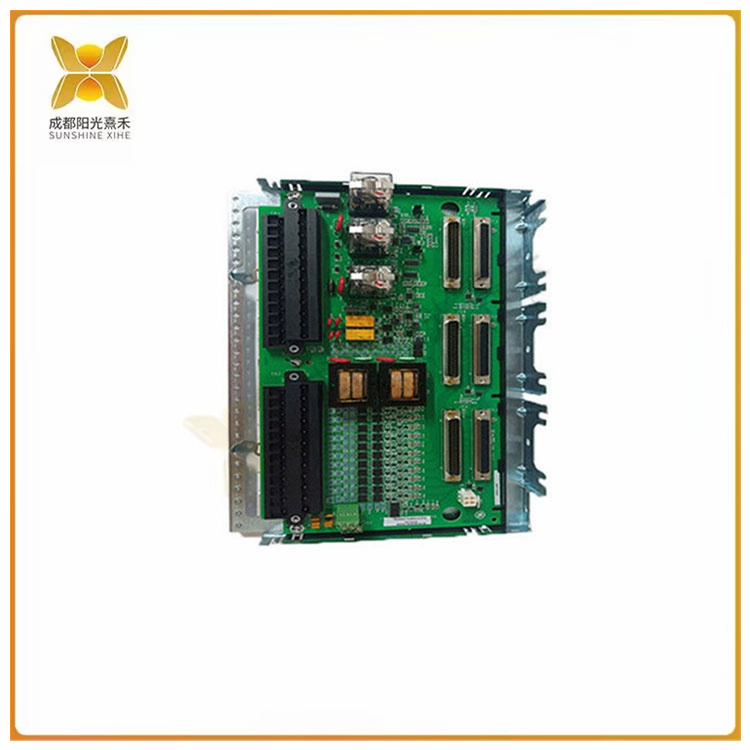

IS200TTURH1CFD是一个长电路板，具有各种不同的电子元件。两（2）个非常大的黑色接线端子占据了IS200TTURH1CFD的左半部分。这些接线端子具有四十八（48）个银金属端子。这些端子由一系列从一到四十八的数字标识，每个接线端子中有二十四（24）个。IS200TTURH1CFD的右边是一长串圆形电容器。这些电容器呈红色常亮。这些接线端子旁边排列着二十五（25）个电容器。位于IS200TTURH1CFD右边缘的是三个插孔连接器端口，分别为银色和黑色。每个连接器端口的右侧是一个非常小的集成电路，标有字母U。另外两（2）个白色连接器位于IS200TTURH1CFD顶部的中心。这两个连接器都包含三（3）个端口，可用于将其他组件连接到IS200TTURH1CFD。在PCB中心的右侧有一排非常长的微型电阻器。这条线几乎横跨IS200TTURH1CFD的整个长度。
>>>>>型号:IS200TTURH1CFD 接触端子板 微型电阻器
【英文介绍】
The IS200TBAIH1A is a device called an analog input card. This is a PCB (printed circuit board). The IS200TBAIH1A was developed by General Electric as a component device in the Mark VI series. The Mark VI is a version of the Speedtronic Mark series. These systems are used to manage and automate the operation of industrial gas and steam turbines. The Mark VI and other series in the Mark series are used in a variety of industries worldwide.
The IS200TBAIH1A is a long printed circuit board with a wide variety of electronic components. The largest components on the IS200TBAIH1A are the two long black terminals fixed to the left edge. These terminals are identified as TB1 and TB2. Two terminals may contain up to twelve (12) silver metal terminals that look like cubes. Along the other side of the IS200TBAIH1A are three (3) long jack connector ports. Each connector port has thirty-seven (37) small female connectors that can be used to connect additional components or circuit boards to the IS200TBAIH1A. Connectors are labeled JT1, JS1, and JR1. The center of IS200TBAIH1A is occupied by a variety of different components. There are at least ten (10) transistors on the IS200TBAIH1A, most of which are arranged in the center. Ten (10) variable resistors or potentiometers are also aligned along the center of the IS200TBAIH1A. Twenty (20) jumper pins arranged in pairs can be seen on the IS200TBAIH1A. Each pair of jumper pins is connected by a red jumper. Connecting pairs of pins together can adjust the functionality of the IS200TBAIH1A.
