IS200TRPAH2AHE 涡轮机控制系统 保护性终端卡

>>>>>型号:IS200TRPAH2AHE 涡轮机控制系统 保护性终端卡 【功能描述】 通用电气的IS200TRPAH2AHE电路板是该公司Mark VI涡轮机控制系统的一部分。Mark VI是GE的最终Speedtronic系统之一,为各种规模的涡轮机系统提供分布式控制。IS200TRPAH2AHE印刷电路板(PCB)在该系统中用作保护性终端卡。请务必为您的特定

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

>>>>>型号:IS200TRPAH2AHE 涡轮机控制系统 保护性终端卡





【功能描述】

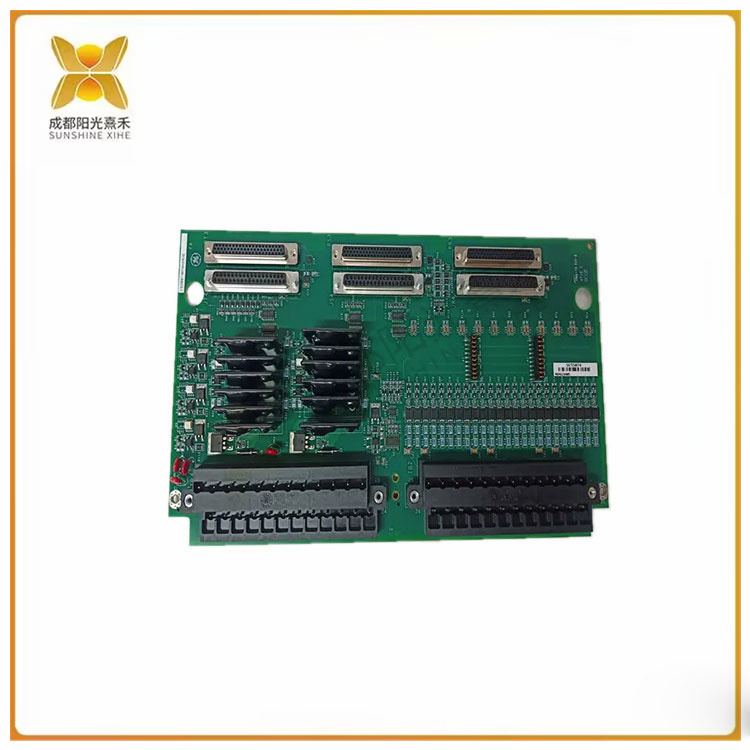

通用电气的IS200TRPAH2AHE电路板是该公司Mark VI涡轮机控制系统的一部分。Mark VI是GE的最终Speedtronic系统之一,为各种规模的涡轮机系统提供分布式控制。IS200TRPAH2AHE印刷电路板(PCB)在该系统中用作保护性终端卡。请务必为您的特定系统订购正确的TPRO板;AX Control有此板的多个版本,它们彼此之间仅略有不同。

IS200TRPAH2AHE建立在金属载体上,该金属载体保护性地延伸到电路板的三个边缘上方。这些金属边缘设计有工厂钻孔和间隙。没有金属覆盖层的电路板由两个大端子排填充。电路板本身用螺钉固定在每个电路板角的金属托架上。

该IS200TRPAH2AHE由许多不同的组件组成,包括六个垂直的d型外壳连接器。它们在板的一侧排列在一起。其他电路板组件包括第三个端子排、两个继电器、两个MOV(金属氧化物压敏电阻)和几个集成电路。该板还具有多个电阻器、电容器和其他组件。像IS200TRPAH2AHE这样的电路板通常在印刷电路板的两侧都有组件。


 >>>>>型号:IS200TRPAH2AHE 涡轮机控制系统 保护性终端卡



英文介绍



General Electric (GE) has developed the iS200TREGH1BEC protected terminal Board as a component of the Mark VI series for gas/steam turbine management and automation. IS200TREGH1BEC is a version of a printed circuit board or PCB. The IS200TREGH1BEC and other components of the Mark VI series are part of a larger Mark series turbine control unit.

IS200TREGH1BEC PCB is rectangular. The most prominent components on the IS200TREGH1BEC are the two (2) terminals and two (2) relays or contactors. The terminals are black and large. They are placed vertically on the left edge of the IS200TREGH1BEC. The relays on the IS200TREGH1BEC are vertically paired at the center of the top of the IS200TREGH1BEC. Most of these relays are red, and they have yellow and black sections on top. Immediately next to these relays on the left are two (2) red round MOV or metal oxide varistors. Throughout the IS200TREGH1BEC there are several small sized yellow steady on capacitors, mainly located in the bottom half of the circuit board. The right edge of the IS200TREGH1BEC is lined with three (3) medium jack connector ports, named JZ1, JY1 and JX1. There are three (3) more of these connector ports, which are smaller than the other connector ports (about half the size of the other connector ports) and have been lined up to the left of these other connector ports. Smaller connector ports have been identified by the names JZ5, JY5, and JX5. Three (3) black variable resistors or potentiometers are located on the upper right of the IS200TREGH1BEC.
