>>>>>型号:IS200TPROS1CBB 保护终端板的装置 印刷电路板
【功能描述】
通用电气将IS200TPROS1CBB创建为Speedtronic Mark VI系列的一个组件。该系列是GE的Mark系列之一。IS200TPROS1CBB是一种称为保护终端板的装置。自1969年在新泽西州首次亮相Mark I以来，通用电气的Mark系列已用于燃气轮机和蒸汽轮机的管理和自动化，已有几十年的历史。

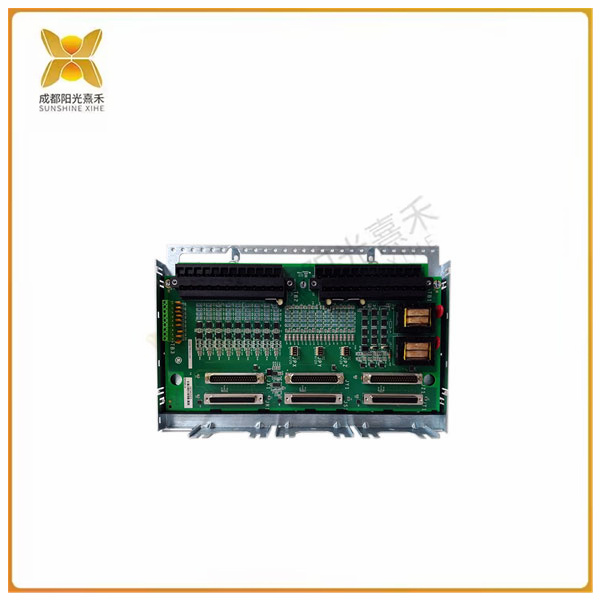

IS200TPROS1CBB是一个长长的印刷电路板，有许多电子元件，从很小到很大。两个黑色接线端子有二十四（24）个金属银色端子。每个都标有从一（1）到四十八（48）的白色数字。沿着IS200TPROS1CBB的另一端是三（3）个大型连接器端口，可用于将其他组件连接到IS200TPROS1CBB。另外三（3）个连接器端口（大约是其他端口的一半）位于这些端口左侧的垂直线上。两（2）个中间为红色和黄色的大型继电器已在中心的IS200TPROS1CBB顶部垂直配对。红色金属氧化物压敏电阻或MOV直接放置在这些MOV的左侧。IS200TPROS1CBB下半部分的大部分被一组形状像黑色矩形的二极管占据。这些二极管水平排列。许多非常小的电阻器覆盖着蓝色和黑色的条带，沿着IS200TPROS1CBB的长度垂直排列。许多非常小的银电容器也排列在IS200TPROS1CBB的左侧。
>>>>>型号:IS200TPROS1CBB 保护终端板的装置 印刷电路板
【英文介绍】
The IS200TDBTH6ACDCD is a device called a discrete simplex board. This is a form of printed circuit board or PCB manufactured by General Electric or GE. The IS200TDBTH6ACDCD is a component of GE's Mark VI series for steam and gas turbine control. The series is one of several that make up the Mark series. These systems are used to control turbine systems in a wide range of industries worldwide.
The IS200TDBTH6ACDCD prominently features a collection of 12 large black potentiometers, which are also known as variable resistors. The potentiometers are arranged in three (3) horizontal rows of four components each. A rectangular gray element is placed on either side of the potentiometer. The lower half of the IS200TDBTH6ACDCD is occupied by several rows of very small components. Two (2) rows of long round red elements, called MOV or metal oxide varistors, are arranged on the left side of the IS200TDBTH6ACDCD. At the very bottom of the IS200TDBTH6ACDCD near the center is a small white connector with three (3) ports. This connection can be used to connect other devices to the IS200TDBTH6ACDCD. Several small integrated circuits can be placed in the top half of the IS200TDBTH6ACDCD. Some of them are aligned horizontally in the center and others are aligned vertically in the upper right corner. There is one (1) small yellow capacitor in the center of the IS200TDBTH6ACDCD of the integrated circuit. Two (2) small yellow resistors are located at the bottom of the IS200TDBTH6ACDCD with one (1) black stripe in the middle.
