>>>>>型号:DS200DCFBG1BJB 电气电源板 电路板组件
【功能描述】
DS200DCFBG1BJB是通用电气制造的电路板组件，是 Mark V Speedtronic 系统的一部分。该DS200DCFBG1BJB用于为驱动器和机柜风扇提供控制级电源。该DS200DCFBG1BJB用于 EX2000 应用以及 DC2000、FC2000、GF2000、ME2000、CB2000 和 AC2000 IGBT 驱动应用。

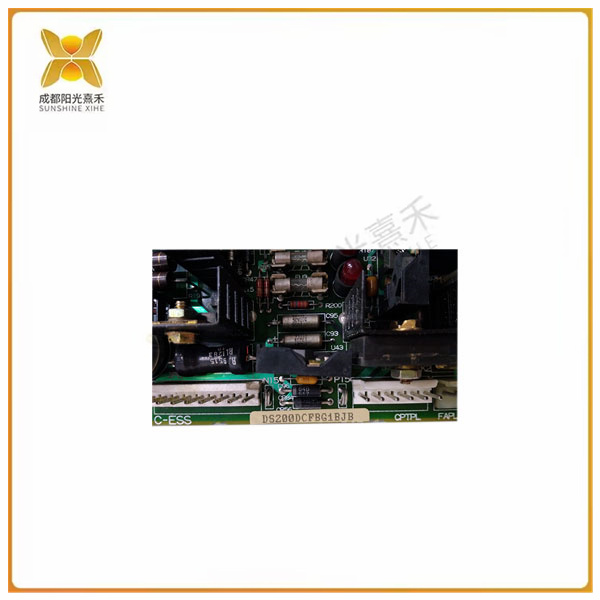

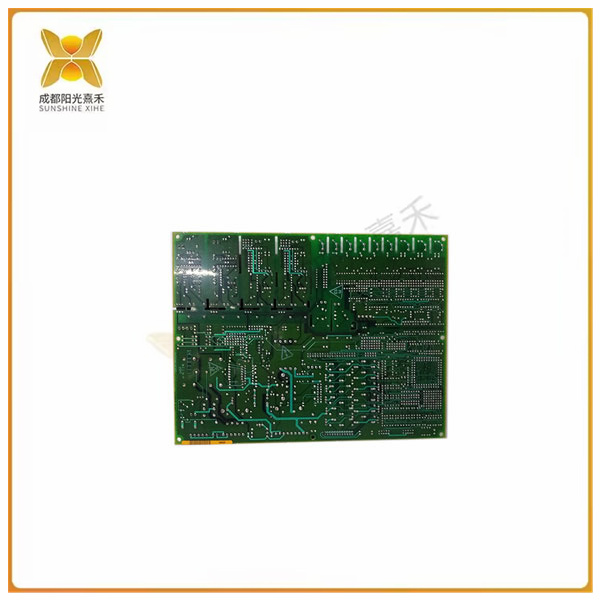

DS200DCFBG1BJB是一个大型矩形电路板，其表面安装了大量组件.其中包括 7 个 4 位 DIP 开关器件和 12 个可配置跳线。六个 DIP 开关一起位于电路板的一侧。这些用于缩放或更改许多不同的输入。例如，开关编号 4 （SW4） 用于调节施加到 VCO 输出桥电路的电压。该板还有一个霓虹灯，用于指示 115 VAC 线路中的保险丝熔断，以及两个 LED 指示灯，用于指示 +24 VDC 线路和 -24 VDC 线路中的保险丝熔断。
其他电路板组件包括测试点、I/O 连接器（1PL-1 至 1PL-40、2PL-1 至 2PL-9、4PL-1 至 4PL-5 和 5PL-1 至 5PL-26），以及保险丝、集成电路、电阻网络和电阻器、电容器、晶体管、散热器、变压器和继电器。该板上的测试点用于检查电压信号。保险丝用于保护。有关电路板组件及其用途的更多详细信息，请参阅通用电气提供的出版物，例如用户指南和手册。这些产品通常随您最初购买时提供。
>>>>>型号:DS200DCFBG1BJB 电气电源板 电路板组件
【英文介绍】
The DS200DCFBG1BJB is a circuit board assembly manufactured by General Electric as part of the Mark V Speedtronic system. The DS200DCFBG1BJB is used to provide control level power to the drive and cabinet fans. The DS200DCFBG1BJB is used for EX2000 applications as well as DC2000, FC2000, GF2000, ME2000, CB2000 and AC2000 IGBT driver applications.
The DS200DCFBG1BJB is a large rectangular circuit board with a large number of components mounted on its surface. These include seven 4-bit DIP switching devices and 12 configurable jumpers. Six DIP switches are located together on one side of the board. These are used to scale or change many different inputs. For example, switch number 4 (SW4) is used to regulate the voltage applied to the VCO output bridge circuit. The board also has a neon sign to indicate a blown fuse in a 115 VAC line, and two LED indicators to indicate a blown fuse in a +24 VDC line and a -24 VDC line.
Other board components include test points, I/O connectors (1PL-1 to 1PL-40, 2PL-1 to 2PL-9, 4PL-1 to 4PL-5, and 5PL-1 to 5PL-26), As well as fuses, integrated circuits, resistance networks and resistors, capacitors, transistors, radiators, transformers and relays. A test point on the board is used to check the voltage signal. The fuse is used for protection. For more detailed information about board components and their uses, please refer to publications provided by GE, such as user guides and manuals. These products are usually provided with your initial purchase.
