>>>>>型号:DS200DCFBG1BKC 电源板Mark V 控制级电源
【功能描述】

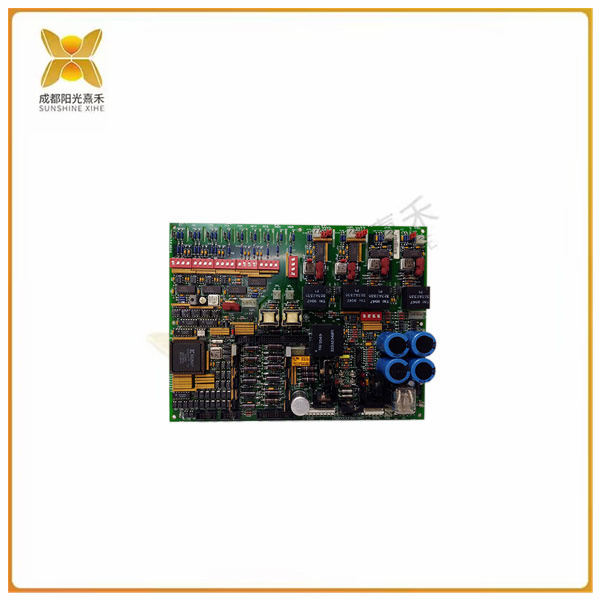

General Electric DS200DCFBG1BKC是一款Mark V系列电源板。当安装在驱动器中时，该板为机柜风扇提供电力以及系统的控制级电源。在GE的变频器系统中，该板与DC2000、AC2000、FC2000、CB2000和ME2000系列变频器兼容。电路板的标称额定源输入可以安全地测量 38 至 115VAC 之间的电压。该卡产生的输出频率可以测量 0 到 500 kHz 之间的任何频率，具体取决于输入电压。
DS200DCFBG1BKC上有五个单独的电路。其中包括控制级电源电路、驱动电路、电机励磁电源电路以及交流和直流监控电路。驱动器上保险丝的诊断信息通过两个 LED 指示灯和一个霓虹灯指示灯呈现给用户。电路板中集成了三个保护保险丝，可保护电流免受中断。当使用卡上的五个测试点之一时，检查电路板中的电压电平很简单。为用户提供了许多可配置的设置，以适应工作的特定需求。板上的 12 个跳线和 7 个 DIP 开关可根据用户要求进行配置。
主板和驱动器包含通用电气概述的安装参数，应遵循这些参数。这些指南将保护整个设备免受任何意外损坏。 请参阅设备的数据表和手册，以获取接线和安装电路板的完整指南。 Mark V 系列的成员由其原始制造商通用电气提供技术支持。
>>>>>型号:DS200DCFBG1BKC 电源板Mark V 控制级电源
【英文介绍】
The General Electric DS200DCFBG1BKC is a Mark V series power supply board. When installed in the drive, the board provides power to the cabinet fans as well as the control level power to the system. In GE's inverter system, the board is compatible with the DC2000, AC2000, FC2000, CB2000 and ME2000 series drives. The board's nominal rated source input can safely measure voltages between 38 and 115VAC. The output frequency produced by the card can measure any frequency between 0 and 500 kHz, depending on the input voltage.
There are five separate circuits on the DS200DCFBG1BKC. These include control level power supply circuits, drive circuits, motor excitation power supply circuits, and AC and DC monitoring circuits. The diagnostic information of the fuse on the drive is presented to the user via two LED indicators and one neon indicator. Three protective fuses are integrated into the circuit board to protect the current from interruption. Checking the voltage level in the board is simple when using one of the five test points on the card. Users are provided with a number of configurable Settings to suit the specific needs of the job. The 12 jumpers and 7 DIP switches on the board can be configured according to user requirements.
Motherboards and drives contain installation parameters outlined by GE, which should be followed. These guidelines will protect the entire device from any accidental damage. Refer to your device's data sheet and manual for a complete guide to wiring and mounting your circuit board. The members of the Mark V Series are technically supported by their original manufacturer, General Electric.
