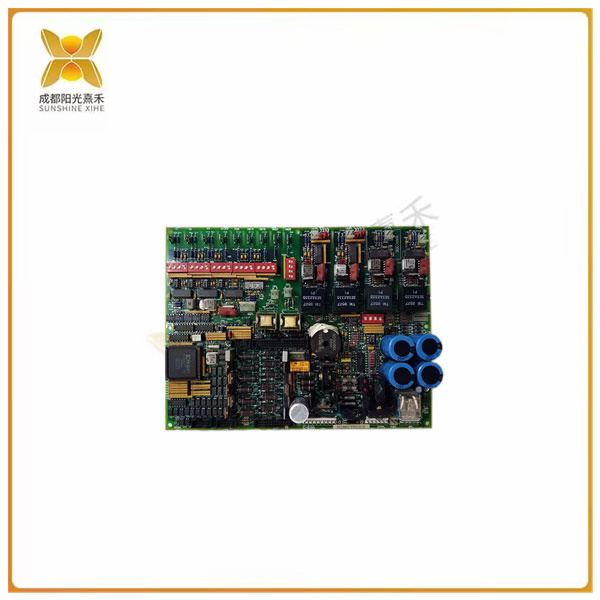

【功能描述】
DS200DCFBG1B是通用电气为Mark V板系列制造的电源板。AC2000、CB2000、DC2000、FC2000、ME2000和EX2000系列机器可以将主板安装在驱动器中。安装后，此卡可以为驱动器提供控制级电源和机柜风扇电源。额定电压在38至115 VAC之间，可通过控制电源变压器直接提供给电路板。电路板的频率取决于输入电压，但范围为0至500 kHz。
该板具有许多电路，用于为电路板和已安装的驱动器供电。DS200DCFBG1B由电机励磁电源、驱动器、AC/DC监控和控制级电源电路组成。板上的12个跳线和7个DIP开关为用户提供了可配置的系统选项。保险丝开关诊断使用电路板上的两个LED和一个霓虹灯指示灯进行。三个保护保险丝可防止电源中断。可以使用电路板上集成的五个测试点来监控电压。
应遵循制造商提供的DS200DCFBG1B和已安装驱动器的安装和存储参数。这些将防止对两个单元造成任何意外或可预防的损坏。有关接线和安装电路板的完整指南，请参阅设备的手册和数据表。最初，该板和Mark V系列的技术支持由制造商通用电气提供。
>>>>>型号:DS200DCFBG1BGB 电源板 主板安装在驱动器中
【英文介绍】
The DS200DCFBG1B is a power supply board manufactured by General Electric for the Mark V board series. AC2000, CB2000, DC2000, FC2000, ME2000 and EX2000 series machines can have the motherboard installed in the drive. When installed, the card provides control level power to the drive and cabinet fan power. The rated voltage is between 38 and 115 VAC and can be supplied directly to the board via a control power transformer. The frequency of the board depends on the input voltage, but ranges from 0 to 500 kHz.
The board has a number of circuits that are used to power the circuit board and the installed drivers. DS200DCFBG1B is composed of motor excitation power supply, driver, AC/DC monitoring and control level power supply circuit. The 12 jumpers and 7 DIP switches on the board provide users with configurable system options. Fuse switch diagnosis is performed using two leds and a neon indicator on the circuit board. Three protective fuses prevent power outages. The voltage can be monitored using five test points integrated on the board.
Installation and storage parameters for DS200DCFBG1B and installed drives provided by the manufacturer should be followed. These will prevent any accidental or preventable damage to both units. For complete guidance on wiring and mounting boards, refer to your device's manual and data sheet. Initially, technical support for the board and the Mark V series was provided by manufacturer General Electric.
