5SHY3545L0020 3BHE014105R0001  |T8110B型|信号转换器|

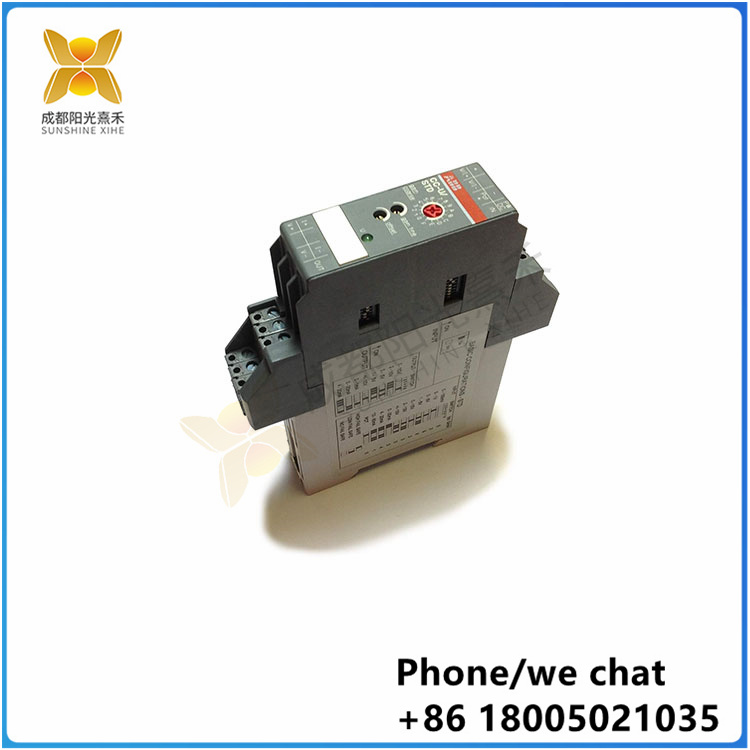

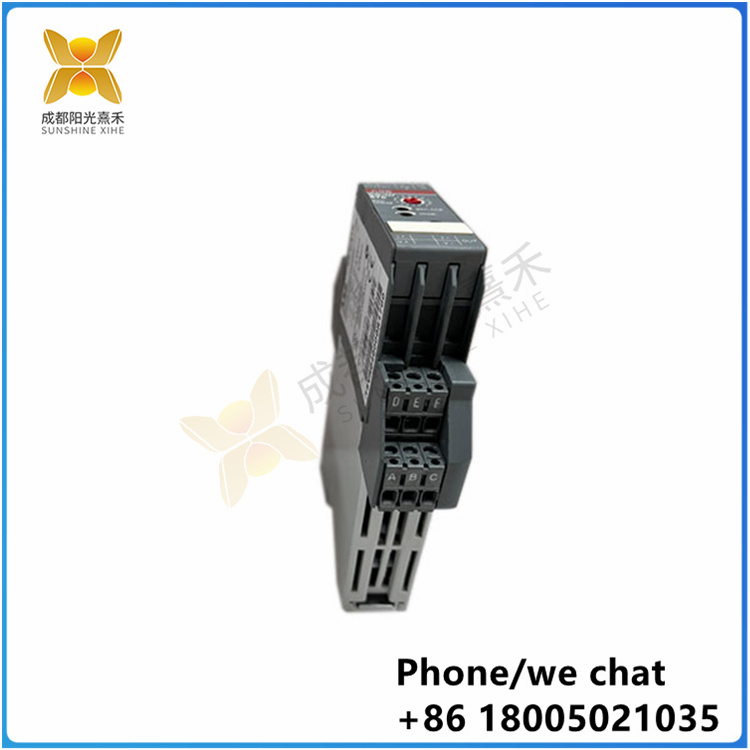

ABB 1SVR040006R0100 是一款通用信号转换器，属于 CC-U/I 系列，主要用于测量和转换电流 RMS 值。以下是该产品的一些关键特点和应用：

功能：1SVR040006R0100 是一种测量转换器，能够测量任何波形的电流 RMS 值。它具有三重电气隔离功能，适用于需要高精度电流测量的应用 。

输入信号：该转换器支持两种输入电流信号范围，分别为 0-1 A 和 0-5 A，通过相应的端子连接进行选择 。

输出信号：提供 41 种输出信号范围（8 种标准和 33 种非标准），可以通过直接可访问的侧边 DIP 开关进行配置。输出信号包括 0 至 ±55 mA 或 0 至 ±11V 。

供电电压：额定控制供电电压为 24-48 V DC，也可以在 24 V AC 下工作 。

电气隔离：具有三重电气隔离，确保信号在传输过程中的安全性和可靠性

The ABB 1SVR040006R0100 is a universal signal converter belonging to the CC-U/I series, which is mainly used to measure and convert current RMS values. Here are some of the key features and applications of the product:

Function: The 1SVR040006R0100 is a measuring converter capable of measuring current RMS values in any waveform. It has triple electrical isolation and is suitable for applications requiring high precision current measurement.

Input signals: The converter supports two input current signal ranges, 0-1 A and 0-5 A, selected through the corresponding terminal connection.

Output signals: 41 output signal ranges (8 standard and 33 non-standard) are available and can be configured with a directly accessible side DIP switch. Output signals include 0 to ±55 mA or 0 to ±11V.

Power supply voltage: The rated control power supply voltage is 24-48 V DC, and can also work under 24 V AC.

Electrical isolation: Triple electrical isolation ensures the safety and reliability of the signal during transmission
