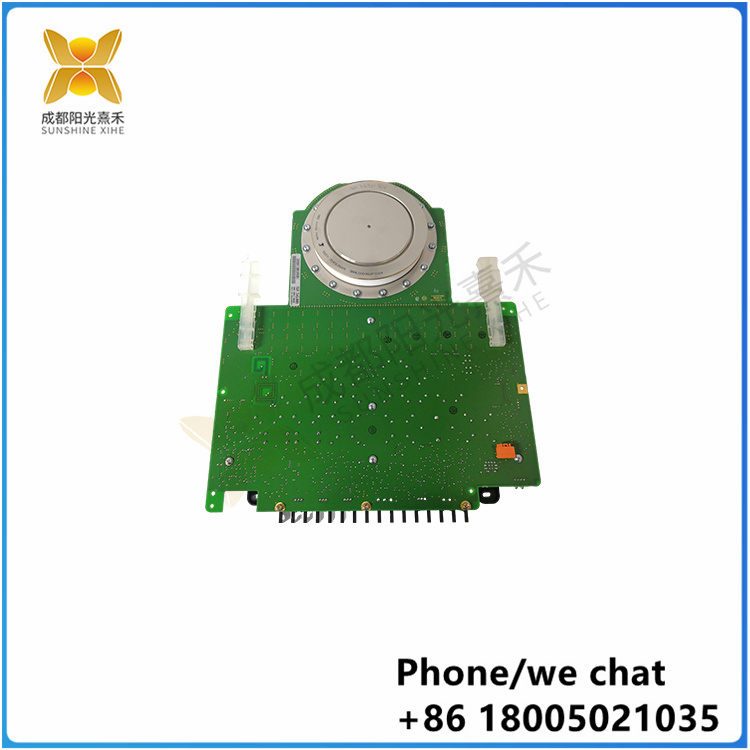

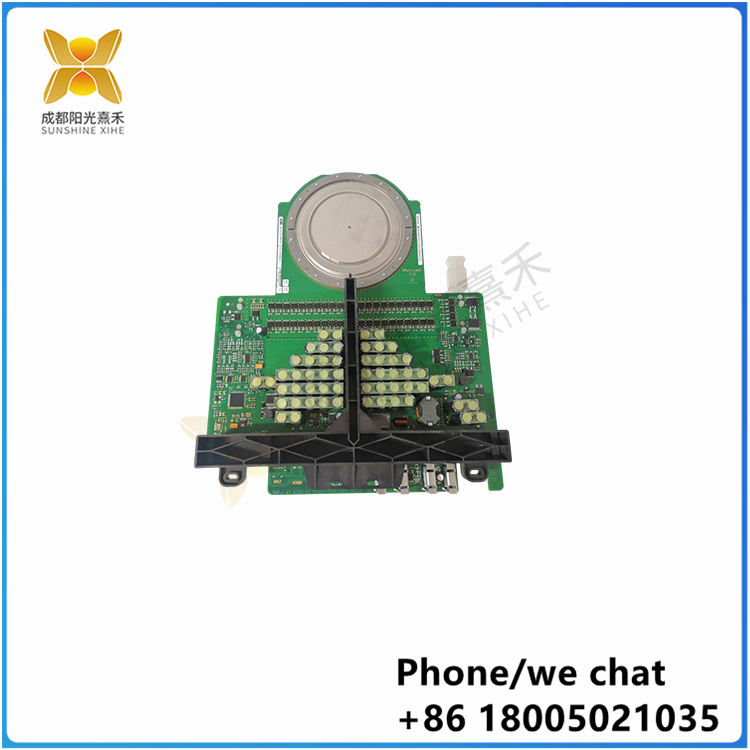

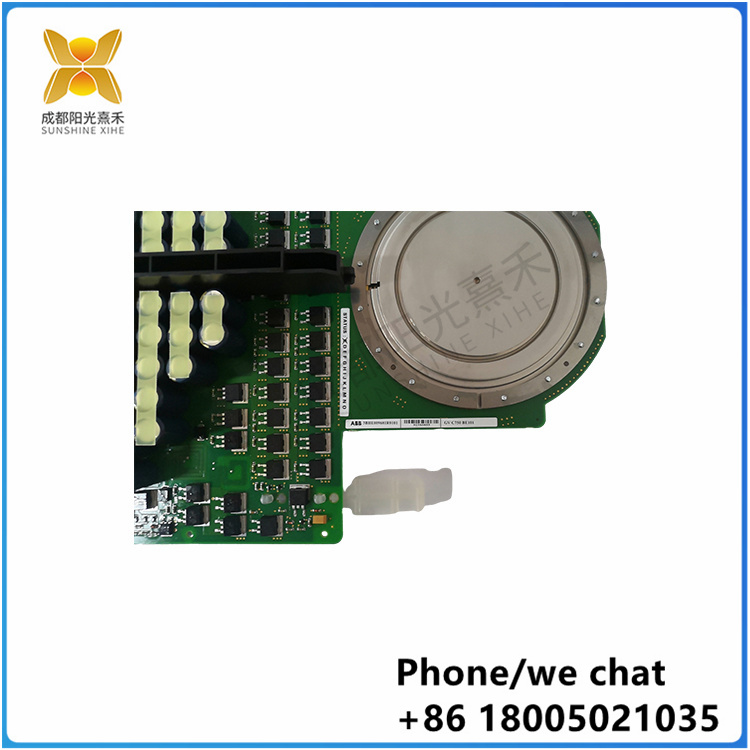

5SHY3545L0020 3BHE014105R0001 |T8110B型|晶闸管|
5SHY3545L0020 3BHE14105R0001 集成门极换流晶闸管（IGCT，Integrated Gate-Commutated Thyristor）是一种结合了GTO（门极可关断晶闸管）和集成门极驱动器优点的高性能电力电子器件。以下是对IGCT的详细解析：
一、定义与特点
定义：IGCT是将门极驱动电路与门极换流晶闸管GCT集成于一个整体形成的大功率半导体器件。
特点：
高可靠性：由于采用了集成门极驱动器，减少了外部元件数量，提高了系统的可靠性。
高开关速度：IGCT具有快速的开通和关断速度，能够实现高频率的开关操作，比GTO快10倍。
低损耗：低导通损耗和低开关损耗使得IGCT在高压大电流的应用场景下具有显著的优势。
低驱动电流：较小的驱动电流使得IGCT的驱动电路更为简单，降低了成本。
二、5SHY3545L0020 3BHE014105R0001 结构与工作原理
结构：IGCT内部由上千个GCT单元组成，阳极和门极共用，而阴极并联一起，是多元功率集成器件。它通常通过印刷电路板将IGCT芯片与其门极驱动电路连接在一起，将门极驱动回路电感限制在nH级，为实现“门极换流”和“硬驱动”奠定了基础。
工作原理：IGCT的导通过程中，门极施以正强电压初瞬，GCT处于NNP晶体管状态，这时晶体管作用大于晶闸管作用。转入导通后，GCT仍可用两正反馈的晶体管等效，强烈的正反馈使两晶体管都饱和导通。其关断过程则借助集成门极电路实现的“门极换流”和“硬驱动”关断过程。
三、5SHY3545L0020 3BHE014105R0001 应用领域
IGCT因其优越的性能特点，被广泛应用于多个领域：
高压直流输电（HVDC）：IGCT的高电压和大电流特性使其成为高压直流输电系统的理想选择。
灵活交流输电系统（FACTS）：通过使用IGCT，可以灵活地控制交流输电线路的电压和阻抗，提高电力系统的稳定性。
电机控制：IGCT可用于高性能电机控制系统中，实现电机的快速、精确控制。
风电变流器：作为主开关器件，IGCT具有快速关断能力和高耐压能力，能够实现高效率的电能转换，同时保证系统的可靠运行。
轨道交通牵引系统：在轨道交通牵引系统中，IGCT作为逆变器的主要开关器件，能够实现高频率的开关动作和低损耗的能量转换，提高牵引系统的效率和可靠性。
5SHY3545L0020 3BHE014105R0001 Integrated Gate commutated thyristor (IGCT, IGCT) Integrated Gate-commutated Thyristor (GTO) is a high-performance power electronic device that combines the advantages of GTO (Gate Commutated Thyristor) and Integrated Gate driver. The following is a detailed analysis of IGCT:
I. Definition and characteristics
Definition: IGCT is a high-power semiconductor device that integrates gate drive circuit and gate commutated thyristor GCT into a whole.
Features:
High reliability: Thanks to the integrated gate driver, the number of external components is reduced and the reliability of the system is improved.
High switching speed: IGCT has fast switching on and off speeds, enabling high frequency switching operation, up to 10 times faster than GTO.
Low loss: Low on-off loss and low switching loss make IGCT have significant advantages in high voltage and high current application scenarios.
Low drive current: The smaller drive current makes the IGCT drive circuit simpler and reduces the cost.
Second, 5SHY3545L0020 3BHE014105R0001 Structure and working principle
Structure: IGCT is composed of thousands of GCT units, the anode and gate are shared, and the cathode is connected in parallel, which is a multi-power integrated device. It usually connects the IGCT chip with its gate drive circuit through a printed circuit board, and limits the inductance of the gate drive circuit to the nH level, which lays the foundation for the realization of "gate commutation" and "hard drive".
Working principle: In the process of IGCT conduction, the gate imposes a positive voltage at the initial moment, and GCT is in the NNP transistor state, and the transistor action is greater than the thyristor action. After switching to the on-off, GCT can still be equivalent to two positive feedback transistors, and strong positive feedback makes both transistors saturated on-off. The turn-off process is realized by "gate commutation" and "hard drive" turn-off process of integrated gate circuit.
Third, 5SHY3545L0020 3BHE014105R0001 Application field
Because of its superior performance characteristics, IGCT is widely used in many fields:
High Voltage Direct current (HVDC) : The high voltage and high current characteristics of IGCT make it ideal for HVDC transmission systems.
Flexible AC Transmission System (FACTS) : By using IGCT, the voltage and impedance of AC transmission lines can be flexibly controlled to improve the stability of the power system.
Motor control: IGCT can be used in high-performance motor control systems to achieve fast and accurate motor control.
Wind power converter: As the main switching device, IGCT has fast turn-off capability and high voltage resistance, which can realize efficient power conversion and ensure reliable operation of the system.
Rail transit traction system: In the rail transit traction system, IGCT as the main switching device of the inverter, can achieve high frequency switching action and low loss of energy conversion, improve the efficiency and reliability of the traction system.
