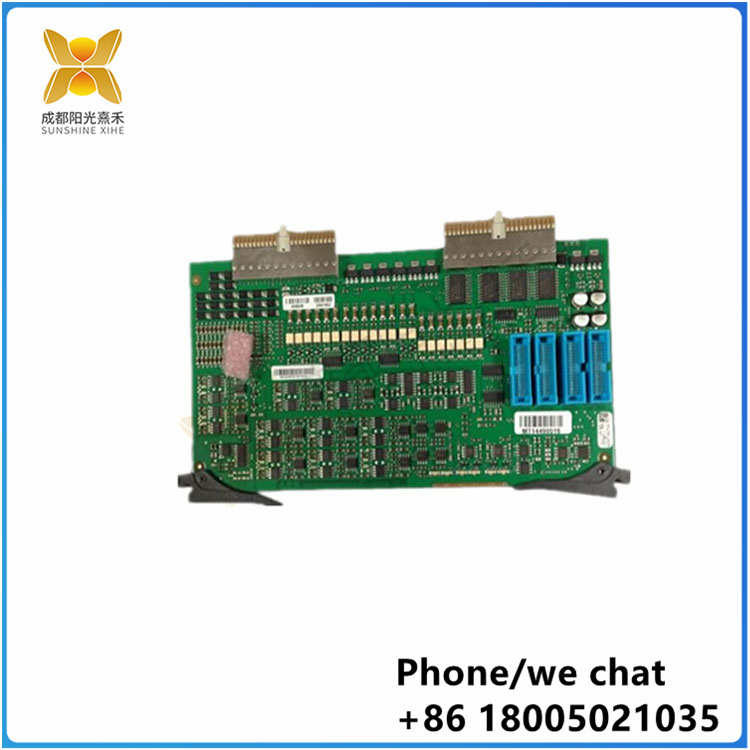

3BHB009162P0001|T8110B|信号调理板|

3BUS208797-001信号调理板，也称为信号调理模块或信号调理单元，是工业自动化控制系统中的一个重要组成部分。它主要负责将传感器输出的信号进行预处理，使其满足后续信号处理或控制系统对信号质量的要求。以下是对信号调理板的详细解析：

一、定义与作用

定义：信号调理板是一种电子设备，用于对传感器输出的原始信号进行放大、滤波、隔离、转换等处理，以便后续的信号处理系统能够准确、可靠地接收和处理这些信号。

作用：

信号放大：增强传感器输出的微弱信号，使其达到后续电路或系统所需的电平。

信号滤波：去除信号中的噪声和干扰，提高信号的信噪比。

信号隔离：防止信号之间的相互影响，保护系统免受电气干扰。

信号转换：将传感器输出的非标准信号（如电流、电压、频率等）转换为系统所需的标准信号（如模拟信号、数字信号等）。

二、主要类型

信号调理板可以根据不同的应用场景和需求进行分类，常见的类型包括：

模拟信号调理板：用于处理模拟信号，如电压、电流等。

数字信号调理板：用于处理数字信号，如频率、脉冲等。

特殊功能调理板：如温度信号调理板、压力信号调理板等，针对特定类型的传感器信号进行处理。

三、3BUS208797-001应用场景

信号调理板广泛应用于工业自动化、过程控制、仪器仪表、航空航天、交通运输等领域。在工业自动化控制系统中，信号调理板通常与传感器、PLC（可编程逻辑控制器）、DCS（分散控制系统）等设备配合使用，实现对生产过程的监测和控制。

四、3BUS208797-001选择与配置

在选择和配置信号调理板时，需要考虑以下因素：

传感器类型：根据传感器的输出信号类型（如模拟信号、数字信号等）和特性（如量程、精度等）选择合适的信号调理板。

系统需求：根据控制系统的需求（如信号放大倍数、滤波频率、隔离电压等）确定信号调理板的参数。

环境适应性：考虑信号调理板在工作环境中的适应性（如温度、湿度、电磁干扰等）。

性价比：在保证性能和质量的前提下，选择性价比高的信号调理板。

3BUS208777-001 Signal conditioning board, also known as signal conditioning module or signal conditioning unit, is an important part of the industrial automation control system. It is mainly responsible for preprocessing the signal output by the sensor, so that it can meet the requirements of subsequent signal processing or control system for signal quality. The following is a detailed analysis of the signal conditioning board:

Definition and function

Definition: The signal conditioning board is an electronic device used to amplify, filter, isolate, and convert the original signal output of the sensor, so that the subsequent signal processing system can accurately and reliably receive and process these signals.

Functions:

Signal amplification: The weak signal output by the sensor is enhanced to reach the level required by the subsequent circuit or system.

Signal filtering: remove the noise and interference in the signal, improve the signal to noise ratio.

Signal isolation: prevents the interaction between signals and protects the system from electrical interference.

Signal conversion: The sensor output of non-standard signals (such as current, voltage, frequency, etc.) into the system required standard signals (such as analog signals, digital signals, etc.).

Two, the main types

Signal conditioning boards can be classified according to different application scenarios and needs, common types include:

Analog signal conditioning board: used to process analog signals, such as voltage, current, etc.

Digital signal conditioning board: used to process digital signals, such as frequency, pulse, etc.

Special function conditioning board: such as temperature signal conditioning board, pressure signal conditioning board, etc., for specific types of sensor signals processing.

3. Application Scenarios of 3BUS208777-001

Signal conditioning board is widely used in industrial automation, process control, instrumentation, aerospace, transportation and other fields. In the industrial automation control system, the signal conditioning board is usually used with sensors, PLC (programmable logic controller), DCS (distributed control system) and other equipment to achieve the monitoring and control of the production process.

4. 3BUS208777-001 Selection and configuration

When selecting and configuring the signal conditioning board, the following factors need to be considered:

Sensor type: Select the appropriate signal conditioning board according to the output signal type of the sensor (such as analog signal, digital signal, etc.) and characteristics (such as range, accuracy, etc.).

System requirements: Determine the parameters of the signal conditioning board according to the requirements of the control system (such as signal amplification, filtering frequency, isolation voltage, etc.).

Environmental adaptability: Consider the adaptability of the signal conditioning board in the working environment (such as temperature, humidity, electromagnetic interference, etc.).

Cost performance: under the premise of ensuring performance and quality, choose a cost-effective signal conditioning board.
