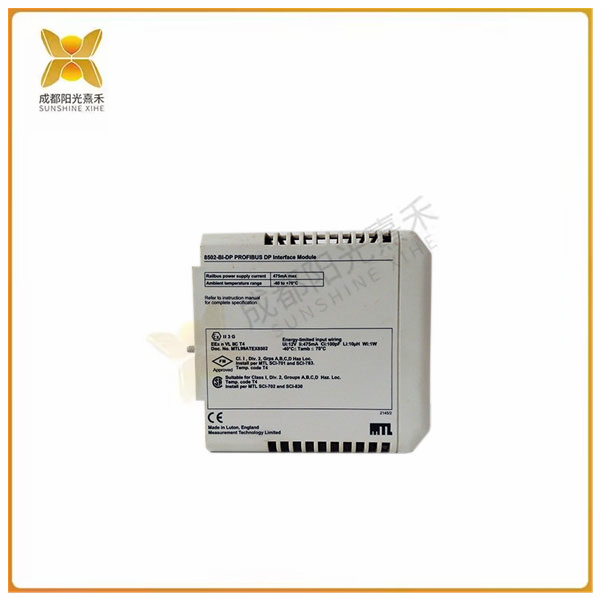

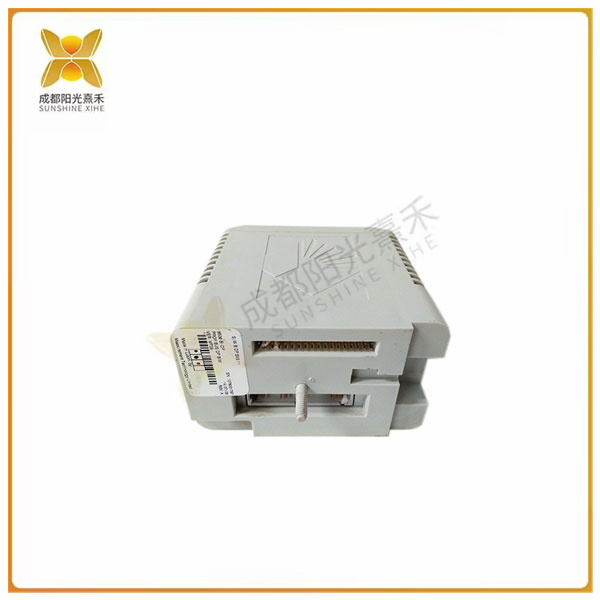

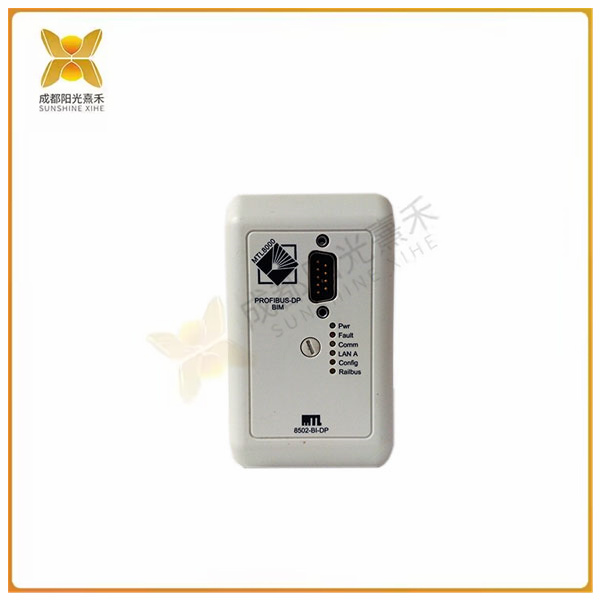

>>>>>型号:8502-BI-DP 总线接口模块 支持多达 24 个 I/O 模块
【功能描述】
品牌:MTL Instruments
产品编号:8502-BI-DP
产品类型:总线接口模块(BIM)
Profibus协议
将节点MTL8000连接到Profibus-DP主机LAN
支持多达24个I/O模块
通过Profibus-DP的HART过程和状态变量
模块和通道状态的扩展诊断
LAN速度高达6 Mbaud
用于配置的非易失性存储器
可通过本地端口或Profibus主机进行软件配置
通过通信适配器进行HART®维护
重量:0.350公斤
8502-BI-DP(Bus Interface Module)BIM提供8000系列I/O模块与a之间的通信链路profibus–dp主机。它从模块中高速采集数据而局域网的运行速度高达6mbaud,允许主机对快速响应控制过程中的条件。
BIM收集I/O模块的数据并制作可根据主人的要求提供。它是Profibus主机的一个奴隶。以及循环数据交换,这是读取输入所必需的BIM支持Profibus Extended,支持输出数据的写入诊断状态信息。它还支持许多已经实现的特殊功能,以允许高完整的系统操作和现场维护。
◆连接MTL8000节点到Profibus-DP主机局域网
◆最多支持24个I/O模块HART过程和状态变量通过Profibus-DP
◆扩展模块和通道状态诊断
◆局域网速度高达6mbaud
◆配置用非易失性存储器
◆软件可通过本地端口或Profibus主机配置HART®通过通信适配器进行维护
>>>>>型号:8502-BI-DP 总线接口模块 支持多达 24 个 I/O 模块
【英文介绍】
Brand: MTL Instruments
Product Number: 8502-BI-DP
Product Type: Bus Interface Module (BIM)
Profibus protocol
Connect node MTL8000 to the Profibus-DP host LAN
Supports up to 24 I/O modules
HART procedures and state variables through Profibus-DP
Extended diagnostics of module and channel state
LAN speeds up to 6 Mbaud
Non-volatile memory for configuration
The software can be configured through the local port or the Profibus host
HART® maintenance via communication adapter
Weight: 0.350 kg
8502-BI- Bus Interface Module (DP) The BIM provides a communication link between the 8000 series I/O modules and the A profibus -DP host. It collects data from modules at high speeds while the LAN operates at speeds up to 6mbaud, allowing the host to respond quickly to conditions during control.
BIM collects data from I/O modules and makes them available at the owner's request. It's a slave to the Profibus mainframe. As well as cyclic data exchange, which is necessary to read the input BIM supports Profibus Extended, which supports writing diagnostic status information to the output data. It also supports a number of special features that have been implemented to allow for high integrity system operation and field maintenance.
◆ Connect the MTL8000 node to the Profibus-DP host LAN
◆ Supports up to 24 I/O module HART processes and state variables via Profibus-DP
◆ Expansion module and channel status diagnosis
◆ LAN speed up to 6mbaud
◆ Configure with non-volatile memory
The software can be maintained via a local port or Profibus host configured with HART® via a communication adapter
