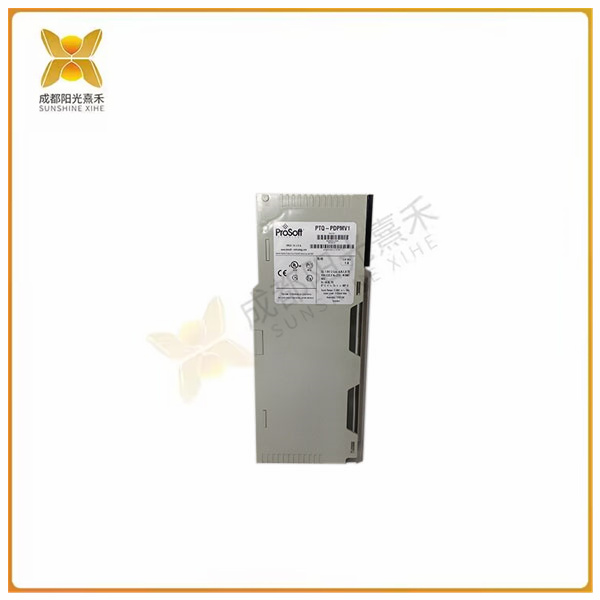

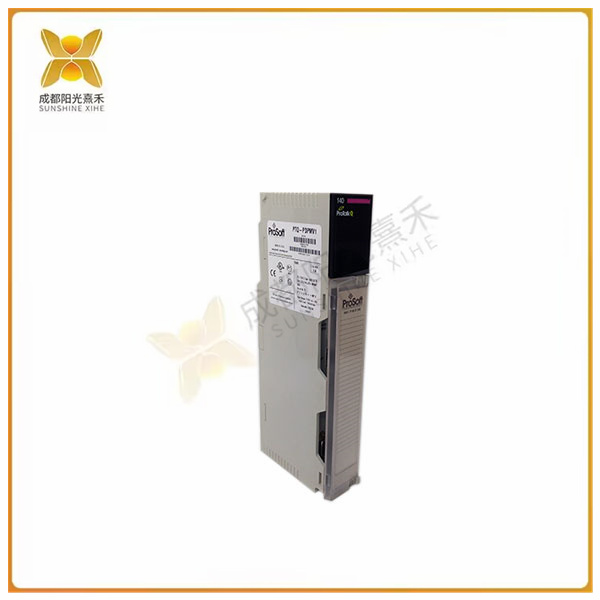

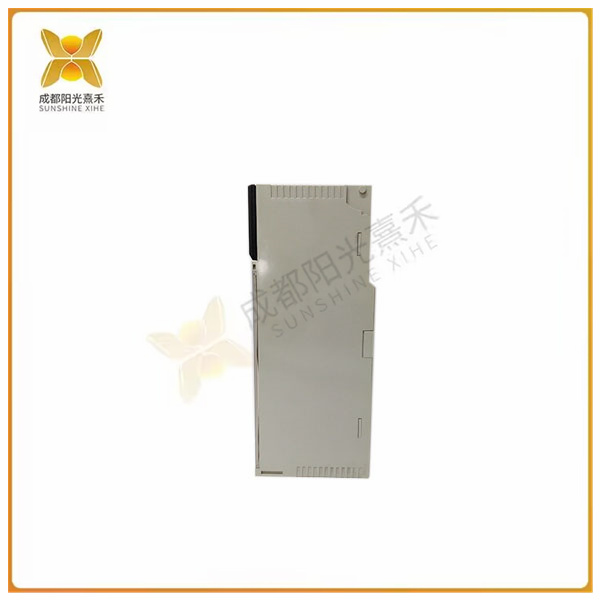

>>>>>型号:PTQ-PDPMV1 主站网络接口模块 PTQ-PDPMV1
【功能描述】
PROFIBUS DPV1 主站模块是一款强大的基于 Quantum® 处理器平台的通信接口模块。该模块经授权开发,集成了专利背板技术,能够与处理器进行高效的数据交换。
该模块支持完整的 Profibus-DP 主站规格,符合 IEC 61158 标准。非循环参数数据可通过类别 1 或类别 2 的 DPV1 服务进行传输,从而使处理器通过该模块与支持 PROFIBUS DPV0/V1 协议的从站设备轻松实现通信。
该模块在 PROFIBUS 网络和处理器之间完成协议转化和数据传输的时候被视为系统本身的输入/输出模块。处理器的数据传输与 PROFIBUS 网络上的 I/O 数据传输异步。
特性 优势
易于配置和管理
可以利用 ProSoft Configuration Builder,用于设计、配置和监视 PROFIBUS 网络
可以采用 PROFIBUS DPV1 主站 FDT (现场设备工具) 通信 DTM (PROFIBUS comDTM) 软件,用于连接任何兼容的 FDT 软件的载体、FDT 设备 DTM 和适用的 PROFIBUS 从站设备
可通过以太网接口配置 PTQ 模块和 PROFIBUS 网络
获得业内认可
具有 Schneider Electric CAPP (施耐德电气自动化合作伙伴联盟计划) 认证
获得 PROFIBUS 贸易组织 (PTO) 认证
经久耐用,稳定可靠
该模块基于西门子 ASIC ASPC2 Step E 协议芯片,并采用英飞凌 C165 微处理器
固件可通过闪存升级
符合 Unity HEC 热备用功能规范。
每个机架支持最多 6 个 PTQ PDPMV1 模块 (最多 4 个用于实施热备情况下使用)
支持扩展诊断数据、报警指示和确认处理、组播和广播报文 (DPV1)
>>>>>型号:PTQ-PDPMV1 主站网络接口模块 PTQ-PDPMV1
【英文介绍】
The PROFIBUS DPV1 master module is a powerful communication interface module based on the Quantum® processor platform. Developed under license, the module integrates patented backplane technology to enable efficient data exchange with the processor.
The module supports the full Profibus-DP master station specification, according to IEC 61158. Acyclic parameter data can be transmitted through the DPV1 service of Class 1 or Class 2, allowing the processor to easily communicate with slave devices that support the PROFIBUS DPV0/V1 protocol through this module.
This module is regarded as the input/output module of the system itself when the protocol conversion and data transmission between the PROFIBUS network and the processor are completed. The data transfer of the processor is asynchronous with the I/O data transfer on the PROFIBUS network.
Characteristic advantage
Easy to configure and manage
ProSoft Configuration Builder can be used to design, configure, and monitor PROFIBUS networks
The PROFIBUS DPV1 master FDT (Field Equipment Tool) communication DTM (PROFIBUS comDTM) software can be used to connect any compatible FDT software carrier, FDT device DTM and applicable PROFIBUS slave device
PTQ modules and PROFIBUS networks can be configured via an Ethernet interface
Gain industry recognition
Certified by Schneider Electric CAPP (Schneider Electric Automation Partner Alliance Program)
Certified by the PROFIBUS Trade Organization (PTO)
Durable, stable and reliable
The module is based on the Siemens ASIC ASPC2 Step E protocol chip and uses the Infineon C165 microprocessor
Firmware can be upgraded via flash memory
Conforms to the Unity HEC Hot Standby function specification.
Supports up to 6 PTQ PDPMV1 modules per rack (up to 4 for hot backup)
Support for extended diagnostic data, alarm indication and acknowledgement processing, multicast and broadcast messages (DPV1)
