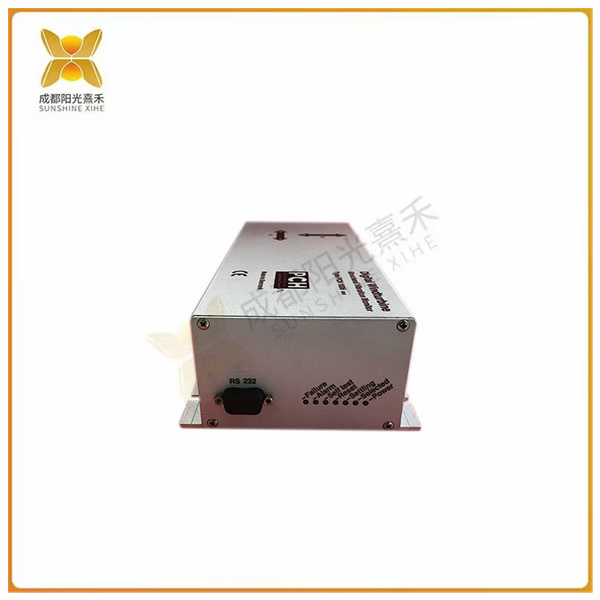

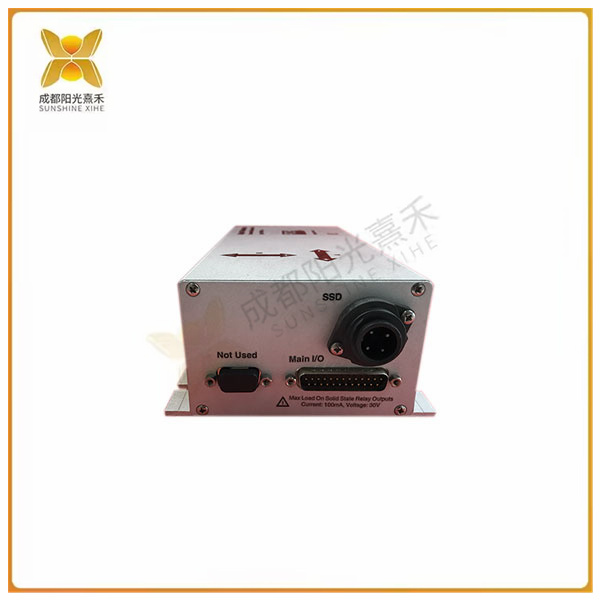

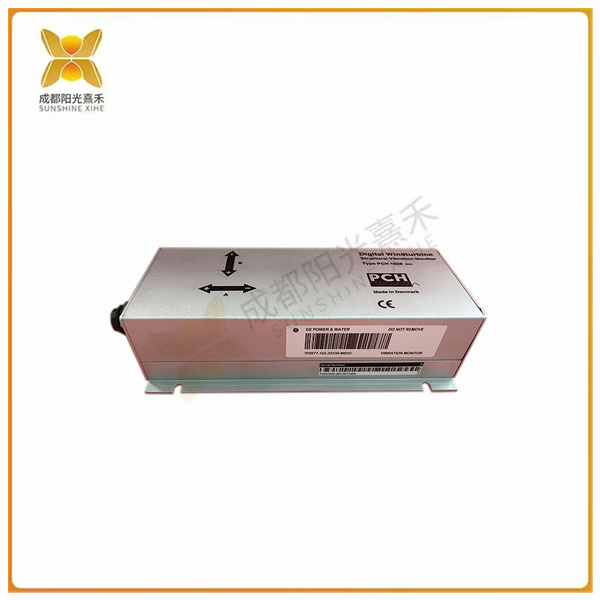

>>>>>型号:PCH1026 数字式风力发电机结构振动监测仪
【功能描述】
数字式风力发电机结构振动监测仪
使用
·低频结构的永久监测
以及地震振动
应用程序
·风力涡轮机
-塔架振动
-传动系统振荡(螺距涡轮机)
-叶片横向振动(失速涡轮机)
·铁塔
·烟囱
·桥梁
·建筑
-地震振动符合ISO4866
配置与设置
·安装和配置可以通过
串行RS-232端口使用提供的设置和
监控PC程序CHT 1012。所有设置
可现场更换。
·设置和显示也可以远程执行
通过可选的RS-485连接外部
PC机或控制器，如WTC或过程控制器
·登录PC软件保存记录
特定监视器中的设置，由
仪器序列号
特性
·3个内部振动传感器(加速度计)
·A、B、C三个方向的三轴测量
·全向塔监控
-行之有效的最佳监控塔
·方便监控多达4个不同的频率
独立地，从每个传感器一个或最多4个
不同的频率从一个传感器
·经过验证的过滤技术，基于经验
下列应用程序
·测量均方根、最大值。峰值或峰值值
·1 - 4个独立的工业标准4- 20ma输出
·4个可编程独立报警继电器
开关功能和1个系统故障继电器
·可编程报警阈值和延迟时间
独立用于每个报警继电器
·传感器和内部恒定看门狗
电子电路。故障在故障安全系统故障继电器上显示
·所有传感器和电子电路的测试功能。
·设计用于恶劣环境，包括
温度、电噪声干扰和湿度。
·实现客户定义的可能性
监控算法，让客户有所不同
从竞争对手那里
>>>>>型号:PCH1026 数字式风力发电机结构振动监测仪
【英文介绍】
DIGITAL WINDTURBINE STRUCTURAL VIBRATION MONITOR
USES
· Permanent monitoring of low frequency structural
and seismic vibrations
APPLICATIONS
· Wind turbines
- Tower vibrations
- Drive Train oscillations (pitch turbines)
- Edgewise blade vibrations (stall turbines)
· Steel towers
· Chimneys
· Bridges
· Buildings
- Seismic vibrations according to ISO4866
CONFIGURATION & SETUP
· Setup and configuration can be performed via
seriel RS-232 port using the supplied setup and
monitoring PC program CHT 1012. All settings
can be changed on site.
· Setup and Display can also be performed remote
through optional RS-485 connection from external
PC or controller, e.g. WTC or Process controller
· A log in the PC software keeps record of the
settings in the particular monitor, identified by
instrument serial no.
FEATURES
· 3 internal vibration sensors (accelerometers)
· Triaxial measurements in A, B and C directions
· OmniDirectional Tower Monitoring
- Proven optimal monitoring of towers
· Facilitates monitoring of up to 4 different frequencies
indpendently, either one from each sensor or up to 4
different frequencies from one sensor
· Proven filter techniques, based on experience with
windturbine applications
· Measures RMS, Max. Peak or Peak-Peak values
· 1 - 4 independent industrial standard 4-20mA outputs
· 4 independent Alarm relays with programmable
make/break function and 1 System Failure relay
· Programmable Alarm thresholds and Delay times
independently for each Alarm Relay
· Internal constant watchdog of both sensors and
electronic circuits. Failures are indicated on the failsafe System Failure relay
· Test function for all sensors and electronic circuits.
· Designed for rough environments, both regarding
temperature, electric noise interference and humidity.
· Possibility of implementation of customer defined
monitoring algorithms, alowing customers to differ
from their competitors
