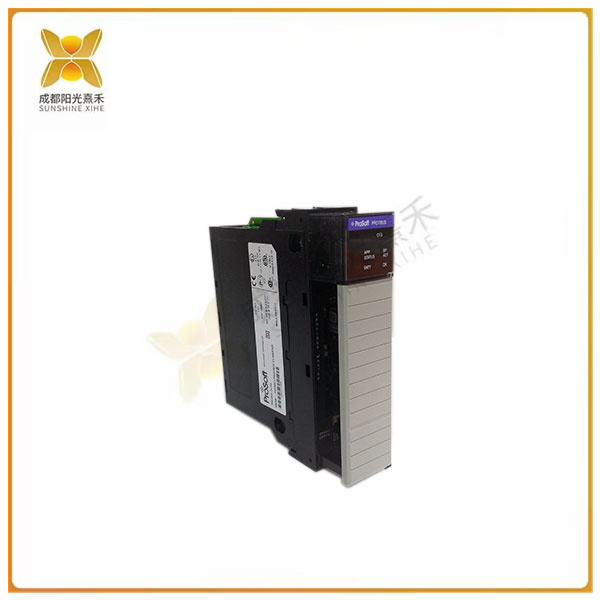

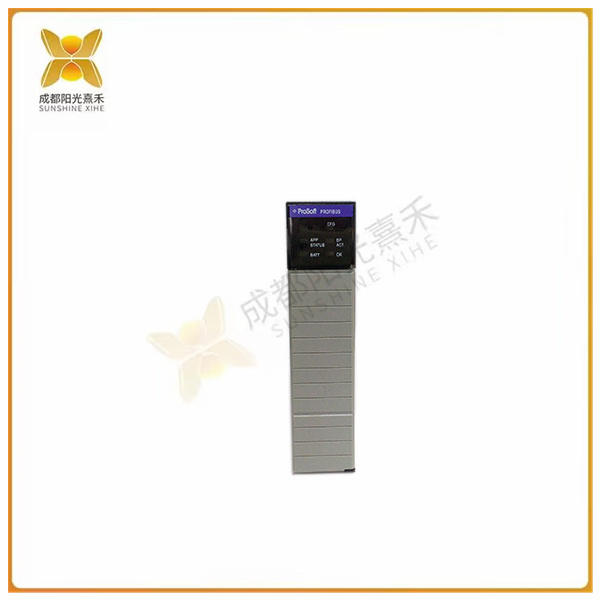

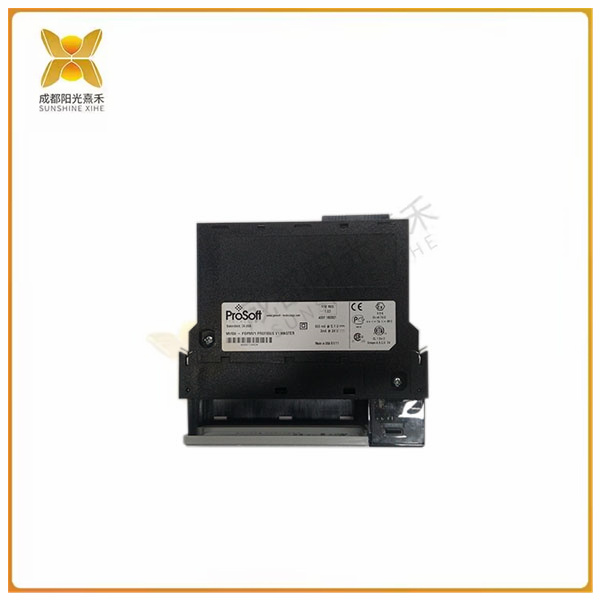

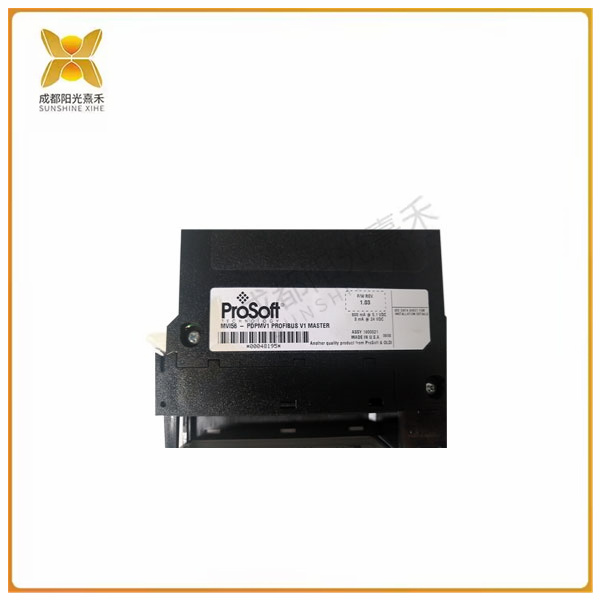

MVI56-PDPMV1 主站网络接口模块 从站设备进行通信

>>>>>型号:MVI56-PDPMV1 主站网络接口模块 从站设备进行通信

【功能描述】

MVI56 PROFIBUS DP-V1 主站网络接口模块允许 ControlLogix 处理器轻松与支持 PROFIBUS DP-V0 和 DP-V1 协议的从站设备进行通信。该模块充当PROFIBUS网络和处理器之间的输入/输出模块，支持符合IEC 61158的完整主站规范。

特点和优势

该模块支持符合 IEC 61158 的完整主规范。非循环参数数据可以通过 1 类或 2 类 DPV1 服务传输，使处理器能够轻松地与支持 PROFIBUS DPV0/V1 协议的从设备进行通信。

该模块充当PROFIBUS网络和ControlLogix处理器之间的输入/输出模块。来自处理器的数据传输与PROFIBUS网络上的I/O数据传输是异步的。数据库由用户定义并存储在模块中，以保存协议所需的数据。

规格

单插槽 - 兼容 1756 背板

该模块被识别为输入/输出模块，并可以访问处理器内存，以便在处理器和模块之间传输数据

梯形逻辑用于模块和处理器之间的数据传输。包括示例梯形图文件（附加说明）。

本地或远程机架

可配置的 I/O 背板尺寸可为远程机架应用提供最佳性能

已启用 CIPconnect™。模块支持使用罗克韦尔自动化以太网接口通过以太网路由与 ProSoft Configuration Builder 和 FDT comDTM 进行通信。

 >>>>>型号:MVI56-PDPMV1 主站网络接口模块 从站设备进行通信

【英文介绍】

The MVI56 PROFIBUS DP-V1 master network interface module allows the ControlLogix processor to easily communicate with slave devices that support the PROFIBUS DP-V0 and DP-V1 protocols. The module acts as an input/output module between the PROFIBUS network and the processor, supporting the complete master station specification according to IEC 61158.

Characteristics and advantages

The module supports the complete master specification conforming to IEC 61158. Acyclic parameter data can be transmitted via Class 1 or Class 2 DPV1 services, enabling the processor to easily communicate with slave devices that support the PROFIBUS DPV0/V1 protocol.

This module acts as an input/output module between the PROFIBUS network and the ControlLogix processor. The data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network. The database is defined by the user and stored in the module to hold the data required by the protocol.

specification

Single slot - Compatible with 1756 backplane

The module is recognized as an input/output module and has access to processor memory to transfer data between the processor and the module

Ladder logic is used for data transfer between modules and processors. Includes a sample ladder diagram file (additional instructions).

Local or remote rack

Configurable I/O backplane sizes provide optimal performance for remote rack applications

CIPconnect™ is enabled. The module supports communication with ProSoft Configuration Builder and FDT comDTM via Ethernet routing using the Rockwell Automation Ethernet interface.
