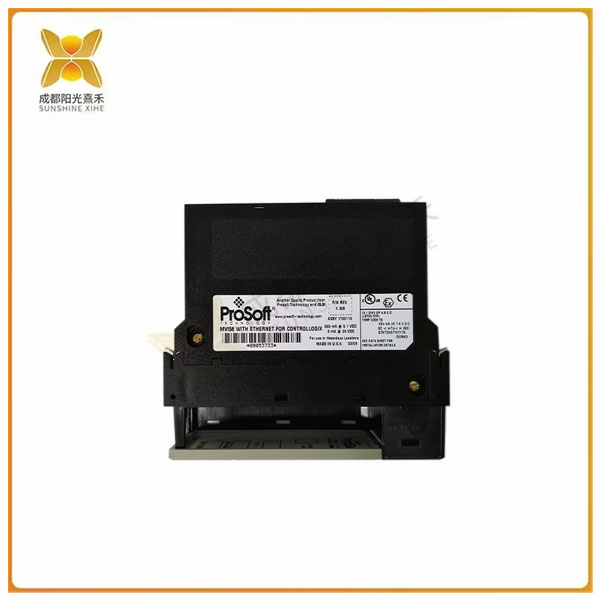

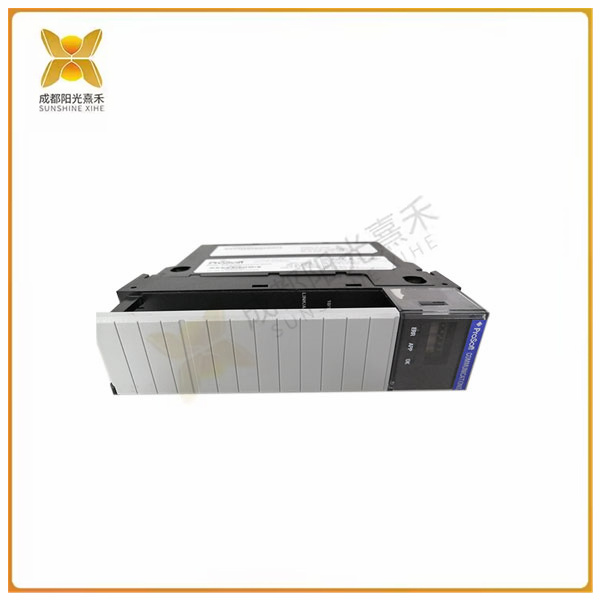

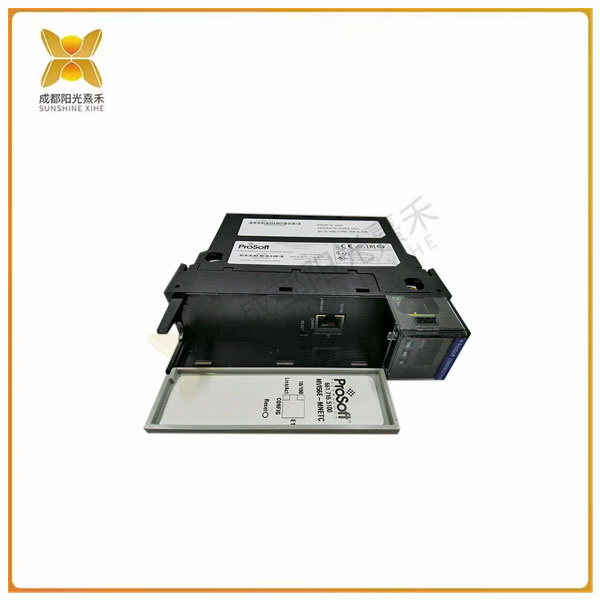

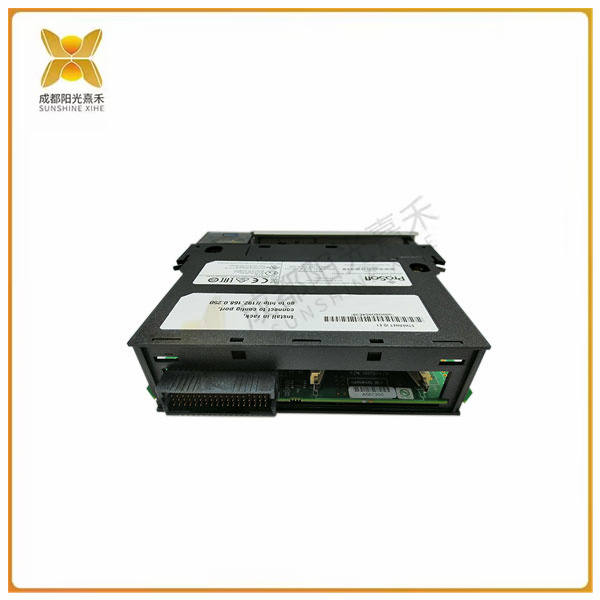

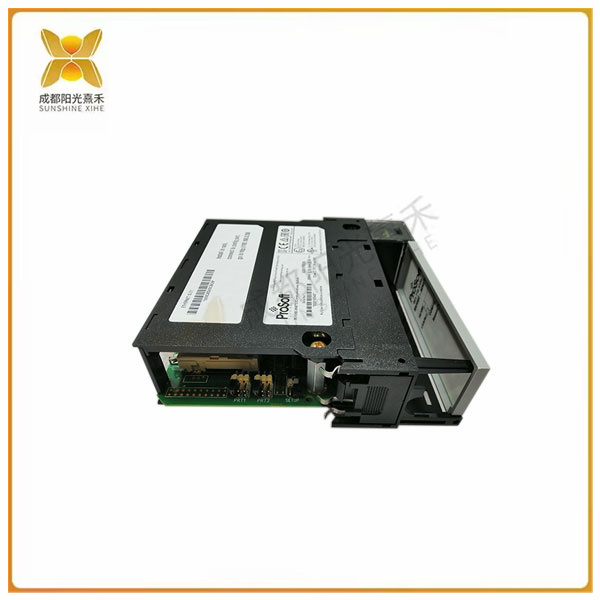

>>>>>型号:MVI56-MNETC 增强通信模块 以太网交叉配置自动检测端口与应用
【功能描述】
当你需要 Modbus® TCP/IP 通信，MVI56E-MNETC/MNETCXT 模块绝对是你
的最佳选择。Modbus TCP / IP 增强通信模块支持罗克韦尔自动化
ControlLogix 可编程自动化控制器（PAC）轻松连接 Modicon 可编程自动化控
制器（PAC），以及多个 Modbus TCP/IP 服务器兼容的仪器和设备。多客户端
模块在支持 Modbus TCP/IP 网络上的多个服务器时，支持最多 30 个客户端，
从而提高了性能。它还支持多达 20 个服务器连接，提供与其他 DCS 和 SCADA
系统通信的能力。客户端和服务器功能都可以同时运行，模块还可以作为强大的
数据集中器运行。
MVI56E-MNETC 和 MVI56E-MNETCXT 功能相同。MVI56E-MNETCXT 用于
标准过程应用。MVI56E-MNETCXT 是专为 XT™Logix 控制平台设计的，支持它
在极端环境下运行。该模块可以在较高的工作温度下运行，并具有保护涂层使它
免受恶劣或苛性条件。
MVI56E 增强功能包括通过模块的以太网端口的配置和管理，
CIPconnect®技术则为 ControlNet 和 EtherNet/IP™网络搭线建桥。
一般规格
兼容以前的 MVI56-MNETC 版本
单槽 1756 ControlLogix 背板兼容
10 / 100Mbps 以太网交叉配置自动检测端口与应用
用户定义的模块数据存储器映射多达 10000 个 16 位寄存器
使用 ControlLogix 1756 的另一个和 1756-CNB 模块对 CIPconnect 启用网
络配置和诊断监测。
ProSoft 配置生成器（PCB）软件的支持，基于 Windows 的图形用户界面提供
了简单的产品和网络配置
梯形图逻辑和附加指令（AOI）用于模块和处理器之间的数据传输。
4 个字符，字母-数字，使用简单易懂英语滚动的 LED 显示状态和诊断数据–没有
加密的错误或报警代码。
ProSoft 发现服务（PDS）软件用于网络上的定位模块和分配临时 IP 地址
个性模块-一种非易失性工业级闪存（CF）卡，用于存储网络和模块配置以方便灾
难恢复，允许快速地通过更换 CF 卡替换现场产品
>>>>>型号:MVI56-MNETC 增强通信模块 以太网交叉配置自动检测端口与应用
【英文介绍】
When you need Modbus® TCP/IP communication, the MVI56E-MNETC/MNETCXT module is definitely for you
The best choice. The Modbus TCP/IP enhanced communication module supports Rockwell Automation
ControlLogix Programmable Automation Controller (PAC) easily connects to Modicon programmable automation control
Pacs, as well as multiple Modbus TCP/IP server compatible instruments and devices. multi-client
The module supports up to 30 clients when supporting multiple servers on a Modbus TCP/IP network.
This improves performance. It also supports up to 20 server connections, provided with other DCS and SCADA
The ability of the system to communicate. Both client and server functions can be run at the same time, and modules can also act as powerful
Data concentrator run.
The MVI56E-MNETC and MVI56E-MNETCXT have the same functions. MVI56E-MNETCXT is used
Standard process application. The MVI56E-MNETCXT is designed for the XT™Logix control platform and supports it
Operating in extreme environments. The module can operate at higher operating temperatures and has a protective coating to make it
Protected from harsh or harsh conditions.
MVI56E enhancements include configuration and management of Ethernet ports through modules,
CIPconnect® technology Bridges ControlNet and EtherNet/IP™ networks.
General specification
is compatible with previous MVI56-MNETC versions
single-slot 1756 ControlLogix backplane compatible
10/100Mbps Ethernet cross configuration automatically detects ports and applications
User-defined modular data memory maps up to 10,000 16-bit registers
Enable networking for CIPconnect using another and 1756-CNB module of ControlLogix 1756
Network configuration and diagnostic monitoring.
ProSoft Configuration Builder (PCB) software support, Windows based graphical user interface provided
Simple product and network configuration
Ladder diagram logic and additional instructions (AOI) are used for data transfer between modules and processors.
4 characters, alphanumeric, scrolling LED display of status and diagnostic data in plain English - no
Encrypted error or alarm code.
ProSoft Discovery Service (PDS) software is used to locate modules and assign temporary IP addresses on a network
Personality Module - A non-volatile industrial-grade flash memory (CF) card used to store networks and module configurations for disaster convenience
Difficult to recover, allowing quick replacement of field products by replacing CF cards
