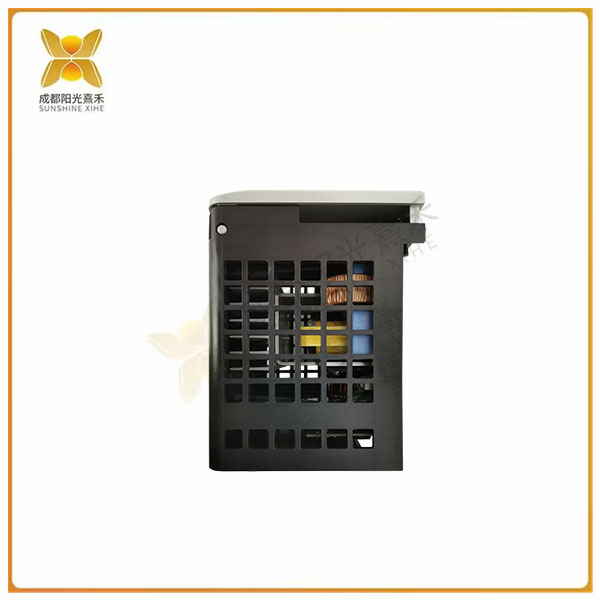

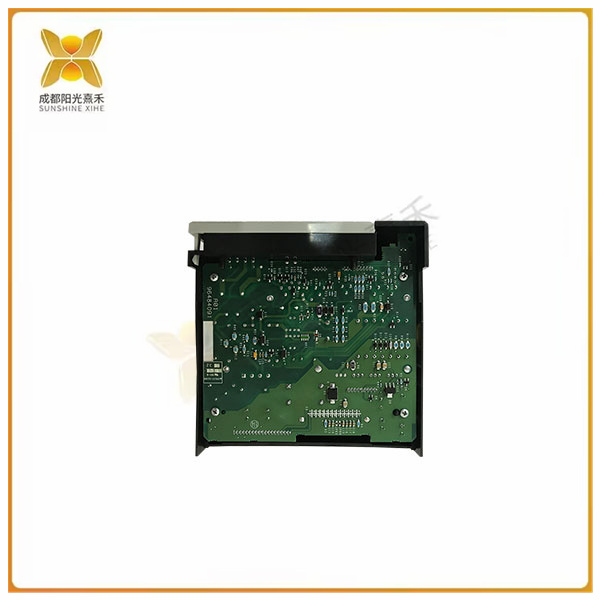

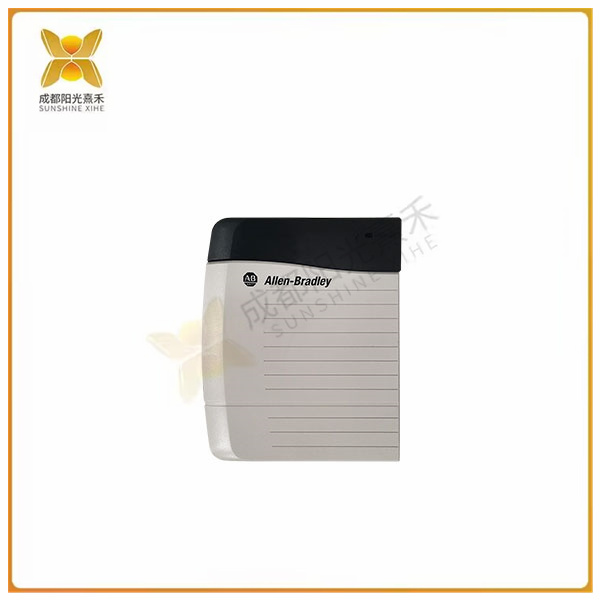

>>>>>型号:1756-OB16E 数字DC输出模块 离散输出模块
【功能描述】
Allen-Bradley 1956-OB16E是一个离散输出模块，是ControlLogix可编程自动化控制器(PLC)平台的一部分。该模块是一个DC输出模块，输出电压范围为10-31.2 VDC，标称值为24VDC。它带有十六(16)个输出通道，分为两(2)个电子融合组，每组八(8)个通道。该模块通常用于驱动24VDC额定设备，如继电器线圈、螺线管驱动设备、指示灯、警报器和其他类似的电气负载。
1756-OB16E是一个单槽宽模块，可与任何1756 ControlLogix控制器兼容使用。它可以安装到任何1756 ControlLogix机架上，特别是1756-A4；1756-A17；1756年，A10；1756-A13和1756-A17。此外，它还可以作为本地I/O或分布式I/O组件。
1756-OB16E提供每个通道60°C(140°F)时1 A的输出电流，或每个模块60°C(140°F)时8 A的输出电流。它的浪涌电流额定值为2 A，每点10 ms，在0°C(32°F)24伏DC下每2秒重复一次。此外，模块的最小负载电流为每通道3 mA。
每组提供内置电子熔断。每个输出通道的关到开输出延迟时间最大为70 s标称值/1 ms，开到关延迟时间最大为360 s标称值/1 ms。它从背板吸取的电流在5v直流时为250 mA，在24v直流时为2 mA，而背板的总功耗要求为1.32瓦，最大功耗为4.1 W(60°C(140°F))。
>>>>>型号:1756-OB16E 数字DC输出模块 离散输出模块
【英文介绍】
The Allen-Bradley 1956-OB16E is a discrete output module that is part of the ControlLogix Programmable Automation Controller (PLC) platform. The module is a DC output module with an output voltage range of 10-31.2 VDC and a nominal value of 24VDC. It has sixteen (16) output channels divided into two (2) electron fusion groups of eight (8) channels each. The module is typically used to drive 24VDC rated devices such as relay coils, solenoid drive devices, indicators, alarms, and other similar electrical loads.
The 1756-OB16E is a single slot width module that is compatible with any 1756 ControlLogix controller. It can be mounted to any 1756 ControlLogix rack, especially the 1756-A4; 1756-A17; 1756, A10; 1756-A13 and 1756-A17. In addition, it can be used as a local or distributed I/O component.
The 1756-OB16E provides 1 A output current at 60°C(140°F) per channel, or 8 A output current at 60°C(140°F) per module. It has A surge current rating of 2 A, 10 ms per point, repeated every 2 seconds at 24 volt DC at 0°C(32°F). In addition, the minimum load current of the module is 3 mA per channel.
Each set provides built-in electronic fuses. The turn-off to turn-off output delay time of each output channel is up to 70 s nominal value /1 ms, and the turn-off delay time is up to 360 s nominal value /1 ms. The current it draws from the backplane is 250 mA at 5v DC and 2 mA at 24 V DC, while the backplane requires a total power consumption of 1.32 watts and a maximum power consumption of 4.1 W(60°C(140°F)).
