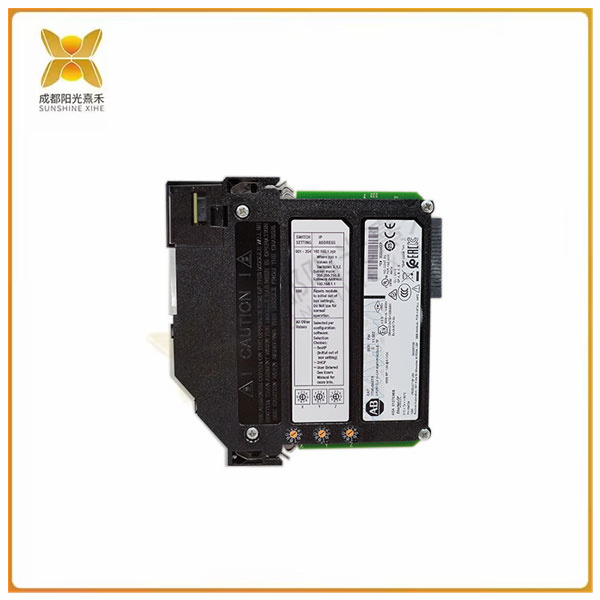

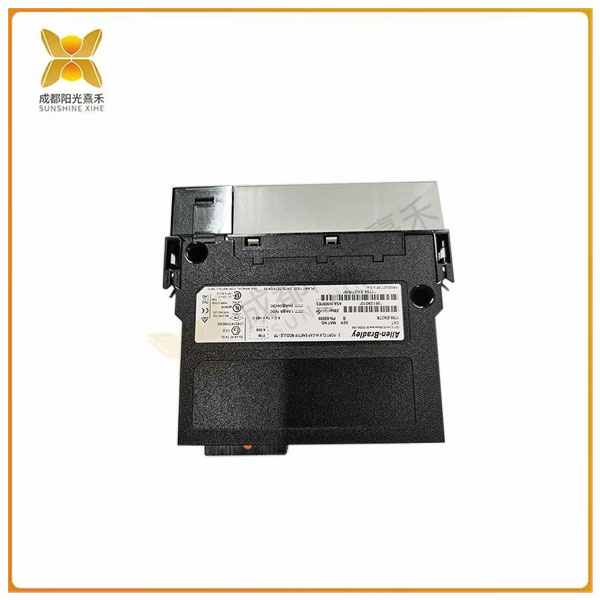

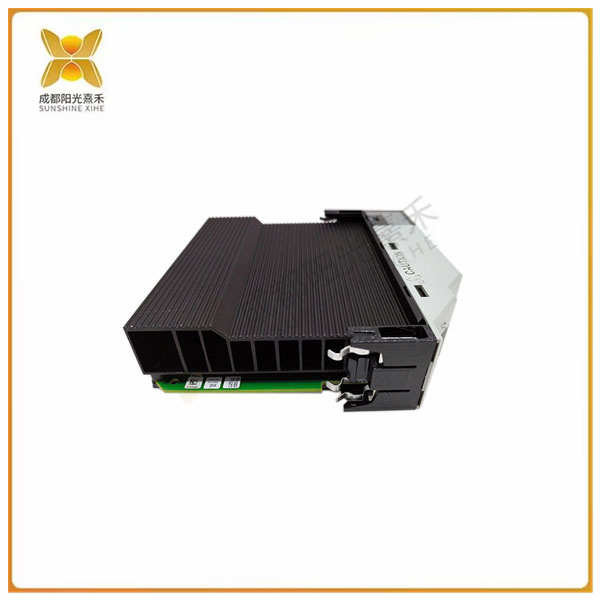

>>>>>型号:1756-EN2TR 基于机架的通信模块 提供实时 I/O 通信和消息交换
【功能描述】
概览
1756 EtherNet/IP 通信模块
通过 EN4TR 和 EN4TRXT 通信模块提供 CIP Security 协议
提供实时 I/O 通信和消息交换
使用现成的以太网通信芯片和物理介质
支持 128 或 256 个 Logix 连接
提供嵌入式交换机技术功能
通过 ControlLogix-XT™ 通信模块提供极端环境支持
使用安全通信模块提供从控制系统到上层系统、编程终端和其他 ControlLogix 控制器的安全连接
提供设备级环网 (DLR) 连接，允许设备构成环形拓扑来提供可复原性
为全冗余网络基础设施提供并行冗余协议 (PRP) 支持
1756 DeviceNet 通信模块
使用通用工业协议 (CIP) 来控制、配置和收集工业级设备的数据
在简单工业设备（传感器和执行器）和高级设备（控制器和计算机）之间提供连接
支持 64 个节点
1756 ControlNet 通信模块
使用通用工业协议 (CIP) 将 I/O 网络和点对点网络的功能相结合，为这两项功能提供高速性能
为实时高吞吐量应用项目提供开放式控制网络
为所有关键任务控制数据提供确定性的可重复传输
支持对时间无苛刻要求的数据传输
支持 64 或 128 个 Logix 连接以及 99 个节点
提供极端环境支持
1756 Data Highway Plus™ 和远程 I/O 通信模块
支持设备间消息传递
远程 I/O 链路连接远程 I/O 机架和其他智能设备
远程 I/O 功能使模块充当扫描器，从而与远程 I/O 设备相互传输数字量数据和块传送数据
支持 32 个 Logix 连接
支持在 DH+™ 网络上的设备间进行通信
1756 SynchLink 通信模块
为分布式运动和协调驱动控制提供时间同步和数据广播
将 ControlLogix 机架连接到 SynchLink™ 光纤通信连接
允许控制器使用其他机架中某个控制器的运动轴数据
敷形涂覆
目前在部分 ControlLogix® 产品上提供了敷形涂覆，以帮助针对恶劣环境为自动化系统提供保护。Rockwell Automation 在 ISA G3 A 组分类环境中，对这些产品进行了相当于 10 年使用期的测试。这些产品由产品目录号中的“K”后缀来标识，它们
帮助对电路进行保护，防止其暴露于污染、潮湿、温度变化、盐雾、有机腐蚀（霉菌）和腐蚀性化学品和蒸汽
可长期保持绝缘电阻 (SIR)，从而确保装置的运行完整性，在腐蚀性环境中使用时具有较长的产品生命周期
>>>>>型号:1756-EN2TR 基于机架的通信模块 提供实时 I/O 通信和消息交换
【英文介绍】
overview
1756 EtherNet/IP communication module
The CIP Security protocol is provided through the EN4TR and EN4TRXT communication modules
Provides real-time I/O communication and message exchange
Use off-the-shelf Ethernet communication chips and physical media
Supports 128 or 256 Logix connections
Provides embedded switch technology functions
Extreme environment support via the ControlLogix-XT™ communication module
Provide secure connections from the control system to the upper layer systems, programming terminals, and other ControlLogix controllers using the secure communication module
Provides device level ring network (DLR) connectivity, allowing devices to form a ring topology to provide resilience
Parallel Redundancy Protocol (PRP) support for fully redundant network infrastructure
1756 DeviceNet communication module
Use the Common Industrial Protocol (CIP) to control, configure and collect data from industrial-grade equipment
Provides connectivity between simple industrial equipment (sensors and actuators) and advanced equipment (controllers and computers)
Supports 64 nodes
1756 ControlNet Communication module
The Common Industrial Protocol (CIP) is used to combine the functions of I/O networks and peer-to-peer networks, providing high-speed performance for both functions
Provides open control network for real-time high throughput application projects
Provide deterministic, repeatable transmission of all mission-critical control data
Supports time-free data transmission
Supports 64 or 128 Logix connections and 99 nodes
Provide extreme environment support
1756 Data Highway Plus™ and remote I/O communication module
Supports message transfer between devices
Remote I/O links Connect remote I/O racks and other smart devices
The remote I/O function enables the module to act as a scanner to transfer digital and block transfer data to and from remote I/O devices
Supports 32 Logix connections
Supports communication between devices on a DH+™ network
1756 SynchLink communication module
Provides time synchronization and data broadcasting for distributed motion and coordinated drive control
Connect the ControlLogix rack to the SynchLink™ fiber optic communications connection
Allows the controller to use the axis of motion data of a controller in another rack
Shape coating
Form coatings are currently available on some ControlLogix® products to help protect automation systems against harsh environments. Rockwell Automation tested these products in the ISA G3 Group A classification environment for the equivalent of 10 years of use. These products are identified by the "K" suffix in the product catalog number, which
Helps protect circuits from exposure to pollution, moisture, temperature changes, salt spray, organic corrosion (mold) and corrosive chemicals and vapors
Insulation resistance (SIR) is maintained for a long time to ensure the operational integrity of the unit and has a long product life cycle when used in corrosive environments
