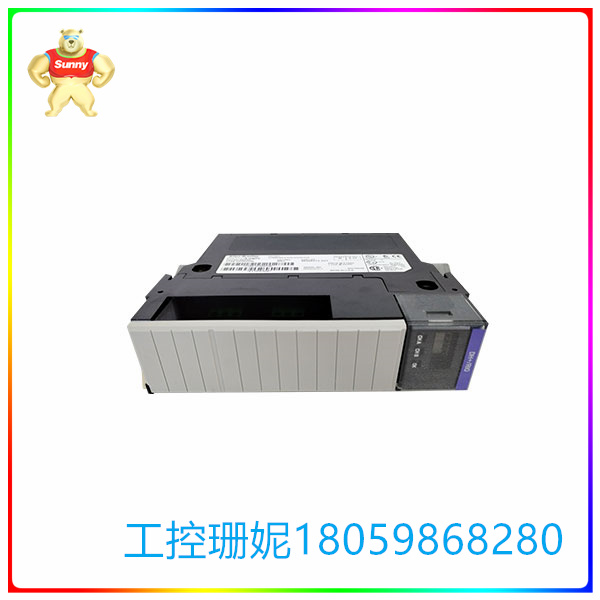

>>>>>型号:1756-DHRIO 远程 I/O 通信接口模块 具体取决于电缆长度
【功能描述】
Allen-Bradley 1756-DHRIO 是一款 ControlLogix Data Highway Plus/远程 I/O 通信接口模块。该模块有两 （2） 个通道，支持每秒 57.6 KB、每秒 115.2 KB 和每秒 230.4 KB 的通信速率，具体取决于电缆长度。它最多可以通过三个机箱和四个通信网络传输消息。通过该模块，即使在不同的网络上，PLC、SLC 和 ControlLogix 控制器等设备之间也可以进行信息交换。
它支持以下类型的通信：设备之间的远程 I/O、控制和信息协议 （CIP） 消息传递以及 Data Highway Plus （DH+） 消息传递。它最多可以有 32 个 Logix 连接，远程 I/O 链路可以连接到远程 I/O 设备以及其他智能设备。当连接到远程 I/O 网络时，它可以充当适配器或扫描仪，即使在没有消息指令的情况下也能传输模拟、数字、块和特殊数据。在安装 1756-DHRIO 模块之前，您需要对每个通道的网络类型交换机进行编程，并安装和连接 ControlLogix 电源和机箱。您可以在同一机箱中安装尽可能多的模块，但这取决于您的可用电源。请注意，即使在施加机箱电源时，也可以安装或拆卸模块，但您需要遵守安全预防措施，特别是该区域是无害的，并且电源已断开，以防止电弧可能导致模块和连接器的触点过度磨损。确保释放电位静电，因为模块对静电放电很敏感。
>>>>>型号:1756-DHRIO 远程 I/O 通信接口模块 具体取决于电缆长度
【英文介绍】
The Allen-Bradley 1756-DHRIO is a ControlLogix Data Highway Plus/ Remote I/O communication interface module. The module has two (2) channels and supports communication rates of 57.6 kilobits per second, 115.2 kilobits per second and 230.4 kilobits per second, depending on cable length. It can transmit messages through up to three chassis and four communication networks. With this module, information can be exchanged between devices such as PLCS, SLCS and ControlLogix controllers, even on different networks.
It supports the following types of communication: remote I/O, Control and Information Protocol (CIP) messaging between devices, and Data Highway Plus (DH+) messaging. It can have up to 32 Logix connections, and remote I/O links can connect to remote I/O devices as well as other smart devices. When connected to a remote I/O network, it can act as an adapter or scanner, transmitting analog, digital, block, and special data even in the absence of message instructions. Before installing the 1756-DHRIO module, you will need to program the network type switches for each channel and install and connect the ControlLogix power supply and chassis. You can install as many modules as you want in the same chassis, but it depends on your available power supply. Note that a module can be installed or removed even when a case power supply is applied, but you need to follow safety precautions, especially if the area is harmless and the power supply is disconnected to prevent arcing that may cause excessive wear on the contacts of the module and connector. Make sure to release the potential static electricity, as the module is sensitive to electrostatic discharge.
>>>>>型号:1756-DHRIO 远程 I/O 通信接口模块 具体取决于电缆长度
