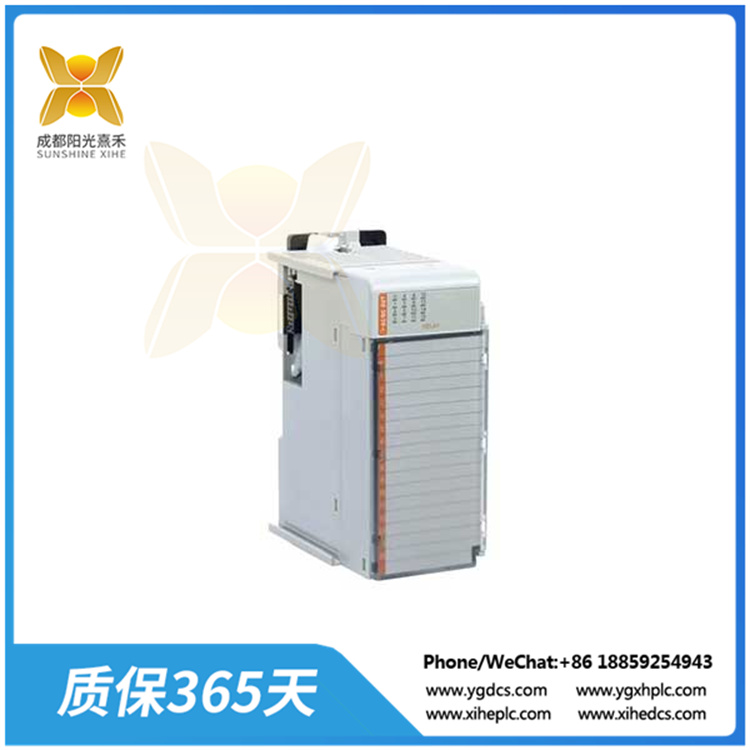

>>>型号:1769-OG16 数字量直流输出模块 具有诊断和可配置功能
【功能描述】
1769-OG16是一款直流5伏、TTL数字量直流输出模块，属于CompactLogix系列。它主要用于工业自动化控制系统，负责处理数字信号和控制逻辑。
1769-OG16该模块具有16点输出，电压范围在直流4.5伏到5.5伏之间，能够稳定、可靠地运行在各种工业环境中。由于其模块化设计，用户可以独立选择I/O、端子类型和网络接口，安装和维护都非常方便。
此外，该模块还具有诊断和可配置功能，使得其在应用中易于集成和调试。
在操作流程方面，1769-OG16模块满足多种安装要求，并且具有多功能性。它支持SET和RST指令，这些指令可以用于控制目标元件的复位和清零状态。同时，微分指令（PLS/PLF）使得该模块能够在输入信
号的上升沿或下降沿产生一个扫描周期的脉冲输出，从而满足复杂的控制需求。
总的来说，1769-OG16是一款功能强大、灵活易用的工业自动化控制模块，适用于各种需要数字信号处理和控制的场景。
>>>>型号:1769-OG16 数字量直流输出模块 具有诊断和可配置功能
【英文介绍】
The 1769-OG16 is a 5-volt DC, TTL digital DC output module belonging to the CompactLogix series. It is mainly used in industrial automation control systems, responsible for processing digital signals and control logic.
1769-OG16 The module has a 16-point output with a voltage range between 4.5 and 5.5 volts DC, enabling stable and reliable operation in a wide range of industrial environments. Due to its modular design, users can
independently choose I/O, terminal type and network interface, which is very easy to install and maintain. In addition, the module has diagnostic and configurable functions, making it easy to integrate and debug in applications.
In terms of operation flow, the 1769-OG16 module meets a variety of installation requirements and is versatile. It supports SET and RST instructions, which can be used to control the reset and clear state of the target component.
At the same time, the differential instruction (PLS/PLF) enables the module to generate a pulse output of a scan cycle at the rising or falling edge of the input signal, thus meeting the complex control requirements.
Overall, the 1769-OG16 is a powerful, flexible and easy-to-use industrial automation control module for a variety of scenarios requiring digital signal processing and control.
