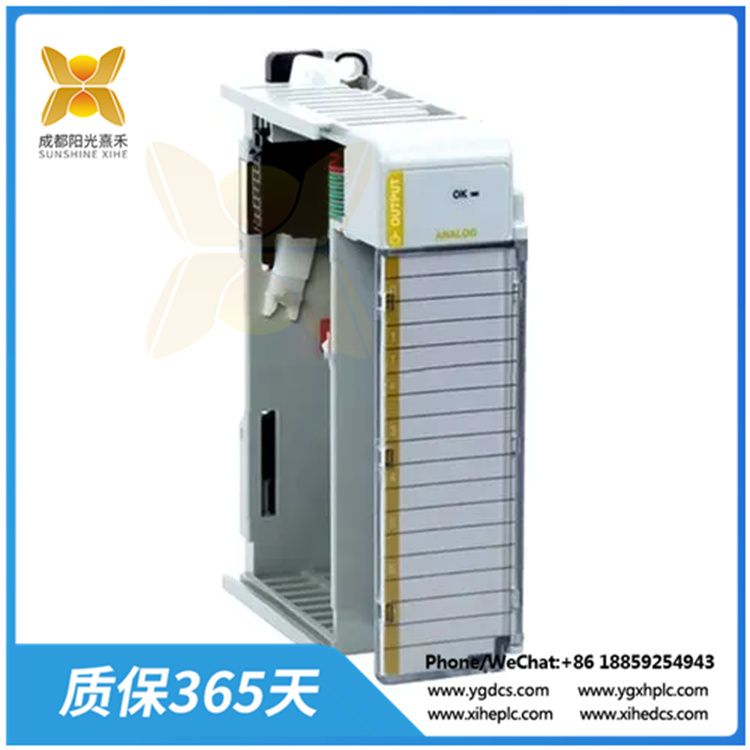

>>>型号:1769-OF4-CC 工业自动化输出模块 四个单端通道
【功能描述】
1769-OF4-CC是一款工业自动化输出模块,它属于 1769系列。这款模块专为工业自动化系统设计,具有一系列显著的特点和性能参数,以满足现代制造业的需求。
1769-OF4-CC模块是一个模拟输出模块,具有四个单端通道,这些通道可以配置为四个电压和电流通道。其适用的输出电压和电流范围广泛,包括±10V、0-10V、0-5V、1-5V以及0-20mA或4-20mA,
使得该模块能够灵活地适应各种工业自动化应用。
在精度方面,1769-OF4-CC模块表现出色。其精度裕量在25摄氏度时满量程为0.5%,在0至0.5千赫兹时的输出纹波为±0.50%。此外,该模块还具有±0.60%的模块误差范围(在0至8摄氏度时),并且重
复性为±0.05%,确保了输出信号的准确性和稳定性。
在电气性能方面,1769-OF4-CC模块具有高达40mA的电流电路保护和过压保护,能够有效防止电路过载和电压过高对设备造成的损害。其额定工作电压为30伏直流电,保证了模块在正常工作条件下的稳定运行。
该模块还具有紧凑的尺寸和轻便的重量,便于安装和携带。其尺寸为118 x 35 x 87毫米(4.65 x 1.38 x 3.43英寸),重量为280克(0.61磅),使得它能够在空间有限的工业自动化环境中轻松部署。
在兼容性方面,1769-OF4-CC模块与MicroLogix 1500和CompactLogix控制器兼容,使得它能够方便地集成到现有的自动化系统中,实现无缝连接和高效通信。
>>>>型号:1769-OF4-CC 工业自动化输出模块 四个单端通道
【英文介绍】
The 1769-OF4-CC is an industrial automation output module belonging to the 1769 series. Designed for industrial automation systems, this module has a range of distinctive features and performance
parameters to meet the needs of modern manufacturing.
The 1769-OF4-CC module is an analog output module with four single-ended channels that can be configured as four voltage and current channels. The wide range of applicable output voltages and currents,
including ±10V, 0-10V, 0-5V, 1-5V, and 0-20mA or 4-20mA, allows the module to be flexibly adapted to various industrial automation applications.
In terms of accuracy, the 1769-OF4-CC module performs well. Its accuracy margin is 0.5% at full scale at 25 degrees Celsius and the output ripple is ±0.50% at 0 to 0.5 kilohertz. In addition, the module has a
module error range of ±0.60% (at 0 to 8 degrees Celsius) and repeatability of ±0.05%, ensuring the accuracy and stability of the output signal.
In terms of electrical performance, the 1769-OF4-CC module has current circuit protection and overvoltage protection up to 40mA, which can effectively prevent damage caused by circuit overload and high
voltage to the equipment. Its rated operating voltage is 30 volts DC, which ensures the stable operation of the module under normal working conditions.
The module also has a compact size and light weight for easy installation and portability. It measures 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 inches) and weighs 280 grams (0.61 pounds), making it easy to deploy
in space-constrained industrial automation environments.
In terms of compatibility, the 1769-OF4-CC module is compatible with MicroLogix 1500 and CompactLogix controllers, making it easy to integrate into existing automation systems for seamless connectivity and
efficient communication.
