>>>型号:1336-BDB-SP17D PCB栅极驱动器板 用于PCB栅极驱动器板

【功能描述】

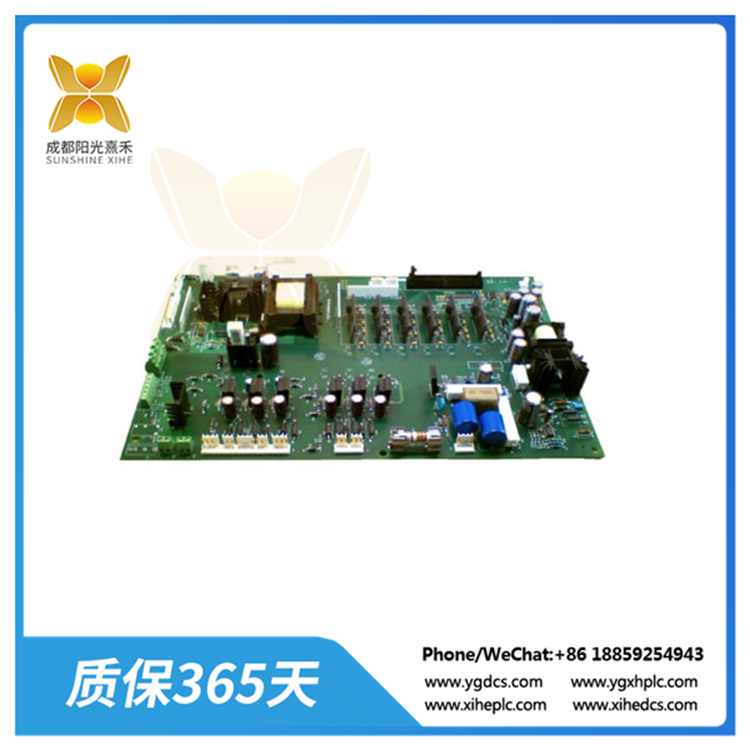

1336-BDB-SP17D是一款专为与1336 PLUS、FORCE、IMPACT和PLUS II驱动器配合使用的PCB栅极驱动器板。它位于1336驱动器的正下方主控板,主要目的是放大来自基础驱动板电源板的低电流输入。

1336-BDB-SP17D驱动板设计用于460V AC(三相)工作电压,其板额定功率为40HP。它配备了7个跳线连接器,标记为J2、J6、J7、J8、J9、J10和J13,这些跳线连接器用于连接1336驱动器的主控制板。

此外,该驱动板还有名为T4、T6和T7的部件,与TB4一起用作24V DC辅助输入。

安装方面,这款栅极驱动器板可以按照特定的步骤安装在变频器的主控制板安装板上。这样的设计不仅便于安装和维护,而且能够确保电机或其他电气设备的精确和高效运行。

总的来说,1336-BDB-SP17D是一款功能强大、性能稳定的栅极驱动板,适用于各种PCB栅极驱动器板


>>>>型号:1336-BDB-SP17D PCB栅极驱动器板 用于PCB栅极驱动器板


英文介绍



The 1336-BDB-SP17D is a PCB gate driver board designed for use with the 1336 PLUS, FORCE, IMPACT and PLUS II drivers. It is located directly below the main control board of the 1336 driver and its main purpose is

 to amplify the low current input from the power board of the base driver board.

The 1336-BDB-SP17D driver board is designed for 460V AC (three-phase) operating voltage and its board power rating is 40HP. It is equipped with seven jumper connectors, labeled J2, J6, J7, J8, J9, J10, and J13, which

 are used to connect the main control board of the 1336 drive. In addition, the drive board has components called T4, T6 and T7, which together with the TB4 are used as 24V DC auxiliary inputs.

In terms of installation, the grid driver board can be installed on the main control board mounting board of the inverter in accordance with specific steps. Such a design is not only easy to install and maintain, but also e

nsures accurate and efficient operation of motors or other electrical equipment.

Overall, the 1336-BDB-SP17D is a powerful and stable gate driver for a wide range of industrial automation control systems.
