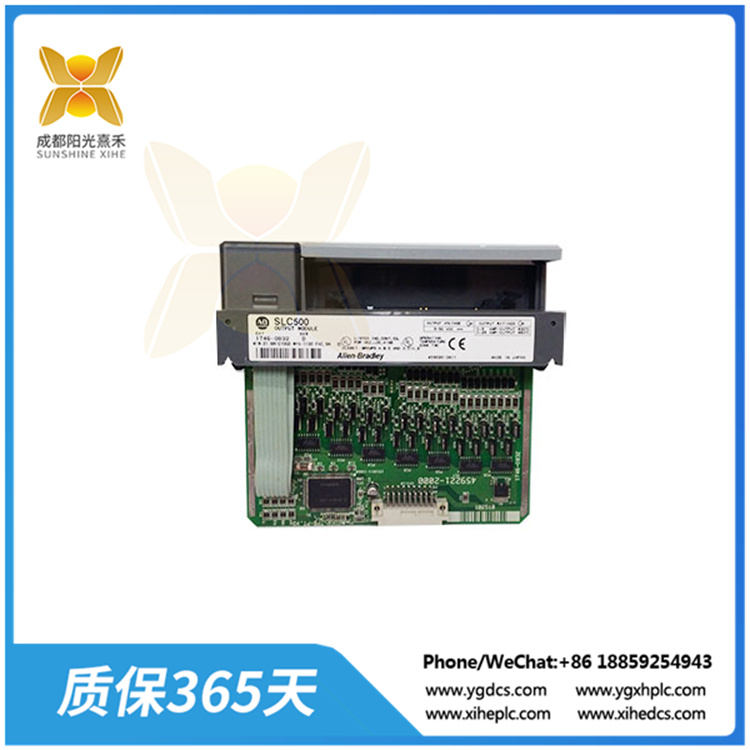

>>>型号:1746-OB32 32通道数字输出模块 高密度低电流直流输出模块
【功能描述】
1746-OB32是一款32通道数字输出模块,属于SLC 500系列。它是一款高密度低电流直流输出模块,可以兼容安装在1746机箱的任何可用插槽中,但插槽0除外。
1746-OB32模块提供的电压输出为24V DC,具有32个输出,每个公共端有16个点。其源极工作电压范围为5至50V DC,且在0V DC下消耗19.5A的背板电流。
1746-OB32在性能方面,1746-OB32模块在ON模式下最大信号延迟时间为0.1ms,OFF模式下最大信号延迟时间为1ms。在OFF状态下,最大电路电流泄漏为1mA。此外,当温度在0-25摄氏度时,
每个输出点的标称电流为0.60A,每个输出通道的最小电流负载为1mA。
1746-OB32支持多种输出类型,如直流(DC)输出或交流(AC)输出,以满足不同应用需求。此外,该模块可以与Allen-Bradley的编程软件(如RSLogix 500)结合使用,用户可以根据需要编写
逻辑程序来控制输出信号的状态和行为。
>>>>型号:1746-OB32 32通道数字输出模块 高密度低电流直流输出模块
【英文介绍】
The 1746-OB32 is a 32-channel digital output module belonging to the SLC 500 series. It is a high density low current DC output module that is compatible to be installed in any available slot in the 1746 chassis, except slot 0.
The 1746-OB32 module provides a voltage output of 24V DC with 32 outputs with 16 points at each common end. Its source operating voltage ranges from 5 to 50V DC and consumes 19.5A backplane current at 0V DC.
In terms of performance, the 1746-OB32 module has a maximum signal delay time of 0.1ms in ON mode and 1ms in OFF mode. In the OFF state, the maximum circuit current leakage is 1mA. In addition, when the temperature
is 0-25 degrees Celsius, the nominal current of each output point is 0.60A, and the minimum current load of each output channel is 1mA.
The 1746-OB32 supports multiple output types, such as direct current (DC) output or alternating current (AC) output, to meet different application requirements. In addition, the module can be used in conjunction with Allen-
Bradley's programming software, such as RSLogix 500, so that users can write logic programs as needed to control the state and behavior of the output signal.
