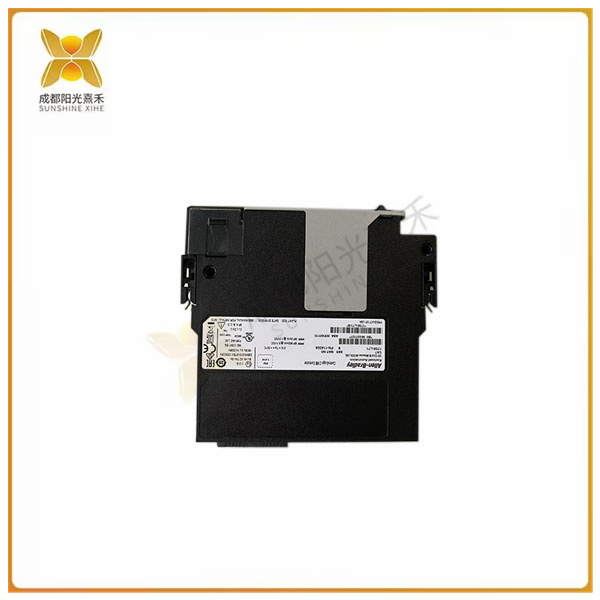

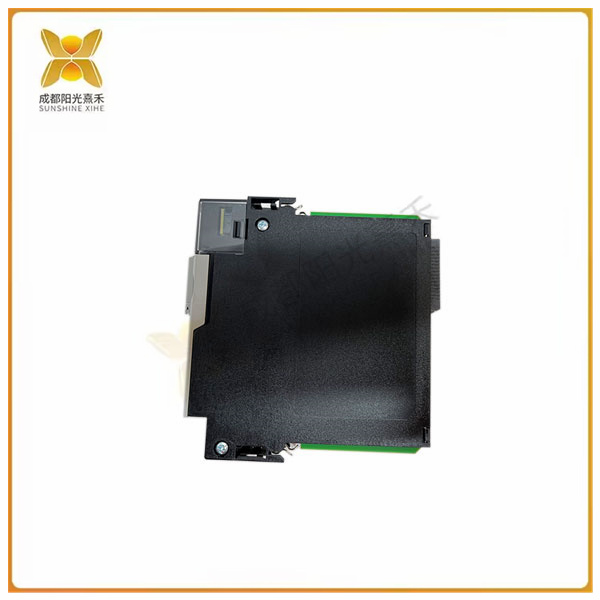

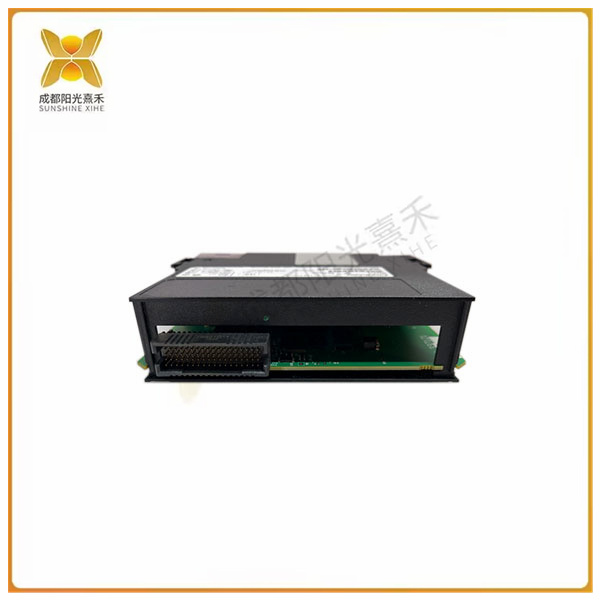

>>>>>型号:1756-L71 可编程自动化控制器 具有板载 字母数字显示屏
【功能描述】
1756-L71 的技术参数
制造者 罗克韦尔自动化
系列 ControlLogix
集成运动控制 • SERCOS 接口 • 模拟选项（编码器输入、LDT 输入、SSI 输入） • EtherNet/IP 网络上的集成运动控制
冗余 全面支持
可选通信适配器 • 以太网/IP • 控制网 • 设备网络 • 数据高速公路增强版 • 远程 I/O • 同步链接 • 第三方流程和设备网络
内置通信 1 个 USB 端口
Allen-Bradley 1756-L71 是一款 ControlLogix 可编程自动化控制器。它具有 2 MB 的用户内存和 0.98 MB 的 I/O 内存。它还具有板载 4 个字符的字母数字显示屏，可轻松监控运行时和模块信息以及控制器诊断。它有一个开放式外壳和内置的一 （1） 个 2.0 全速 USB 端口。可用的通信选项包括 DeviceNet、ControlNet、EtherNet/IP、Remote I/O Data Highway Plus、第三方进程和网络以及 SynchLink。它还附带一个 1 GB 非易失性内存，但您可以使用 1784-SD2 将其升级到 2 GB。建议将 SD 卡保留在控制器中。1756-L71 控制器随附三个电容器储能模块，其中两个是可拆卸的。它在 1.2 V DC 时的电流消耗为 5 mA，在 5.1 V DC 时的电流消耗为 800 mA。1756-L71 控制器还具有 30 伏的连续隔离电压、2.5 瓦的最大功耗和 8.5 BTU/小时的散热。它的最大模拟 I/O、数字 I/O 和总 I/O 分别为 4,000、128,000 和 128,000。此产品的工作温度为 0 至 60 摄氏度，存储温度为 -40 至 85 摄氏度。其最高周围空气温度为 60 摄氏度，非冷凝相对湿度为 5% 至 95%。控制器在 10 到 500 赫兹时具有 2G 的振动、30G 的运行冲击和 50G 的非运行冲击，安装 SD 卡时会降至 45G。其它控制器可以要求用户首先了解PLC寄存器，特别是字节和位，以便开始对程序元素进行寻址。使用 1756-L71，用户只需插入一个程序元素并选择物理连接 I/O 的逻辑通道。在其他PLC中，用户可能会发现需要将一个寄存器移动到另一个寄存器以启动转换和处理，只是为了获得模拟数据。该控制器只需用户找到I/O信号物理端接的逻辑通道。
>>>>>型号:1756-L71 可编程自动化控制器 具有板载 字母数字显示屏
【英文介绍】
Technical parameters of 1756-L71
Manufacturer Rockwell Automation
Series ControlLogix
Integrated motion control • SERCOS interface • Analog options (encoder input, LDT input, SSI input) • Integrated motion control on EtherNet/IP networks
Full support for redundancy
Optional communication adapters • Ethernet /IP • Control network • Device Network • Data Superhighway Enhanced • Remote I/O • Synchronous links • Third-party processes and device networks
Built-in communication 1 USB port
The Allen-Bradley 1756-L71 is a ControlLogix programmable automation controller. It has 2 MB of user memory and 0.98 MB of I/O memory. It also features an onboard 4-character alphanumeric display for easy monitoring of runtime and module information as well as controller diagnostics. It has an open housing and built-in one (1) 2.0 full speed USB ports. Available communication options include DeviceNet, ControlNet, EtherNet/IP, Remote I/O Data Highway Plus, third-party processes and networks, and SynchLink. It also comes with a 1 GB non-volatile memory, but you can upgrade it to 2 GB with the 1784-SD2. You are advised to keep the SD card in the controller. The 1756-L71 controller comes with three capacitor energy storage modules, two of which are removable. It has a current consumption of 5 mA at 1.2 V DC and 800 mA at 5.1 V DC. The 1756-L71 controller also features a continuous isolation voltage of 30 volts, a maximum power consumption of 2.5 watts, and a heat dissipation of 8.5 BTU/ hour. Its maximum analog I/O, digital I/O and total I/O are 4,000, 128,000 and 128,000, respectively. The operating temperature of this product is 0 to 60 degrees Celsius and the storage temperature is -40 to 85 degrees Celsius. It has a maximum ambient air temperature of 60 degrees Celsius and a non-condensing relative humidity of 5 to 95%. The controller has 2G vibration at 10 to 500 Hz, 30G operating shock, and 50G non-operating shock, dropping to 45G when SD card is installed. Other controllers may require the user to first understand the PLC registers, especially bytes and bits, in order to begin addressing program elements. With the 1756-L71, the user simply inserts a program element and selects the logical channel that physically connects the I/O. In other PLCS, users may find it necessary to move one register to another to initiate conversion and processing, just to get analog data. The controller only needs the user to find the logical channel to which the I/O signal is physically terminated.
