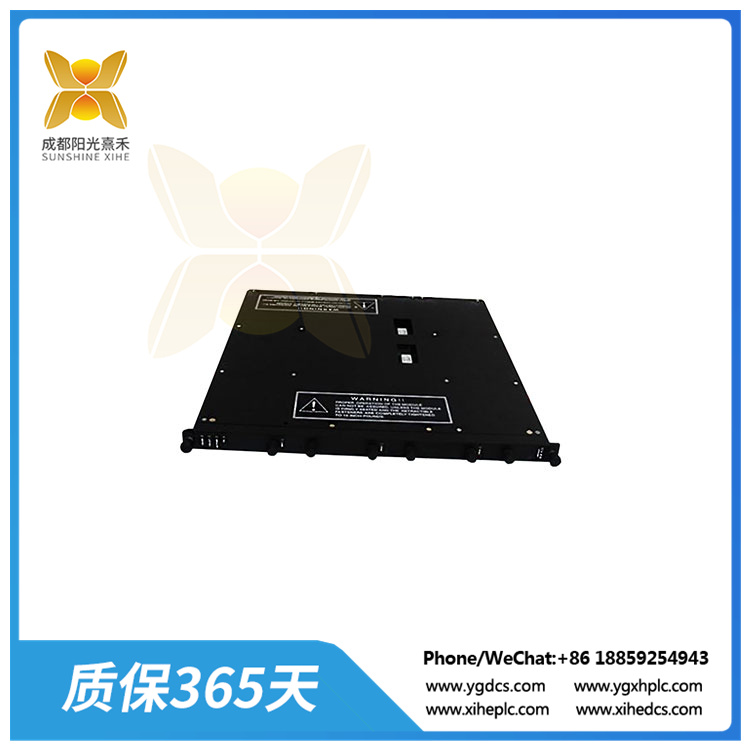

TRICONEX 8110  |  PLC模块  | 提供监控和诊断功能

产品型号：TRICONEX 8110

　　输入电压:24V DC

　　通信接口:以太网、RS485

　　数字输入:16路

　　数字输出:16路

　　模拟输入:4

　　-模拟输出:4

　　TRICONEX 8110 PLC模块为控制和监控制造业，石油和天然气以及发电等行业

　　的各种过程提供了灵活且可扩展的解决方案。它提供了与自动化系统的其他组件

　　的无缝集成，允许高效和同步的操作。

　　PLC模块是指PLC系统中根据功能使用不同的各个部分的通俗叫法。以下是常见的PLC模块及其功能：

　　电源模块：TRICONEX 8110为PLC系统提供工作电源的单元部分，确保系统能够正常工作。

　　CPU模块：PLC系统的核心组成部分，包括中央处理器、存储器和通信接口等部分。其主要功能包括接收来自输入模块的信号，按照预定的程序指令进行处理，并将处理结果发送到输出模块，控制外部设备。同时，还提供监控和诊断功能，如检查程序执行状态、诊断设备故障等。

　　输入模块：TRICONEX 8110用于采集外部信号，如传感器信号、按钮信号、开关信号等。输入模块一般包括输入接口、信号处理电路和隔离电路等部分，将采集到的信号进行电平转换和隔离处理，确保信号的正确性和可靠性，并将处理后的信号传输给CPU模块，供其进行后续处理。

　　输出模块：TRICONEX 8110用于控制外部设备，如启动电机、控制灯光、输出报警信号等。输出模块一般包括输出接口、驱动电路和隔离电路等部分，接收来自CPU模块的控制信号，并根据信号指令进行相应的动作。通过输出接口和驱动电路将控制信号转换为能够驱动外部设备的电平信号。

　　Product Model: TRICONEX 8110

　　Input voltage :24V DC

　　Communication interface: Ethernet, RS485

　　Digital input :16 channels

　　Digital output :16 channels

　　Analog input :4

　　- Analog output :4

　　TRICONEX 8110 PLC modules are designed to control and monitor industries such as manufacturing, oil and gas, and power generation

　　The various processes provide flexible and scalable solutions. It is provided with other components of the automation system

　　Seamless integration, allowing efficient and synchronous operations.

　　PLC module refers to the popular name of the various parts of the PLC system that use different functions. The following are common PLC modules and their functions:

　　Power Module: The TRICONEX 8110 provides the unit part of the working power supply for the PLC system to ensure that the system can work properly.

　　CPU module: the core part of the PLC system, including the central processor, memory and communication interface. Its main functions include receiving the signal from the input module, processing according to the predetermined program instructions, and sending the processing results to the output module, and controlling the external equipment. At the same time, it also provides monitoring and diagnosis functions, such as checking program execution status and diagnosing equipment faults.

　　Input module: The TRICONEX 8110 is used to collect external signals, such as sensor signals, button signals, switch signals, etc. The input module generally includes the input interface, the signal processing circuit and the isolation circuit, and so on. The collected signal is converted and isolated to ensure the correctness and reliability of the signal, and the processed signal is transmitted to the CPU module for subsequent processing.

　　Output module: The TRICONEX 8110 is used to control external devices, such as starting motors, controlling lights, and output alarm signals. The output module generally includes the output interface, the drive circuit and the isolation circuit, which receives the control signal from the CPU module and performs the corresponding action according to the signal instruction. Through the output interface and drive circuit, the control signal is converted to the level signal that can drive the external device.
