>>>型号:140DRA84000 继电器离散输出模块 用于工业自动化和控制系统
【功能描述】

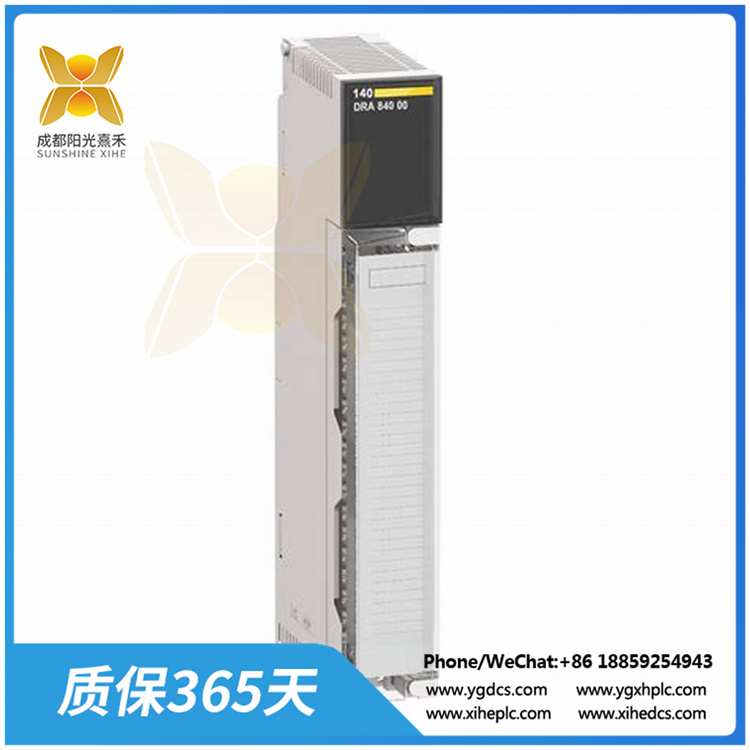

140DRA84000是一款继电器离散输出模块，属于Modicon Quantum系列。这款模块具有16个输出点，每个输出点均为常开型，且采用标准模块格式设计。其重量轻便，总线电流要求为1110mA，可以适应多种工业自动化和控制系统的需求。
140DRA84000具有10A、10ms的浪涌容量，以及以VA为单位的开关容量可耐受500VA，这意味着它在处理高负载和瞬态电流时表现出色。它还配有一个运行时显示绿色的LED，当通道激活时，通道1至16的LED显示为绿色，方便用户进行状
态监控和故障诊断。
140DRA84000继电器模块不需要外部电源，功耗相对较低，为5.5W + 0.5W x输入点开。此外，它的交流工作电压范围广泛，为20~250伏交流电压，直流工作电压为5~30伏。这些特性使得它能在各种工业环境中稳定运行。
在安装方面，140DRA84000具有内置卡扣，可以简单方便地安装在标准的35mm DIN导轨上，也可以安装面板，提供了安装孔。这种设计使得它在安装过程中具有较大的灵活性，并能节省控制面板的空间。
总的来说，140DRA84000是一款性能稳定、功能丰富的继电器离散输出模块，适用于各种工业自动化和控制应用。
>>>>型号:140DRA84000 继电器离散输出模块 用于工业自动化和控制系统
【英文介绍】
The 140DRA84000 is a relay discrete output module that belongs to the Modicon Quantum family. The module has 16 output points, each of which is normally open and designed in a standard module format.
With its light weight and bus current requirement of 1110mA, it can adapt to the needs of a variety of industrial automation and control systems.
The 140DRA84000 has a surge capacity of 10A, 10ms, and a switching capacity in VA that can withstand 500VA, which means it performs well when handling high loads and transient currents. It is also equipped with
an LED that displays green while running, and leds for channels 1 to 16 appear green when channels are active for easy status monitoring and fault diagnosis.
The 140DRA84000 relay module does not require an external power supply and has a relatively low power consumption of 5.5W + 0.5W x input open. In addition, it has a wide range of AC operating voltage, 20 to
250 volts AC voltage, DC operating voltage of 5 to 30 volts. These characteristics enable it to operate stably in various industrial environments.
In terms of mounting, the 140DRA84000 has a built-in clip that allows easy and convenient mounting on standard 35mm DIN rails, and can also be mounted on a panel with mounting holes provided. This design
allows for greater flexibility during installation and saves space on the control panel.
Overall, the 140DRA84000 is a stable, feature-rich relay discrete output module suitable for a variety of industrial automation and control applications.
