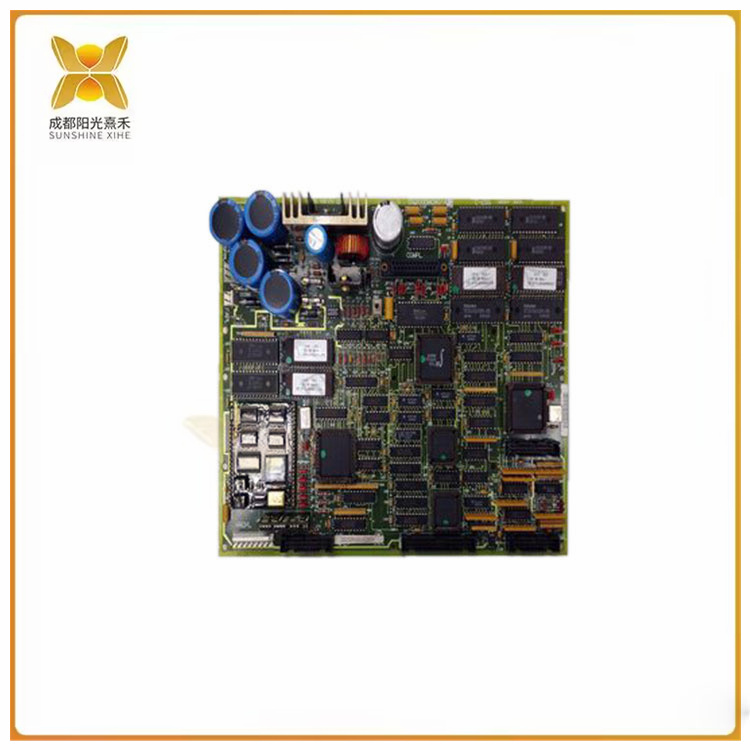

>>>>>型号:DS200FGPAG1AHD 栅极脉冲放大器卡 转换为直流电
【功能描述】
什么是DS200FGPAG1AHD？
DS200FGPAG1AHD是栅极脉冲放大器卡，可为SCR电桥的一相提供栅极功率，监控SCR状态，并将交流电源转换为直流电。
在哪里可以找到DS200FGPAG1AHD手册？
DS200FGPAG1AHD的使用说明书是GEI-100223，可应要求从AX Control获得。
DS200FGPAG1AHD板上有三个主要功能。它们是什么，它们做什么？
三个主要功能是开关电源、栅极驱动器和SCR状态监控。电源开关功能的目的是将接收到的交流电压转换为门控和状态功能所需的直流电压。SCR状态监控的目的是从连接的FHVA中积累电池电压信息，并通过光学串行数据链路将信息中继到LCI控制器。栅极驱动器用于为SCR电桥的一相提供任何栅极电源。有关这些功能的更多信息，请参见GEI-100223栅极脉冲放大器用户指南的首页。
DS200FGPAG1AHD板上有30个测试点，位于浇口A、浇口B和用于电池状态监控的测试点之间。登机口A中的测试点有哪些描述？
A门有9个测试点，其中许多都有不同命名法的单独描述，有的如下：TP101，命名法1PUSH1，说明逻辑1=命令开始推送循环;TP105，命名法VLINKA，描述初级电压;和TP110，命名法0RELA，描述逻辑0=释放门驻留。
栅极脉冲放大器板可接受的功率输入是多少？
FGPA将接受120 VrmsÙ20%、50/60 Hz、最大约350 VA的电源输入。FGPA模型上有四个不同的点可以接受电压，如下所示，P15在未监控的情况下通常接受13.5-14.5 VDC的电源，P5接受4.7-5.1 VDC之间的电压，P90接受大于或等于81 VDC，P40接受大于或等于25 VDC。
哪些源为FGPA板上的推挽电路提供栅极电流？
有两个不同的来源，分别是大门基座和大门后廊。
>>>>>型号:DS200FGPAG1AHD 栅极脉冲放大器卡 转换为直流电
【英文介绍】
What is DS200FGPAG1AHD?
The DS200FGPAG1AHD is a grid pulse amplifier card that provides grid power to a phase of the SCR bridge, monitors SCR status, and converts AC power to direct current.
Where can I find the DS200FGPAG1AHD manual?
The instruction manual for the DS200FGPAG1AHD is GEI-100223 and is available on request from AX Control.
There are three main functions on the DS200FGPAG1AHD board. What are they? What do they do?
The three main functions are switching power supply, gate driver and SCR status monitoring. The purpose of the power switch function is to convert the received AC voltage to the DC voltage required for gated and status functions. The purpose of SCR status monitoring is to accumulate battery voltage information from the connected FHVA and relay the information to the LCI controller via an optical serial data link. The gate driver is used to provide any gate power to a phase of the SCR bridge. For more information on these features, see the home page of the GEI-100223 Grid Pulse Amplifier User Guide.
There are 30 test points on the DS200FGPAG1AHD board, located between Gate A, Gate B, and test points for battery status monitoring. What is the description of the test point at Gate A?
The A gate has 9 test points, many of which have separate descriptions of different nomenclature, some of which are as follows: TP101, nomenclature 1PUSH1, which states that logic 1= command starts the push loop; TP105, nomenclature VLINKA, describes primary voltage; And TP110, the nomenclature 0RELA, describes the logic 0= release gate resident.
What is the acceptable power input for the grid pulse amplifier board?
The FGPA will accept a power input of 120 VrmsU20%, 50/60 Hz, up to about 350 VA. There are four different points on the FGPA model that can accept voltages, as shown below, P15 typically accepts 13.5-14.5 VDC of power without monitoring, P5 accepts voltages between 4.7 and 5.1 VDC, P90 accepts voltages greater than or equal to 81 VDC, and P40 accepts voltages greater than or equal to 25 VDC.
Which sources provide the grid current for the push-pull circuit on the FGPA board?
There are two different sources, namely the base of the gate and the back porch of the gate.
