>>>>>型号:DS200DSPCH1ADA 数字信号处理器控制板 控制系统兼容
【功能描述】

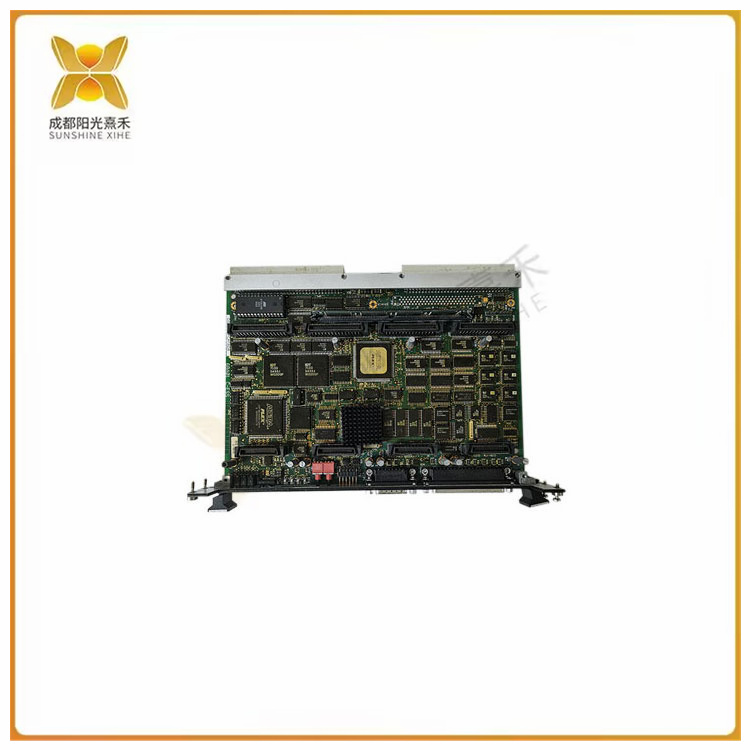

该DS200DSPCH1ADA是GE数字信号处理器控制板，与GE的Mark V Speedtronic控制系统兼容，用于蒸汽和燃气工业涡轮机。该DS200DSPCH1ADA提供通信带宽和处理能力，可直接控制系统的电源转换器应用和高性能驱动器。该板内置可扩展的输入和输出。
DS200DSPCH1ADA是一个具有多个子板的复杂电路板。一块板使用支架平行于板表面安装，另一块板垂直安装。其中一个子板用于提供信号的缩放、缓冲、隔离和调理，以便DS200DSPCH1ADA的数字信号处理器能够访问和使用这些信号。
DS200DSPCH1ADA的后边缘有两个背板连接器。该板内置一个带有多种I/O和LED指示灯的附加前面板。面板还有一个复位按钮和两个固定螺钉
>>>>>型号:DS200DSPCH1ADA 数字信号处理器控制板 控制系统兼容
【英文介绍】
The DS200DSPCH1ADA is a GE digital signal processor control board compatible with GE's Mark V Speedtronic control system for steam and gas industrial turbines. The DS200DSPCH1ADA provides communication bandwidth and processing power for direct control of the system's power converter applications and high-performance drivers. The board has built-in expandable inputs and outputs.
The DS200DSPCH1ADA is a complex circuit board with multiple subboards. One board is mounted parallel to the board surface using a bracket and the other board is mounted vertically. One of the subboards is used to provide scaling, buffering, isolation, and conditioning of the signals so that they can be accessed and used by the DS200DSPCH1ADA digital signal processor.
The DS200DSPCH1ADA has two backplane connectors on the back edge. An additional front panel with multiple I/O and LED indicators is built into the board. The panel also has a reset button and two setting screws
