【功能描述】

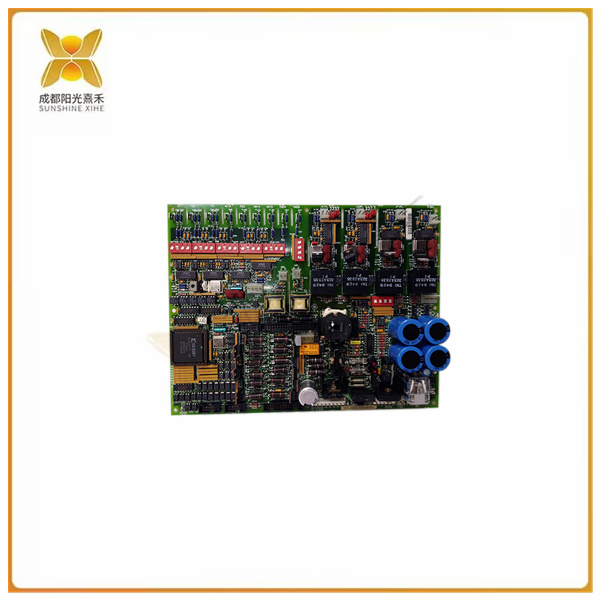

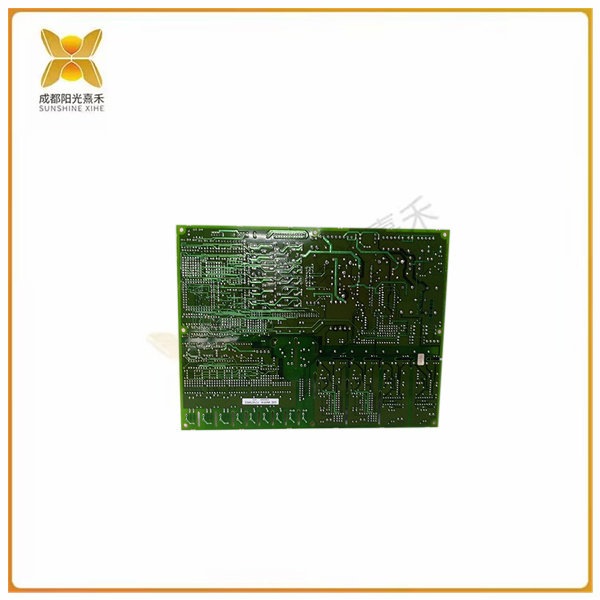

DS200DCFBG1BGBGB是通用电气为Mark V板系列制造的电源板。AC2000、CB2000、DC2000、FC2000、ME2000和EX2000系列机器可以将主板安装在驱动器中。安装后，此卡可以为驱动器提供控制级电源和机柜风扇电源。额定电压在38至115 VAC之间，可通过控制电源变压器直接提供给电路板。电路板的频率取决于输入电压，但范围为0至500 kHz。
该板具有许多电路，用于为电路板和已安装的驱动器供电。DS200DCFBG1BGBGB由电机励磁电源、驱动器、AC/DC监控和控制级电源电路组成。板上的12个跳线和7个DIP开关为用户提供了可配置的系统选项。保险丝开关诊断使用电路板上的两个LED和一个霓虹灯指示灯进行。三个保护保险丝可防止电源中断。可以使用电路板上集成的五个测试点来监控电压。
应遵循制造商提供的DS200DCFBG1BGBGB和已安装驱动器的安装和存储参数。这些将防止对两个单元造成任何意外或可预防的损坏。有关接线和安装电路板的完整指南，请参阅设备的手册和数据表。最初，该板和Mark V系列的技术支持由制造商通用电气提供。
>>>>>型号:DS200DCFBG1BGB 电源板 可防止电源中断
【英文介绍】
DS200CTBAG1ADD GE Mark V terminal board
DS200CTBAG1ADD is a terminal board designed for GE Mark V Speedtronic systems. The Speedtronic family was created by General Electric to control large and small gas and steam turbine systems. MKV can be designed with simplex or TMR/ triple modular redundancy architecture to meet the needs of interconnected turbine systems. The boards are no longer manufactured and distributed by GE, but can be purchased as fully tested and refurbished models through AX Control.
The DS200CTBAG1ADD is a long, narrow circuit board with only a few types of components. It drilled holes in each corner and long side to allow for the installation of hardware and other connections. Two of the holes are surrounded by conductive material. The board is marked with an identification code, including the board ID number and the company logo.
DS200CTBAG1ADD is an analog terminal module. It is usually located in the R5> Inside the kernel. The board has multiple connectors, including two COREBUS connectors (JAI and JAJ). The DS200CTBAG1ADD has two double-stacked terminal blocks located at the edge of a longboard with multiple connectors on each terminal block. There are 5 vertical pin cable connectors, 2 vertical pin connector connectors, and a 9-pin male serial connector.
Other components on the DS200CTBAG1ADD include a resistor network array, relays, transistors, more than two dozen metal oxide varistors (MOV), a dozen jumper switches, and many capacitors and resistors. For more information, see GE's original technical support offering.
