DS200ADGIH1AAA 辅助接口板 具有1个40针连接器

>>>>>型号:DS200ADGIH1AAA 辅助接口板 具有1个40针连接器 【功能描述】 DS200ADGIH1AAA技术规格制造者GE通用电气系列马克五世零件编号DS200ADGIH1AAA产品类型辅助接口板GE辅助接口板DS200ADGIH1AAA具有1个40针连接器、60个跳线和一个6针连接器。GE辅助接口板DS200ADGIH1AAA还装有多个测试点。该

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

>>>>>型号:DS200ADGIH1AAA 辅助接口板 具有1个40针连接器

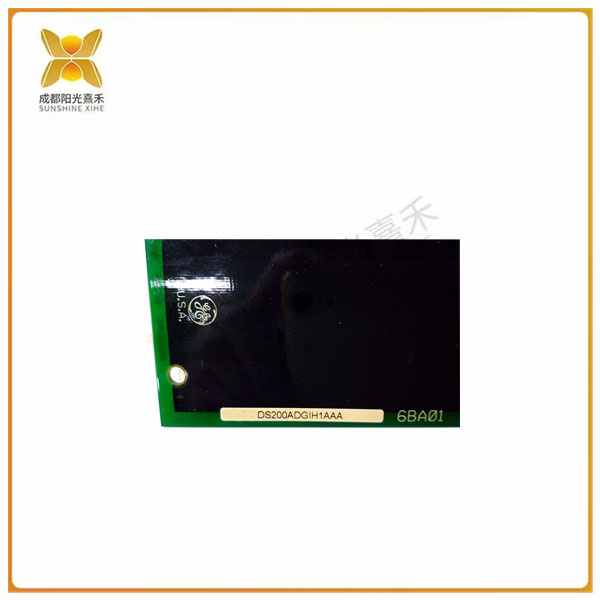

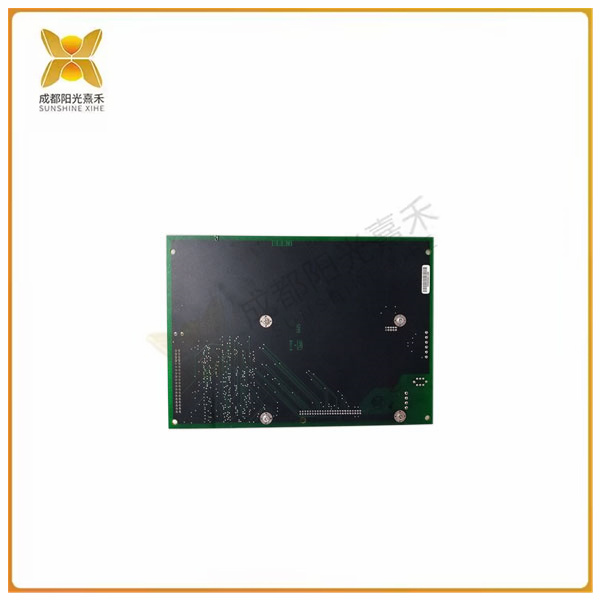

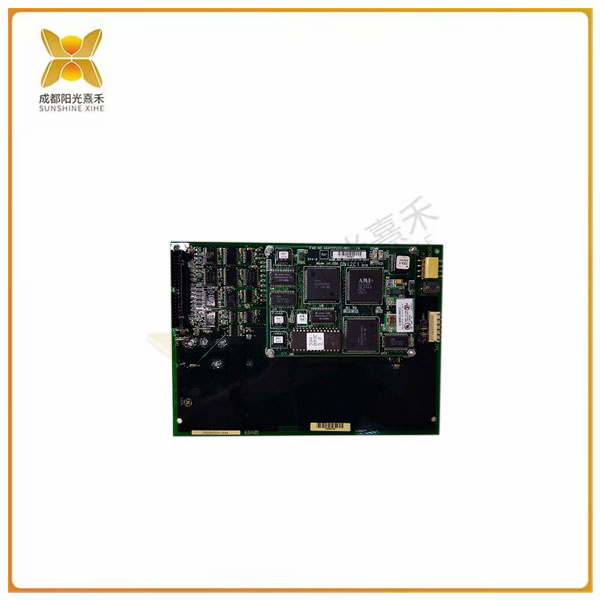

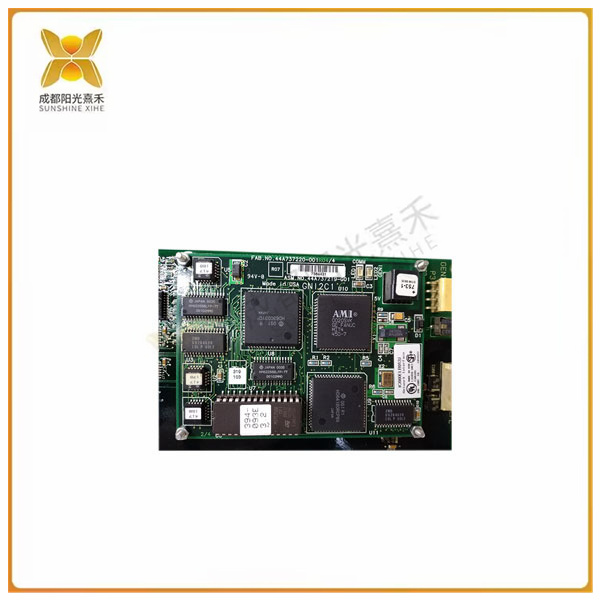

DS200ADGIH1AAA .jpg


【功能描述】





DS200ADGIH1AAA技术规格

制造者GE通用电气

系列马克五世

零件编号DS200ADGIH1AAA

产品类型辅助接口板

GE辅助接口板DS200ADGIH1AAA具有1个40针连接器、60个跳线和一个6针连接器。GE辅助接口板DS200ADGIH1AAA还装有多个测试点。该板的宽度为8英寸。DS200ADGIH1AAA的长度为6英寸,设计用于安装在驱动器的板柜中。它有四个螺钉,它们与板架上的一个位置对齐,以便用螺钉安装。

测试点提供了一种测试电路板上电路的方法。但是,只有合格的服务人员才能测试电路板。服务人员必须拥有针对任务进行校准和设计的测试设备。控件必须正确设置,探头必须设计为与测试仪一起使用。将板子放在平坦的表面上,并在板子下面放一个保护袋。

此外由于存在静电风险,服务人员必须始终佩戴腕带。正确安装腕带后,腕带的一端连接到您的手腕上,另一端夹在工作台或办公桌的金属腿上。它也可以连接到其他金属结构上。静电被吸引到金属地面上并离开电路板或您的身体。

减少静电积聚的另一个适当步骤是避免在将电路板握在手中时四处走动。行走的摩擦导致静电积聚。在凉爽干燥的天气条件下尤其如此。如果没有腕带,您也可以将装有板子的静电袋触摸到金属结构上,例如椅子或金属桌腿。


 >>>>>型号:DS200ADGIH1AAA 辅助接口板 具有1个40针连接器

DS200ADGIH1AAA .jpg


英文介绍



DS200ADGIH1AAA Technical specifications

Manufacturer GE General Electric

Series Mark V

Part number DS200ADGIH1AAA

Product Type Auxiliary interface board

The GE auxiliary interface board DS200ADGIH1AAA has one 40-pin connector, 60 jumpers, and one 6-pin connector. The GE auxiliary interface board DS200ADGIH1AAA is also equipped with multiple test points. The board is 8 inches wide. The DS200ADGIH1AAA has a length of 6 inches and is designed to be installed in the driver's board cabinet. It has four screws, which are aligned with a position on the board frame for mounting with screws.

A test point provides a method for testing a circuit on a board. However, only qualified service personnel can test the circuit board. Service personnel must have test equipment that is calibrated and designed for the task. The controls must be set up correctly and the probe must be designed to work with the tester. Place the board on a flat surface and place a protective bag under the board.

In addition, service personnel must always wear wristbands due to the risk of static electricity. When the wristband is properly installed, one end of the wristband is attached to your wrist and the other end clips to the metal leg of your workbench or desk. It can also be attached to other metal structures. Static electricity is attracted to the metal floor and leaves the circuit board or your body.

Another appropriate step to reduce static buildup is to avoid walking around while holding the board in your hands. The friction of walking causes static electricity to build up. This is especially true in cool, dry weather conditions. If you don't have a wristband, you can also touch the static bag with the board onto a metal structure, such as a chair or metal table leg.

>>>>>型号:DS200ADGIH1AAA 辅助接口板 具有1个40针连接器
