>>>>>型号:IS210AEBIH1BED 电路板组件 三重模块化冗余
【功能描述】
IS210AEBIH1BED是通用电气创建的电路板组件，是Mark VI系统的一部分。MKVI是GE发布的最后一批用于管理重型蒸汽/燃气轮机的Speedtronic系统之一。这发生在1990年代，经过对Speedtronic系列几十年的研究和开发。MKVI是一种TMR（三重模块化冗余）架构系统，也可以设计为单工系统。它包括一个基于Windows的PC HMI（人机界面），加载了专为管理涡轮机而设计的软件，例如Control System Toolbox和GE的CIMPLICITY图形。

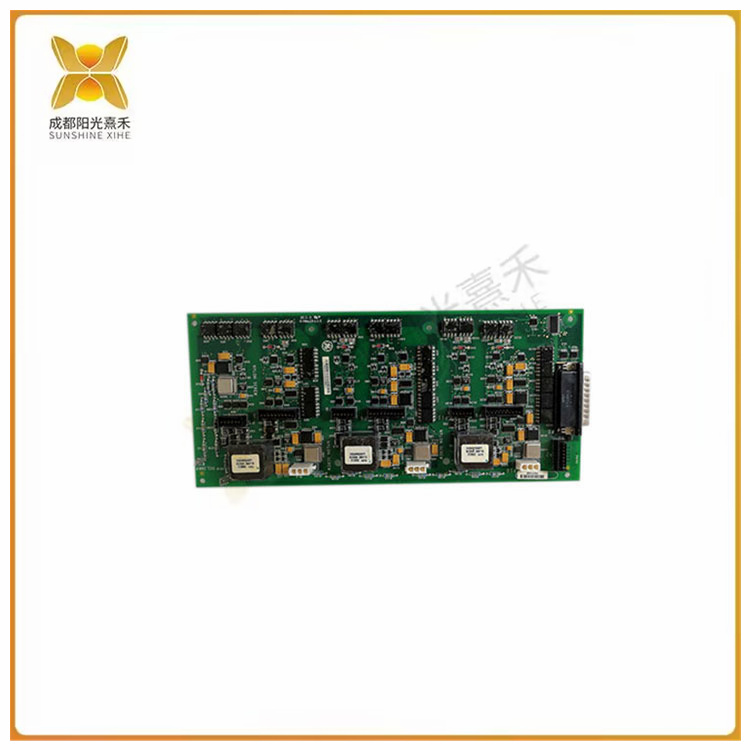

IS210AEBIH1BED是一个矩形的板，在每个角上都钻了孔。沿着电路板的每个长边都有两个额外的工厂钻孔。该板有一个从前边缘延伸的小矩形臂。它有两个穿过其表面的导电端子。主板的左侧短边由直角电缆连接器填充。这被标记为“P1”。位于其侧面的“P2”连接器是多针垂直公连接器。该板装有9个附加连接器，包括从5引脚到10引脚的公垂直引脚连接器以及3位母插头。该板还有一个位于右上角的刺接连接器。
该IS210AEBIH1BED由三个变压器组成。它有一百多个集成电路。这包括几个振荡芯片。安装程序可以在用户指南和手册等出版物中找到。请遵循制造商关于安全程序的建议。
>>>>>型号:IS210AEBIH1BED 电路板组件 三重模块化冗余
【英文介绍】
The IS210AEBIH1BED is a circuit board assembly created by General Electric as part of the Mark VI system. The MKVI was one of the last Speedtronic systems released by GE for the management of heavy-duty steam/gas turbines. This happened in the 1990s, after decades of research and development on the Speedtronic series. MKVI is a TMR (Triple Modular Redundancy) architecture system that can also be designed as a simplex system. It includes a Windows-based PC HMI (Human Machine Interface) loaded with software designed for managing turbines, such as Control System Toolbox and GE's CIMPLICITY graphics.
The IS210AEBIH1BED is a rectangular plate with holes drilled in each corner. There are two additional factory holes along each long side of the board. The board has a small rectangular arm extending from the front edge. It has two conductive terminals that pass through its surface. The left short side of the motherboard is filled with right-angle cable connectors. This is labeled "P1". The "P2" connector located on its side is a multi-pin vertical male connector. The board is equipped with nine additional connectors, including male vertical pin connectors from 5 to 10 pins, and three female plugs. The board also has a splice connector located in the upper right corner.
The IS210AEBIH1BED consists of three transformers. It has more than a hundred integrated circuits. This includes several oscillating chips. Installers can be found in publications such as user guides and manuals. Follow the manufacturer's recommendations for safety procedures.
