>>>>>型号:IS200WETBH1ABA 组件密集的电路板 监控火焰检测
【功能描述】
IS200WETBH1BAA是GE为Mark VI系统创建的组件。Mark VI是Speedtronic系列的一部分，该系列是通用电气在1960年代和1990年代之间开发的燃气/蒸汽轮机管理系列，专注于通过使用可靠的管理来提高其相关涡轮机系统的运行效率。MKVI内置通用I/O和特定应用I/O。它们控制和监控火焰检测、振动、轴电压建立和正确同步等问题。

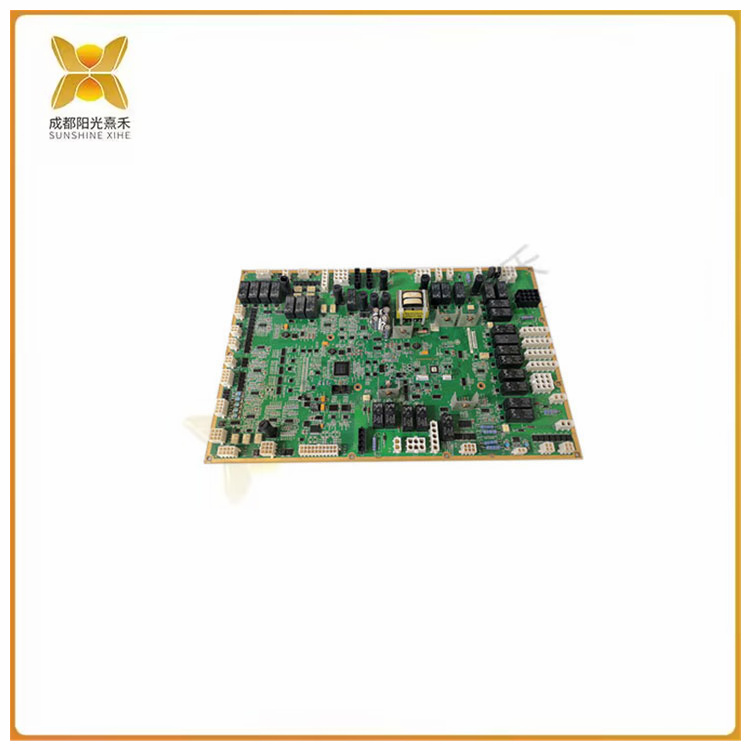

IS200WETBH1BAA是组件密集的电路板。该板的边缘有一个定期钻孔的裸露铜带工厂.该板的65+个插头和连接器中的大多数都沿板边缘放置。这些插头包括两个位置到二十个位置的插头。母插孔的范围从四个位置到十二个位置。内板还具有三个垂直公连接器;P1是10针连接器，P2是6针接头，P3是4针接头。
该IS200WETBH1BAA具有单个变压器组件。该板有30多个不同类型的继电器。有保险丝（10）、跳线（2）、散热器（7）、稳压器（9）、线圈电感器、TP测试点和单个开关组件。该板还具有50多个集成电路。该板使用压敏电阻和高压电解电容器。有些电阻器由金属膜制成。可以使用用户指南、数据表或手册找到IS200WETBH1BAA的安装程序。请遵循所有安全建议。
>>>>>型号:IS200WETBH1ABA 组件密集的电路板 监控火焰检测
【英文介绍】
IS200WETBH1BAA is a GE component created for the Mark VI system. The Mark VI is part of the Speedtronic series, a family of gas/steam turbine management developed by General Electric between the 1960s and 1990s focused on improving the operational efficiency of its associated turbine systems through the use of reliable management. MKVI has both generic and application-specific I/O built in. They control and monitor issues such as flame detection, vibration, shaft voltage establishment and correct synchronization.
IS200WETBH1BAA is a component-dense circuit board. The edge of the plate has a regularly drilled exposed copper strip factory. Most of the board's 65+ plugs and connectors are placed along the edge of the board. These include plugs from two positions to twenty positions. The female jack ranges from four to twelve positions. The inner plate also has three vertical male connectors; P1 is a 10-pin connector, P2 is a 6-pin connector, and P3 is a 4-pin connector.
The IS200WETBH1BAA has a single transformer assembly. The board has more than 30 different types of relays. There are fuses (10), jumpers (2), heat sinks (7), voltage regulators (9), coil inductors, TP test points, and individual switch assemblies. The board also has more than 50 integrated circuits. The plate uses a varistor and a high voltage electrolytic capacitor. Some resistors are made of metal film. The installer for IS200WETBH1BAA can be found using the user guide, data sheet, or manual. Please follow all safety recommendations.
>>>>>型号:IS200WETBH1ABA 组件密集的电路板 监控火焰检测
