>>>>>型号:IS200EGPAG1BCA 连接显示器输出 驱动板
【功能描述】
S200EGPAG1BCA GE IS200EGPAG1BCA
IS200EGPAG1BCA简单的说驱动板就相当于连接主机和显示器的一个元件，主机通过驱动板输入信息然后通过驱动板连接显示器输出。
IS200EGPAG1BCA驱动板上比较重要的集成电路是主控芯片（Sealer芯片）和微控制器（MCU）。IS200EGPAG1BCA驱动板的输入接口通过连接线与计算机主板显卡主控芯片相连，输出接口通过一条或者两条信号传输排线与液晶面板相连。
IS200EGPAG1BCA是一款专门为励磁机门设计的脉冲放大器板。它放大脉冲信号，以确保励磁机系统中的门正常工作。
GE EX2100 IS200EGPAG1BCA励磁机门脉冲放大器板用于将控制连接到控制系统中的功率桥。它负责连接电流传导反馈、温度监测和桥接气流。
门脉冲放大器板号IS200EGPAG1BCA位于电源转换柜中，可连接到电源转换模块。该模块是在桥架和保护板/模块下方标记的板之一，虽然该板可以独立运行，但通常需要从其中一个EPDM模块获取电源。
IS200EGPAG1BCA板接收来自安装在SCR散热器上的两个热开关的反馈。这些开关在报警级别和跳闸级别触发和断开，并直接连接到IS200EGPAG1BCA。开关在触发前必须达到的温度为190°F的跳闸水平和170°F的报警水平。如果只有一个开关打开，则发生了关于电桥的过热警报，如果两个开关都打开，则表明发生了跳闸和故障，则开关可以单独打开或一起打开。
>>>>>型号:IS200EGPAG1BCA 连接显示器输出 驱动板
【英文介绍】
S200EGPAG1BCA GE IS200EGPAG1BCA
IS200EGPAG1BCA Simply said that the driver board is equivalent to a component connecting the host and the display, the host input information through the driver board and then through the driver board connected to the display output.
The more important integrated circuits on the IS200EGPAG1BCA driver board are the main control chip (Sealer chip) and the microcontroller (MCU). The input interface of the IS200EGPAG1BCA driver board is connected to the main control chip of the computer motherboard graphics card through a connection line, and the output interface is connected to the LCD panel through one or two signal transmission lines.

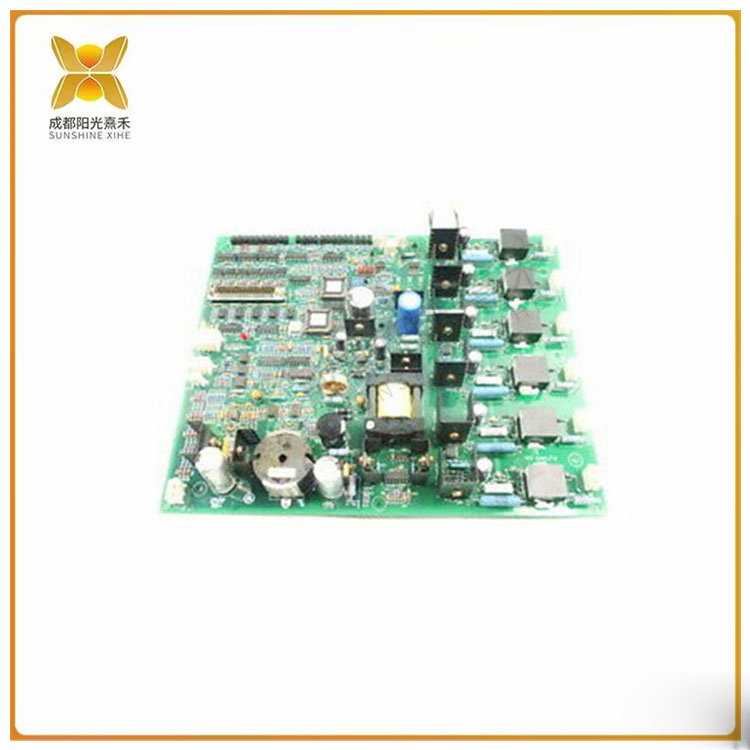

The IS200EGPAG1BCA is a pulse amplifier board specially designed for exciter gates. It amplifies the pulse signal to ensure that the gate in the exciter system works properly.
The GE EX2100 IS200EGPAG1BCA exciter gate pulse amplifier board is used to connect the control to the power bridge in the control system. It is responsible for connecting current conduction feedback, temperature monitoring and bridging airflow.
The gate pulse amplifier board number IS200EGPAG1BCA is located in the power conversion cabinet and can be connected to the power conversion module. This module is one of the boards marked below the bridge and the protection board/module, and although the board can operate independently, it usually requires power from one of the EPDM modules.
The IS200EGPAG1BCA board receives feedback from two thermal switches mounted on the SCR radiator. These switches trigger and disconnect at alarm and trip levels and are directly connected to the IS200EGPAG1BCA. The temperature the switch must reach before triggering is a trip level of 190°F and an alarm level of 170°F. If only one switch is open, an overheating alarm about the bridge has occurred, if both switches are open, it indicates that a trip and a fault has occurred, and the switches can be opened separately or together.
