>>>>>型号:IS220PPROS1B 涡轮机专用的I/O模块 提供直接接口
【功能描述】
IS220PPROH1A是涡轮机专用的I/O模块。它旨在为特定的涡轮机现场设备提供直接接口。这种设置消除或减少了以前连接到现场设备所需的大部分仪器，还提高了运行可靠性并减少了长期维护。该IS220PPROH1A通常与TREAH_A端子板配合使用，用于航改型涡轮机紧急跳闸应用。该组件可以连接到栅栏式或箱式接线端子。该IS220PPROH1A具有电压检测的现场接线限制，将电缆长度限制为1,000英尺的18 AWG接线。需要注意的是，将BPPB P-Pack与BPPC P-Pack交换时，无法自动重新配置IS220PPROH1A。
IS220PPROH1A内置一个前面板，上面标有组件ID号和几个LED指示灯。它们成对放置在前面板上。第一对标记为PWR/ATTN，第二对标记为LINK/TxRx和ENET 1，第三对标记为LINK/TxRx和ENET2。最后一个组件位于面板底部;这被标记为IR端口。
IS220PPROH1A接受三个速度信号。这包括减速、加速和超速。该组件还具有实现超速的硬件。该套件通过一组全面的反馈信号监控所选脱扣板的状态和运行。该套件支持TMR和单工备份保护。
该IS220PPROH1A内置高速处理器和两个完全独立的10/100以太网端口。该电池组具有硬件复位电路和看门狗定时器。温度由内部传感器监控。
>>>>>型号:IS220PPROS1B 涡轮机专用的I/O模块 提供直接接口
【英文介绍】

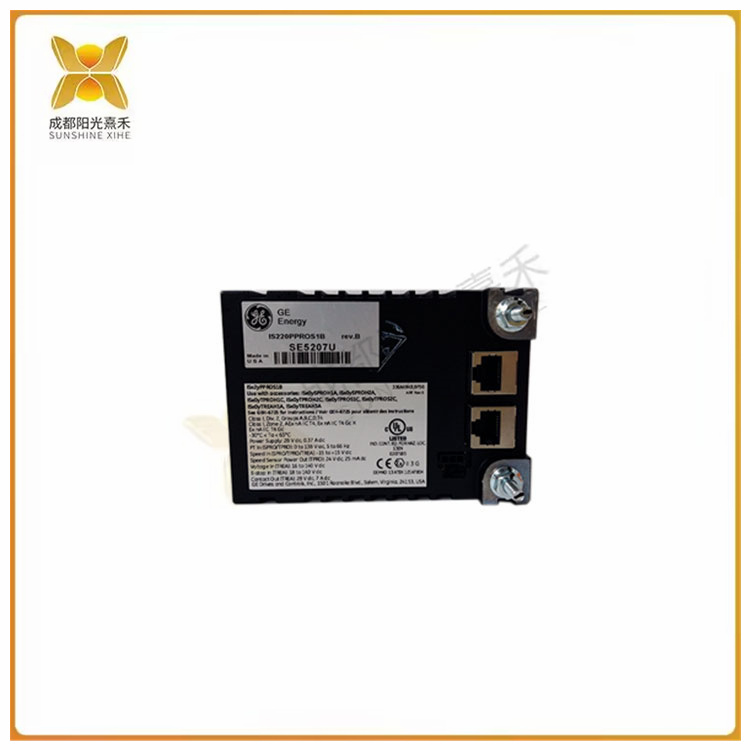

The gas turbine control model IS220PPROS1B is from the General Electric Speedtronic Fanuc Mark VIe series PROFIBUS DPM master station gateway input/output module. This unit is usually paired with the Accessory ID terminal board IS200SPIDG1A. This allows the PPRF unit to be connected and installed in a normal or non-hazardous location.
The rated power supply range is 27.4-28.6V dc.
At AX Control Inc., we buy, sell, and repair many obsolete and/or damaged models that have been discontinued by their original manufacturers, so your company's factory floor can be back up and running quickly and inexpensively. For any other product specifications, please refer to the manual included with this part.
>>>>>型号:IS220PPROS1B 涡轮机专用的I/O模块 提供直接接口
