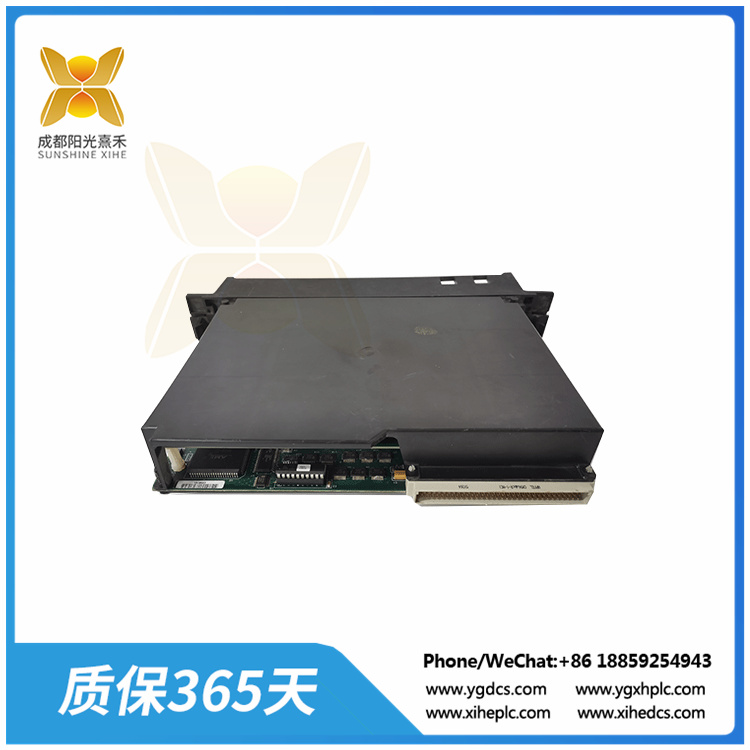

IC693APU300K | 90-30系列| 高速计数器 (HSC) 模块
零件编号IC693APU300
系列 90-30系列
产品描述 高速计数器 (HSC) 模块
输入通道数 十二 (12) 个源输入
输入通道数 十二 (12) 个正逻辑输入
产品描述 高速计数器模块
输入电压 5 伏直流电;10-30 伏直流电
输入信号电压 5 伏直流电;10VDC - 30 伏直流电
最大计数率 80 千赫兹
输入频率 8 千赫兹
最小计数率 20 千赫兹
输入计数频率 80 千赫兹
输出额定值 最大 10 至 30 VDC @ 500 mA; 4.75 至 6 VDC @ 20 mA(最大值)
不。输出通道数 四 (4) 个正逻辑输出
GE IC693APU300高速计数器模块是GE Fanuc的单插槽计数器模块。它适用于涡轮流量计、仪表证明、速度测量、物料搬运、运动控制和过程控制等应用。该计数器模块的主要优点是它能够处理额定频率高达 80 千赫兹的快速信号脉冲。该高速计数器模块可以检测输入和输出,并计算输入和输出响应,而无需与CPU通信。IC693APU300高速计数器模块可以向上和向下计数,并且可以计算 2 个变化值之间的差值。为了指示运行状态和配置参数的状态,模块的顶面有 2 个绿色 LED。
Part number IC693APU300
Series 90-30 series
Description High Speed Counter (HSC) module
Number of input channels Twelve (12) source inputs
Number of input channels Twelve (12) positive logic inputs
Product Description High speed counter module
Input voltage 5 v DC; 10-30 volts direct current
Input signal voltage 5 v DC; 10VDC - 30 volts direct current
Maximum count rate 80 KHZ
Input frequency 8 KHZ
Minimum count rate 20 KHZ
Input count frequency 80 KHZ
Output rating Max 10 to 30 VDC @ 500 mA; 4.75 to 6 VDC @ 20 mA (Max)
Nooooo. Number of output channels Four (4) positive logic outputs
The GE IC693APU300 high speed counter module is a single slot counter module for GE Fanuc. It is suitable for applications such as turbine flow meters, instrument proof, speed measurement, material handling, motion control and process control. The main advantage of this counter module is its ability to handle fast signal pulses with rated frequencies up to 80 KHZ. This high-speed counter module can detect inputs and outputs and calculate input and output responses without having to communicate with the CPU. The IC693APU300 high-speed counter module can count up and down, and can calculate the difference between 2 changing values. In order to indicate the status of operation and configuration parameters, there are 2 green leds on the top surface of the module.
