>>>>>型号:IS200VAICH1DAB TBAIH1C 或 STAI 端子板兼容
【功能描述】
IS200VAICH1DAB型号有换能器/变送器;它们做什么，或者它们由什么提供动力？
IS200VAICH1DAB上的变送器/变送器可以由 24 VDC 的控制系统电源供电，也可以独立供电。它们用于监控VAIC板上的每个输出;如果 Mark VI 处理器的命令无法立即清除故障，模型上的自杀继电器将断开相应的输出。

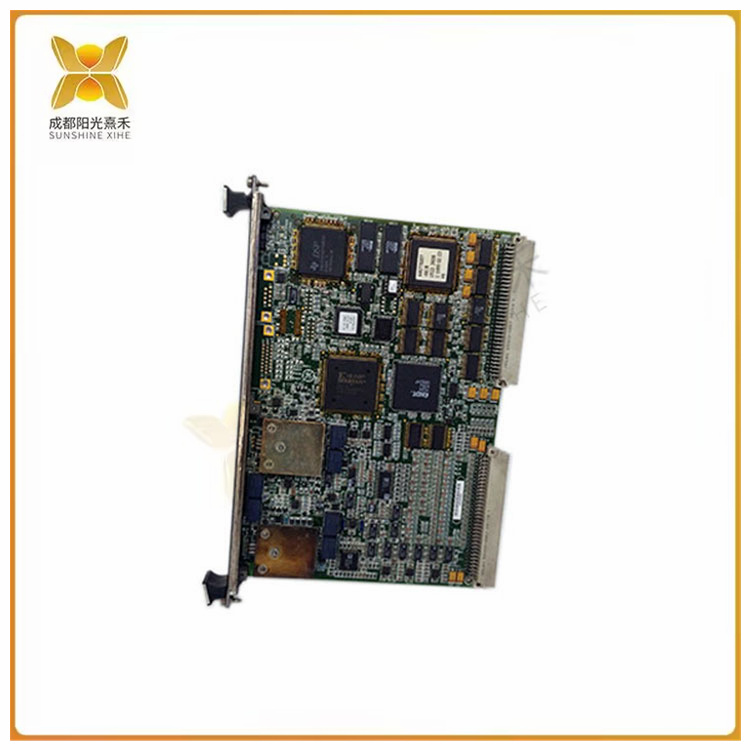

什么是IS200VAICH1DAB模型？
IS200VAICH1DAB型号是模拟输入/输出板。它用于接受多达 20 个输入并控制多达 4 个输出，具有两个转换器（A/D 和 D/A）、信号调理和一个模拟多路复用器。
产品描述
IS200VAICH1DAB型号由通用电气制造，用作模拟输入/输出板，用于 TMR 或单工应用中的 Mark V 系统。当用于 TMR 系统配置时，连接的端子板（TBAIH1C 或 STAI 板）上的输入信号将扇出到三个 VME 机架 T、R 和 S，每个机架都包含一个 VAIC 板。VAIC板上的输出信号将由专有电路驱动，使用所有可用的VAIC板产生所需的电流。如果 VME 机架上的任何IS200VAICH1DAB型号发生故障，则故障的 VAIC 型号将从输出中删除，其余的 VAIC 板可以继续提供正确的电流。当该模型用于单工配置时，连接的端子板将为其中一个 VAIC 型号提供输入，为输出提供所有电流。
在IS200VAICH1DAB型号运行期间，它将控制四个模拟输出，并接受多达二十个模拟输入。该模型具有模拟多路复用器、A/D 转换器、D/A 转换器和信号调理。该模型中有两个模拟输入，±1 mA 或 4-20 mA，由连接的端子板上的跳线选择。模拟输出电路是分开的;两个输出可以配置为0-200 mA或4-20 mA，其他输出仅为4-20 mA。IS200VAICH1DAB型号的输入和输出都包含高抑制电路，可防止高频噪声和浪涌。
>>>>>型号:IS200VAICH1DAB TBAIH1C 或 STAI 端子板兼容
【英文介绍】
IS200VAICH1DAB model has transducer/transmitter; What do they do, or are they powered by?
The transmitter/transmitter on the IS200VAICH1DAB can be powered by a 24 VDC control system power supply or can be powered independently. They are used to monitor each output on the VAIC board; If the command of the Mark VI processor does not clear the fault immediately, the suicide relay on the model will disconnect the corresponding output.
What is the IS200VAICH1DAB model?
The IS200VAICH1DAB model is an analog input/output board. It is used to accept up to 20 inputs and control up to 4 outputs, with two converters (A/D and D/A), signal conditioning, and an analog multiplexer.
Product description
The IS200VAICH1DAB model is manufactured by General Electric and is used as an analog input/output board for Mark V systems in TMR or simplex applications. When used in a TMR system configuration, the input signals on the connected terminal boards (TBAIH1C or STAI boards) are fanned out to three VME racks T, R, and S, each containing a VAIC board. The output signal on the VAIC board will be driven by a proprietary circuit, using all available VAIC boards to generate the required current. If any IS200VAICH1DAB model on the VME rack fails, the faulty VAIC model will be removed from the output and the remaining VAIC boards can continue to provide the correct current. When this model is used in a simplex configuration, the connected terminal boards will provide the input to one of the VAIC models, providing all the current to the output.
During the operation of the IS200VAICH1DAB model, it will control four analog outputs and accept up to twenty analog inputs. The model has an analog multiplexer, A/D converter, D/A converter, and signal conditioning. There are two analog inputs in this model, ±1 mA or 4-20 mA, selected by jumpers on the connected terminal board. The analog output circuit is separate; Two outputs can be configured to be 0-200 mA or 4-20 mA, and the other outputs are only 4-20 mA. Both the input and output of the IS200VAICH1DAB model contain high suppression circuits that protect against high-frequency noise and surges.
