>>>>>型号:IS200TVIBH2BBB 端子板的设备 为可变电阻器
【功能描述】
IS200TVIBH2BBB是一种称为端子板的设备。该IS200TVIBH2BBB是通用电气或通用电气制造的Mark VI系列的众多组件之一。Mark VI和Mark系列中的其他系列已被用于管理燃气轮机和蒸汽轮机的所有过程1969年，当Mark I首次推出时。

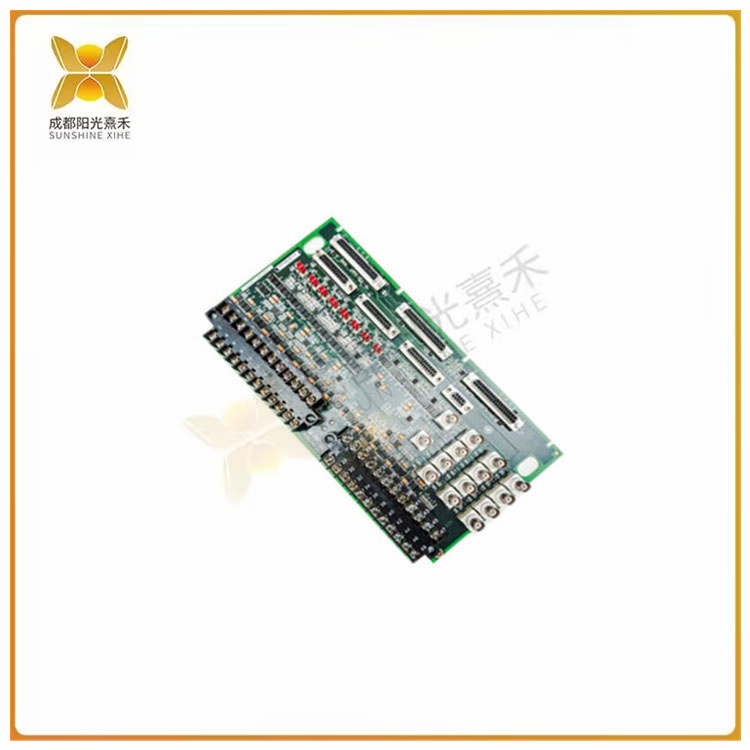

IS200TVIBH2BBB是一个长方形的长印刷电路板。三（3）个长绿色接线端子位于IS200TVIBH2BBB的左边缘。每个接线端子都包含多个端子，这些端子很小，由银色金属制成。紧挨着IS200TVIBH2BBB下半部分接线端子的是一组粉红色电容器。这些电容器又小又圆。这些电容器已订购成两（2）排，每排至少二十（20）个电容器。三（3）个额外的粉红色电容器位于IS200TVIBH2BBB下边缘的中心附近。在接线端子旁边的IS200TVIBH2BBB的上半部分是一系列跳线引脚。这些跳线引脚排成两（2）排，每排十二（12）组。每组包含三（3）个小金属跳线引脚。IS200TVIBH2BBB上有两个电位器，有时交替称为可变电阻器。其中一（1）个电位器放置在中心的IS200TVIBH2BBB顶部附近，另一个位于IS200TVIBH2BBB底部的正对面。电位器是实心的，颜色为浅灰色。
>>>>>型号:IS200TVIBH2BBB 端子板的设备 为可变电阻器
【英文介绍】
The IS200TVBAH2ACC board is a group isolated contact input manufactured by General Electric as part of the Mark VIe system. The main feature of the board is to accept up to 24 dry contact inputs, which are connected to two barrier type terminals. Noise suppression circuit is mainly used to prevent high frequency noise and surge. The board can be used for triple modular redundancy (TMR), dual and simplex applications.
Because the board can be used for a variety of applications, multiple connections with the IS200TVBAH2ACC board can be made depending on the application used. When used in TMR systems, TBCI boards will be connected to I/O processors using JS1, JT1, and JR1 connectors. When used in complex systems, the I/O processor will be connected to a single JR1 connector. Since this model is used in the Mark VIe system, the I/O package will be connected to the TBCI and then to the side mount bracket.
The IS200TVBAH2ACC board can perform many diagnostic tests. For example, when the input of the board does not match the voting values of the three boards used in the TMR system, a fault is generated to ensure that the fault is fixed. Note that there are no hardware Settings or jumpers on the board.
