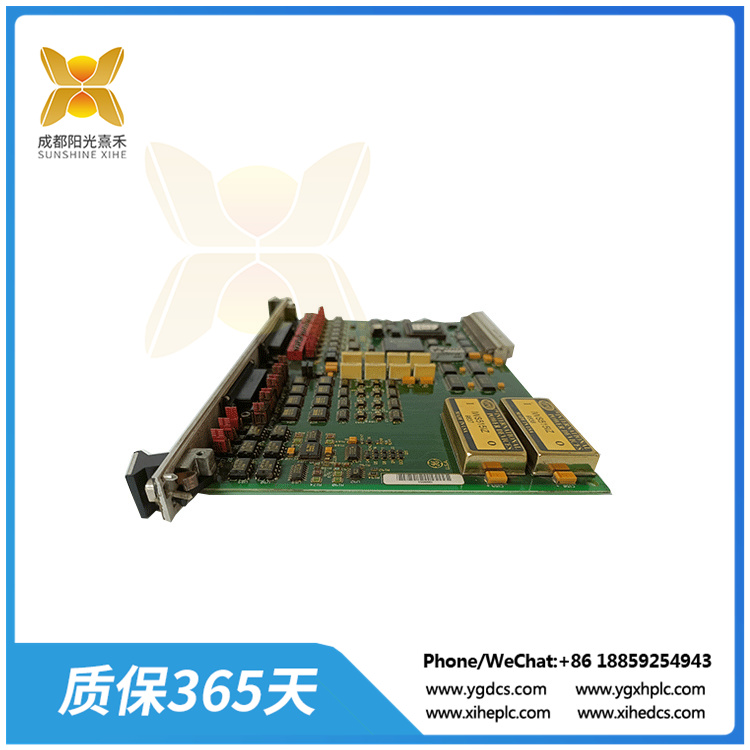

DS200TCQCG1AJD | 输入/输出网格叉模块 | 369B1860G0030

　　型号:DS200TCQCG1AJD

　　分类:输入/输出网格叉模块

　　保证:一年保修

　　产品描述

　　GE RST溢出板DS200TCQCG1AHD配备了24个跳线和3个40针连接器。 它还具有三个34针连接器和一个16针连接器。 分配给16针连接器的ID是JC。 分配给40针连接器的id是JFF, JE和6PL。 GE RST溢流板上的24条跳线在GE RST溢流板的配置中起着重要的作用

　　DS200TCQCG1AHD董事会。 跳线有两个位置，安装人员可以在其中设置跳线。 根据不同的选择，委员会将以不同的方式处理这些信息。 跳线定义为3针跳线。 也就是说，跳线可以覆盖引脚1和2或引脚2和3。 跳线在它所覆盖的两个引脚之间进行电接触。 有些跳线不是由安装人员设置的，而是工厂在产品测试时使用的。 在这种情况下，一个位置由制造商使用，另一个位置在正常操作期间使用。

　　DS200TCQCG1AJD跳线是在电路板安装到驱动程序之前设置的，并且需要安装手册中提供的信息来了解可用的配置选项。 通常，安装现场的工程师和管理人员将与安装人员进行协商。 通过这种通信，安装人员知道工程师想要如何设置跳线。

　　PCB连接器包括:

　　点刺式连接器

　　插头

　　直角连接器

　　DS200TCQCG1AJD | Input/Output grid fork module | 369B1860G0030

　　Model :DS200TCQCG1AJD

　　Category: Input/Output grid fork modules

　　Guarantee: One year warranty

　　Product description

　　The GE RST overflow board DS200TCQCG1AHD is equipped with 24 jumpers and 3 40-pin connectors. It also features three 34-pin connectors and one 16-pin connector. The ID assigned to the 16-pin connector is JC. The ids assigned to 40-pin connectors are JFF, JE, and 6PL. The 24 jumpers on the GE RST overflow plate play an important role in the configuration of the GE RST overflow plate

　　DS200TCQCG1AHD Board of Directors. The jumper has two locations where the installer can set the jumper. Depending on the options, the Committee will handle this information in different ways. The jumper is defined as a 3-pin jumper. That is, the jumper can cover pins 1 and 2 or pins 2 and 3. The jumper makes electrical contact between the two pins it covers. Some jumpers are not set by the installer, but are used by the factory during product testing. In this case, one location is used by the manufacturer and the other is used during normal operation.

　　The DS200TCQCG1AJD jumper is set before the board is installed to the driver, and the information provided in the installation manual is required to understand the configuration options available. Typically, engineers and managers at the installation site will consult with the installer. Through this communication, the installer knows how the engineer wants to set up the jumper.

　　PCB connectors include:

　　Point connector

　　plug

　　Right Angle connector
