>>>>>型号:IS200SRTDH2ACB 印刷电路板或PCB 具有尺寸不等的电子元件
【功能描述】
IS200SRTDH2ACB是由通用电气或GE创建的一种印刷电路板或PCB，是Mark VI系列的一部分。Mark VI是通用电气Mark系列的最新版本。Mark VI和Mark系列中的其他系列旨在管理和自动化燃气轮机和蒸汽轮机系统的过程。这些产品被用于全球许多不同的行业。

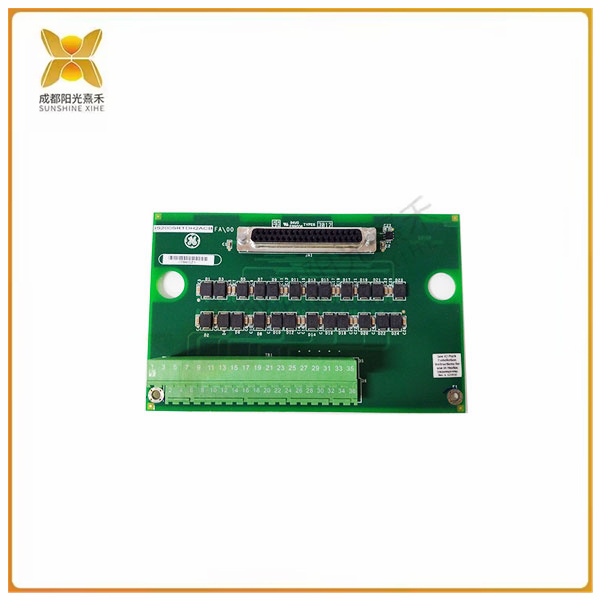

IS200SRTDH2ACB是一种相对较小的印刷电路板，具有尺寸不等的电子元件。两（2）个大型接线端子位于IS200SRTDH2ACB的底部边缘，一个位于另一个的顶部。每个接线端子包含十八（18）个端子，总共三十六（3）个端子。这些银色金属端子包含在接线端子内，编号从一（1）到三十六（36）个，带有白色文字。一（1）个大连接器端口连接到IS200SRTDH2ACB的上边界。此连接器端口用于将额外的组件或其他板连接到IS200SRTDH2ACB。IS200SRTDH2ACB的中心由二极管和电容器组成。二极管的形状像黑色矩形。有二十四个二极管，分为两（2）个水平行，每个十二（12）个二极管。每个二极管旁边是一（1）个或两（2）个矩形小电容器。IS200SRTDH2ACB设备的全名已印在IS200SRTDH2ACB的左上角。GE的符号已印在该部件号下方的电路板上。
>>>>>型号:IS200SRTDH2ACB 印刷电路板或PCB 具有尺寸不等的电子元件
【英文介绍】
IS200EGDMH1AFF is an exciter field grounding detection module, which is the functional abbreviation of EGDM.
During the installation, the module will be installed on the backplane of the excitation power supply or the terminal block of the exciter. It is used to detect the ground status of the excitation magnetic field and output the detection result to the control system or display instrument to realize the ground protection and control of the excitation.
It should be noted that the above information is for reference only, if necessary, it is recommended to consult professional and technical personnel.
The difference between IS200EGDMH1ADF and IS200EGDMH1AFF is that the former is the excitation field grounding detection module, and the latter is the excitation field grounding detection module.
During the installation process, the former is installed on the backplane of the excitation power supply or the terminal block of the exciter, which is used to detect the ground state of the excitation magnetic field, and output the detection result to the control system or display instrument to realize the ground protection and control function of the exciter. The latter is mounted on the excitation power backplane rack, close to the EPSM module, and operates on stand-alone systems, which require one EGDM, and redundant systems, which require three EGDM modules.
